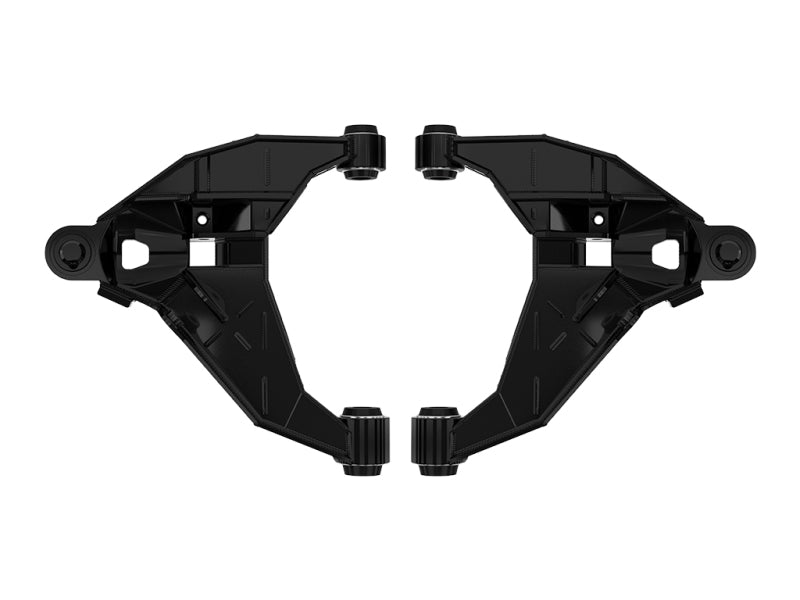

ICON 05-23 Toyota Tacoma Lower Control Arm Kit

The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs. Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail. CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models. Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling. Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance. To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use. The inner pivot bushings are bonded polyurethane to the outer sleeve and unbonded inner sleeve to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range. Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life. With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system.

• Angled front plates and relocated steering stops help arms slide over obstacles and prevent trail hang ups
• Metal on metal, greaseable lower ball joints for longevity and noise free operation
• Pocketed lower plates allow drainage and easy access to coilover mounting hardware
• ICON secondary shock compatibility with ICON S2 Shock Hoops (sold separately)
• Fully welded boxed steel construction with internal ribs for maximum strength
• CNC machined forged ball joint housings ensure strength and CV boot clearance
• Fabricated components covered by ICON’s Limited Lifetime Warranty
• Semi-gloss black powder coat finish for corrosion resistance
• Maintenance free bonded polyurethane bushings
• CNC laser cut and brake formed steel plate
• High clearance, stock width design
• Recessed coilover mounting points

This Part Fits:
