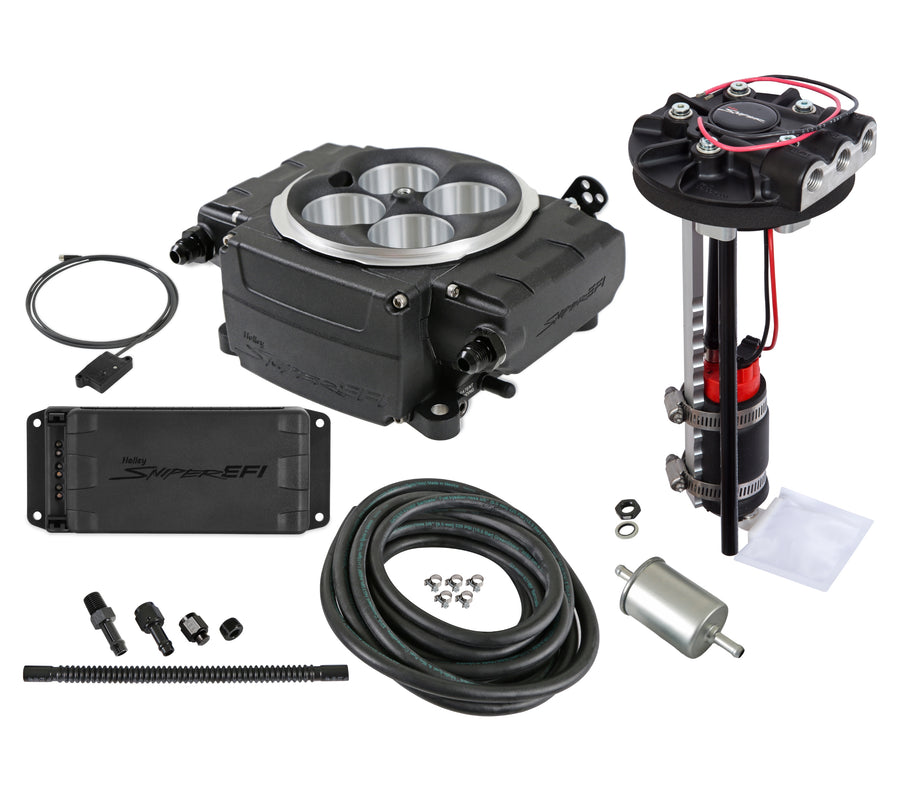

The Sniper 2 EFI return style drop-in module with PDM and Bluetooth swaps a 4150-flange carburetor for a complete self-tuning fuel injection system, controlled from a smartphone via the Bluetooth module instead of a handheld display. The included Power Distribution Module (PDM) isolates the core EFI and ignition wiring into one location, so only a battery and switched 12-volt source are needed to power the PDM and Sniper EFI.
Key Features:
- Bluetooth module allows tuning and monitoring from an iOS or Android phone instead of a dedicated handheld display
- Optional Power Distribution Module (PDM) included, simplifying wiring — slide stripped wire ends under the positive lock connector and tighten the set screw
- Calibration wizard builds a base map and begins self-tuning from a few engine questions — no laptop required
- All-new throttle body design with redesigned throttle shaft and plate geometry for smoother throttle feel
- Onboard contactless magnetic TPS sensor for accurate throttle position readings
- Included genuine Bosch LSU 4.9 wideband oxygen sensor provides real-time fuel map learning
- Clamp-on oxygen sensor kit with stainless T-bolt clamps and a weldable O2 flange for a leak-free install
- "Hidden Harness" wiring exits from the rear of the throttle body for a clean appearance
- Next-generation mil-spec M8 positive lock connectors for CAN1/CAN2
- Main harness includes plug-and-play HyperSpark distributor support for integrated timing control
- Integrated transmission kickdown provisions for GM TH350/400, 200-4R/700R4, and Ford C4/C6
- Cast-in fuel crossover from the primary to secondary fuel rail
- Next-generation ECU with improved RF noise and interference resistance
- Sniper 2 throttle bodies are individually serialized for improved warranty and service tracking
Specifications:
- Product Type: Sniper EFI Fuel Injection Conversion Kit
- Flange Style: 4150
- Max Horsepower Rating: 650 hp naturally aspirated
- Injector Size: 100 lb/hr @ 58.5 PSI
- Fuel Pressure: 58.5 PSI
- Fuel System: Universal Drop-In Module, Return Style
- Fuel Pump Flow Rating: 340 LPH
- MAP Sensor: 2 Bar
- Inlet/Outlet Size: 9/16-18 Female O-Ring (AN 6)
- Power Distribution Module: Included
- User Interface: Bluetooth Module
- Transmission Compatibility: All
- Finish: Black
- Height: 3.28 in.
- Warranty: Two Year Standard, Extended via Product Registration
- Part Number: 550-511-BPR
Nitrous control is not supported in Sniper 2 EFI software. Bluetooth module service is available only within the USA and Canada.
FAQ
How is the Bluetooth version different from the handheld versions?
Instead of a dedicated 3.5 in. or 5 in. handheld display, this kit uses a Bluetooth module to connect to an iOS or Android phone for tuning and monitoring.
Is Bluetooth service available outside the US and Canada?
No, Bluetooth module service is only available within the USA and Canada.
Does this kit include the PDM?
Yes, the Power Distribution Module is included, simplifying EFI and ignition wiring to a battery and switched 12-volt source.
Is this the return-style or returnless fuel module?
Return-style — built around a 340 LPH drop-in fuel pump module set up for a return-style fuel delivery system.
