This carbureted single-plane intake manifold fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular-port cylinder heads, delivering a broad torque curve and strong performance from 2500-7000 RPM.
Specifications:
- Basic Operating RPM Range: 2500-7000
- Category: Engine
- Engine: GM LS3/L92
- Flange Style: 4150 Square Bore
- Fuel System Type: Carb
- Manifold Type: Single Plane
- Product Type: Intake Manifold
- Throttle Body Bore Diameter: 3.6"
- Vacuum Ports: Yes
- Weight: 11.5 lbs
- Port Size: 2.50" H x 1.15" W

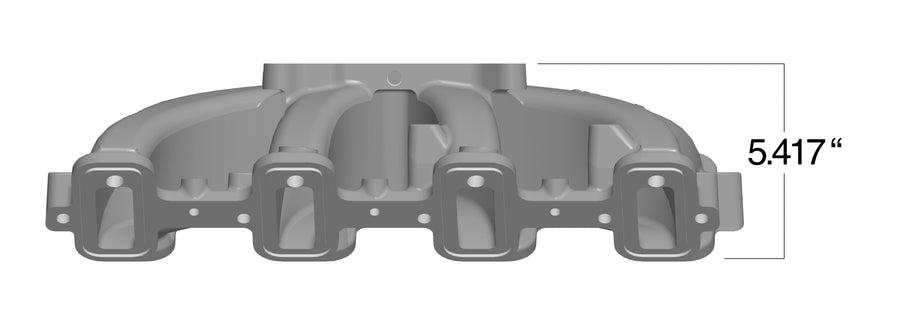

- Height (front): 5.417" to lifter valley cover flange
- Sub Category: Cylinder Block Components
- Part Number: 300-131
Includes mounting bolts, washers, and Viton O-ring cylinder head mounting flange gaskets for an OEM-style seal. Cast aluminum construction suits centrifugal blower, turbocharged, or nitrous power-adder applications.
FAQ
What cylinder heads does this intake fit?
GM LS Gen III or IV engines with LS3/L92 style rectangular-port cylinder heads.
What carburetor flange does it use?
A 4150 square-bore flange accepting throttle bores up to 1.75 inch diameter.
Are mounting gaskets included?
Yes, Viton O-ring cylinder head mounting flange gaskets are included for an OEM-style seal.
What RPM range is this intake optimized for?
2500-7000 RPM.
Is this manifold suitable for boosted or nitrous applications?
Yes, the cast aluminum construction is well suited for centrifugal blower, turbocharged, or nitrous power-adder applications.
