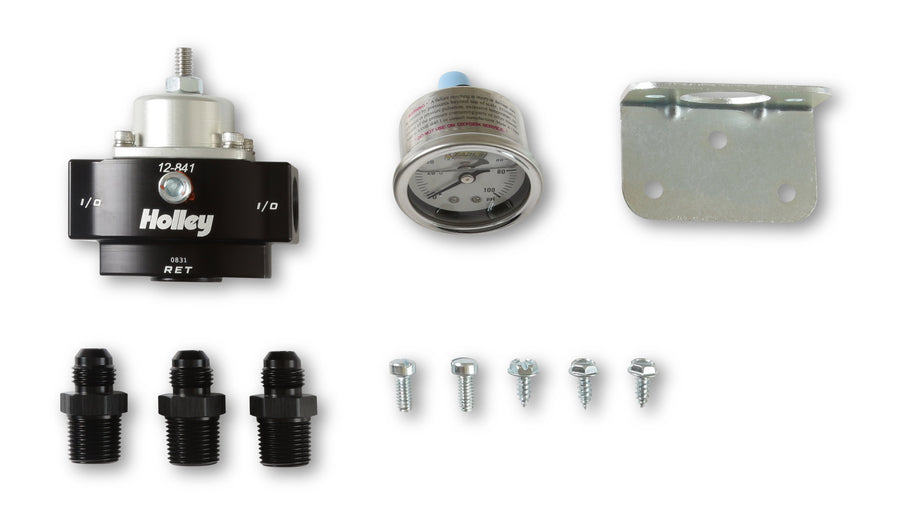

This billet bypass-style fuel pressure regulator kit features a black-finished billet aluminum body for corrosion resistance. It includes 3/8" NPT inlet/outlet ports, a 3/8" NPT return port, a 1/8" NPT gauge port, three adapter fittings, a barbed vacuum port fitting, a mounting bracket, and all necessary hardware.
Specifications:
- Style: Bypass
- Pressure Range: 4.5-9 PSI
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Inlet Size: 3/8" NPT
- Outlet Size: 3/8" NPT (x2)
- Return Size: 3/8" NPT
- Gauge Port: Yes, 1/8" NPT, includes Earl's gauge (100187ERL)
- Material: Aluminum
- Color/Finish: Black
- Mounting Hardware: Included
- Warranty: Manufacturer's Limited 90 Day Warranty
- Part Number: 12-841KIT
Designed for return-style fuel systems with a line back to the fuel tank.
FAQ
What pressure range does this regulator adjust across?
4.5-9 PSI.
Is this for return or non-return fuel systems?
Return-style systems with a line back to the fuel tank.
What's included in the kit?
The regulator, a fuel pressure gauge, adapter fittings, a mounting bracket, and hardware.
What port sizes does it use?
3/8" NPT inlet, outlet, and return ports, plus a 1/8" NPT gauge port.
