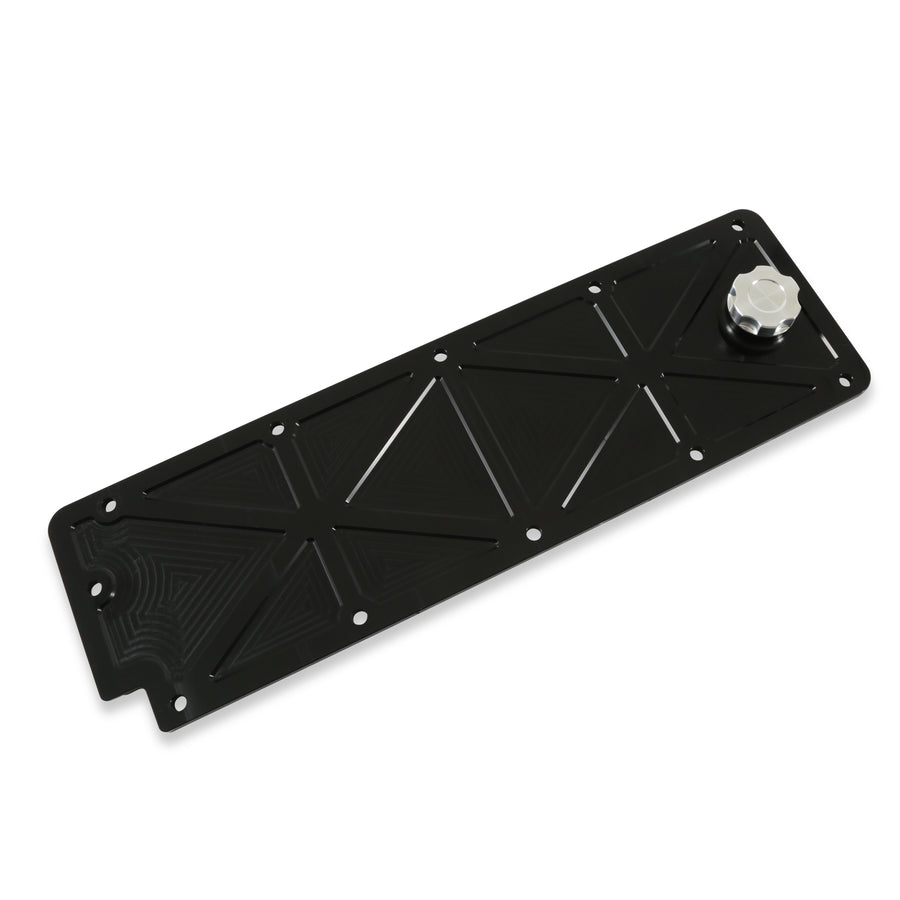

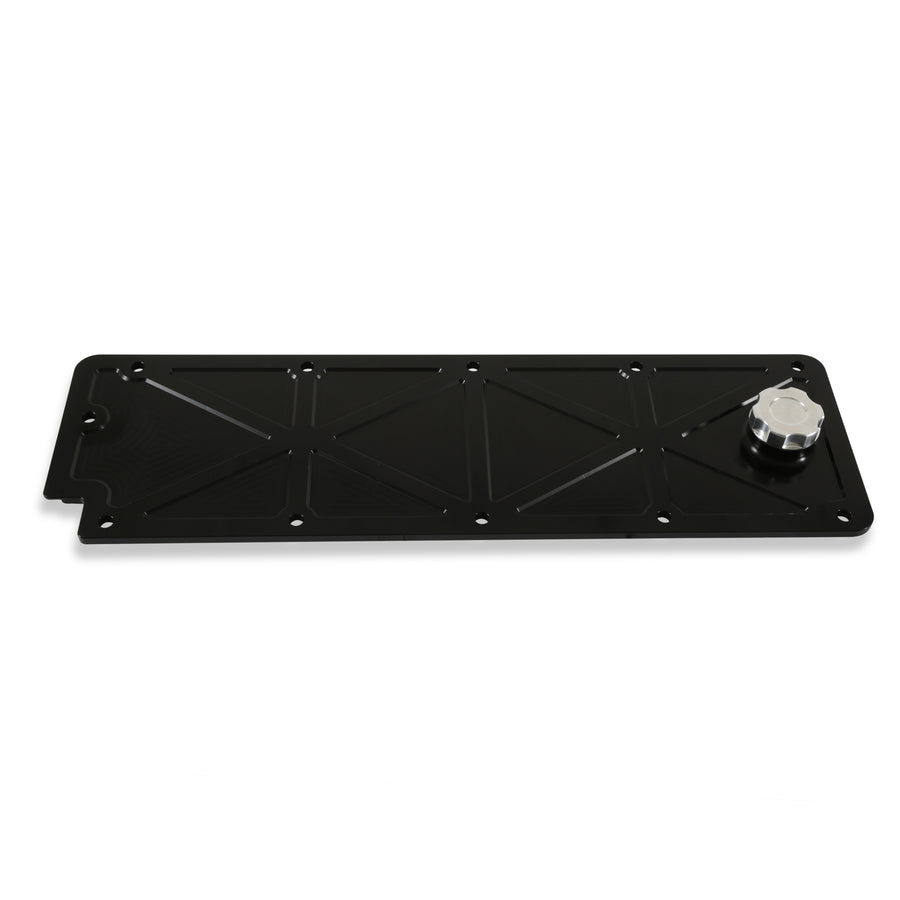

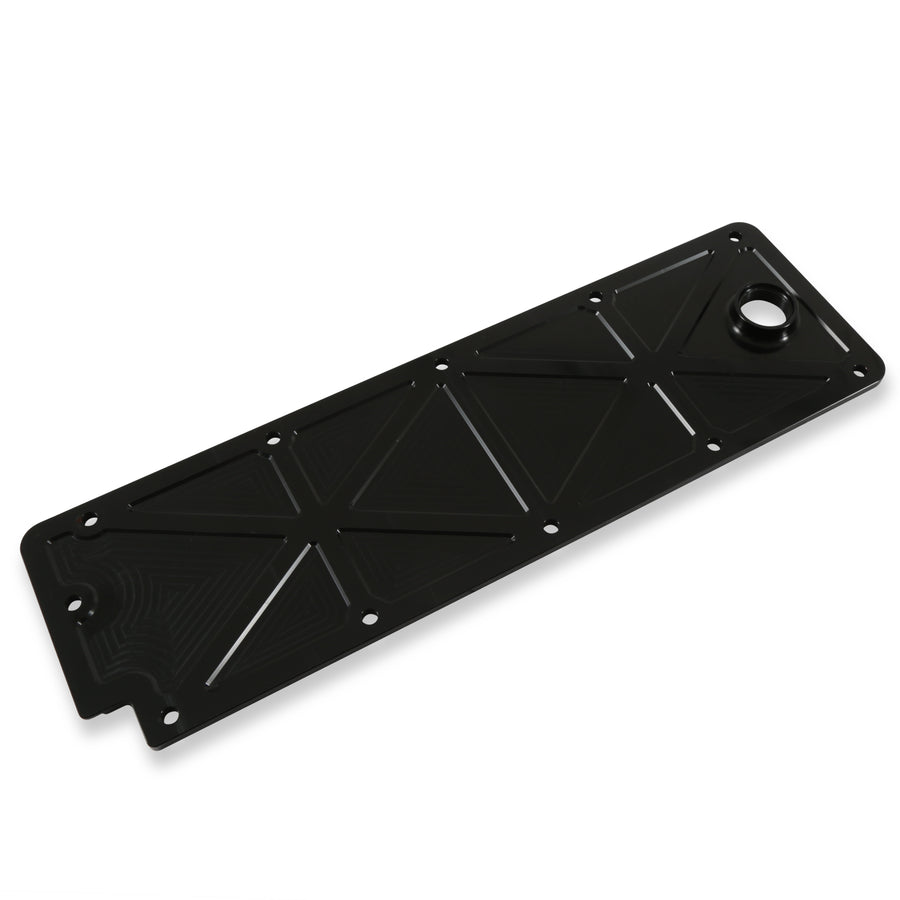

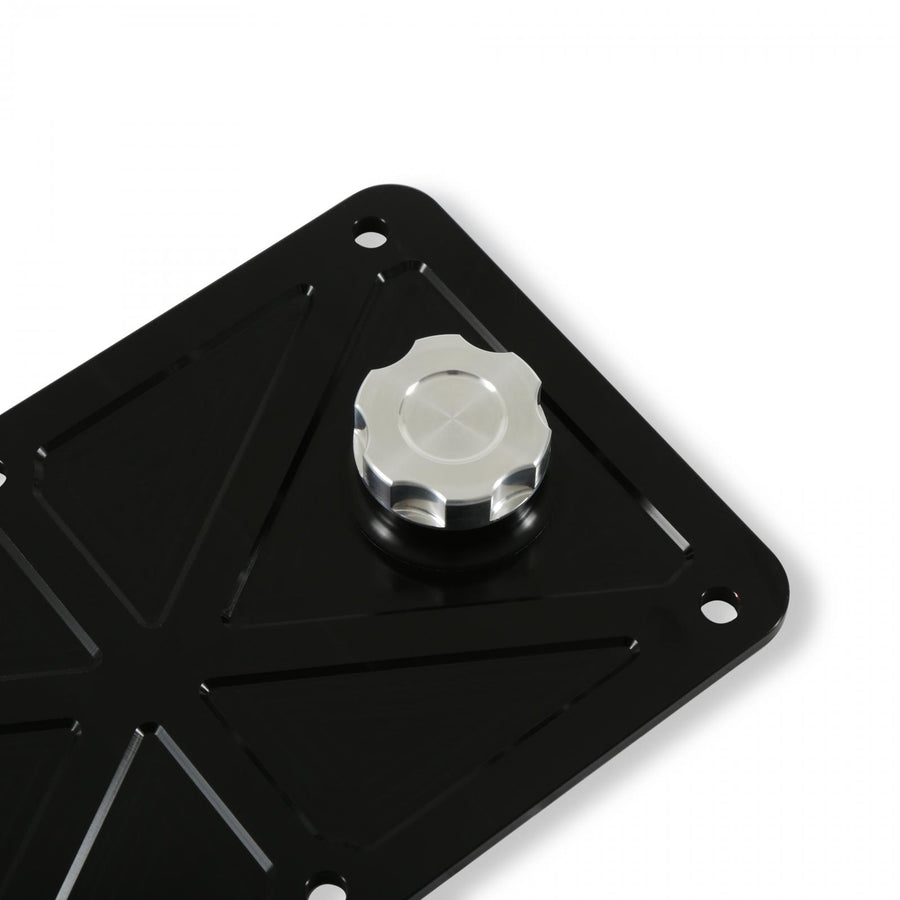

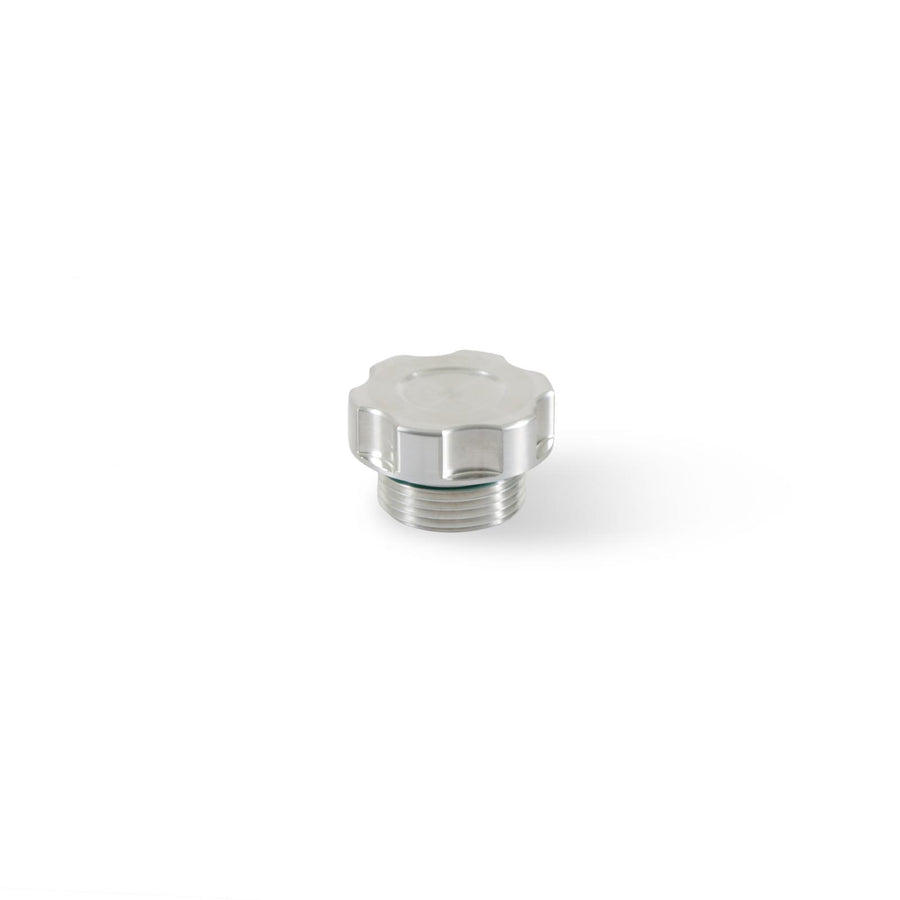

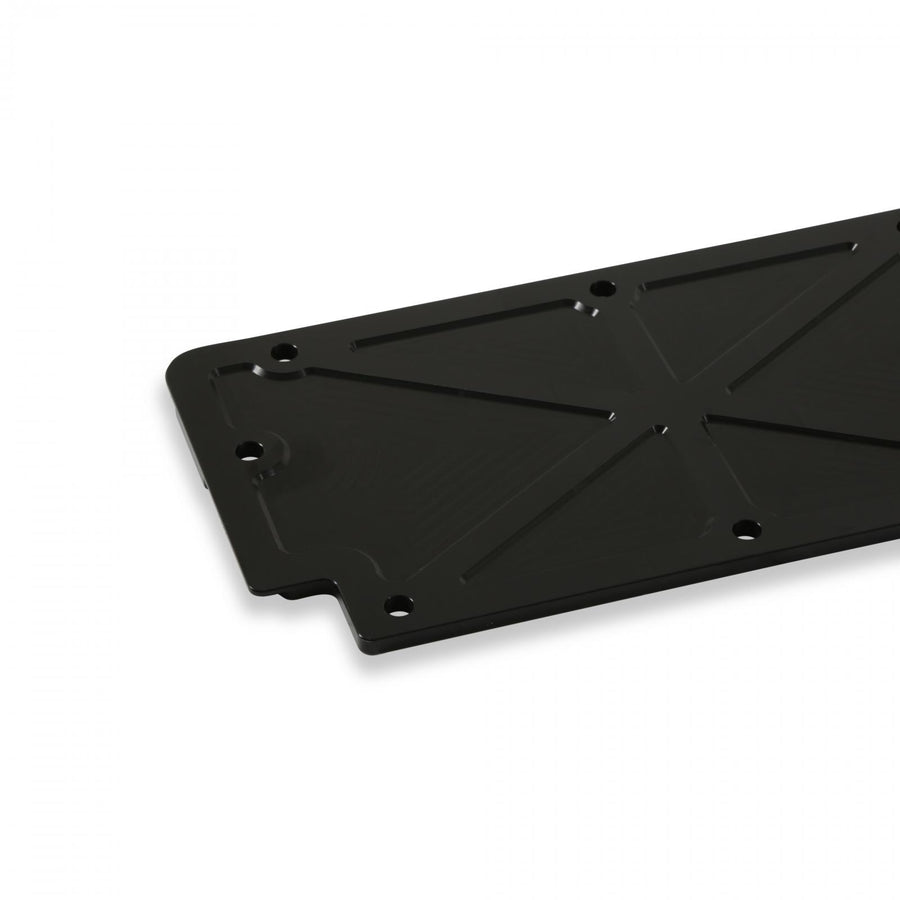

This billet aluminum LS valley cover features a modern, trussed design with an integrated oil fill neck and billet oil fill cap, giving LS1/LS6 and LS2/LS3/LS7/LSX engines a custom dress-up upgrade. Machined smooth on the underside, it allows for elimination of Displacement-On-Demand (DOD) while providing an ample gasket sealing surface and provisions for reinstalling the factory oil pressure sensor.
Specifications:
- Application: LS2/LS3/LS7/LSX
- Bolt Pattern: 11-Bolt
- Category: Engine
- Finish: Anodized Black
- Material: Billet Aluminum
- Style: Trussed
- Oil Fill Cap Included: Yes
- Gaskets Included: No
- Mounting Hardware Included: No
- Product Type: Valley Covers
- Sub Category: Gaskets and Sealing Systems
- Warning: California Proposition 65
- Warranty: Manufacturer's Limited 90 Day Warranty
- Part Number: 241-362
To use the factory top-mounted oil pressure sensor on LS2/LS3/LS7/LSX engines, carefully drill and tap the oil pressure sensor provision at the pre-located pilot hole on the underside of the cover to accept an M16 x 1.5 male NPT fitting. If using this cover for a DOD delete, all 8 oil port holes must be drilled and tapped 1/8-NPT and plugged, or loss of oil pressure will occur. All necessary gaskets and upgraded mounting hardware are sold separately.
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
Does this valley cover fit LS1/LS6 engines?
This version is machined for the 11-bolt LS2/LS3/LS7/LSX pattern; a 10-bolt version is available separately for LS1/LS6.
Can I eliminate DOD with this cover?
Yes, the smooth underside allows for DOD elimination, but all 8 oil port holes must be drilled, tapped 1/8-NPT, and plugged, or oil pressure loss will occur.
Are gaskets or mounting hardware included?
No, gaskets and upgraded mounting hardware are sold separately.
Is this part legal for street use?
No — it is legal for Racing Use Only vehicles and is not for installation on emissions-controlled street vehicles.
