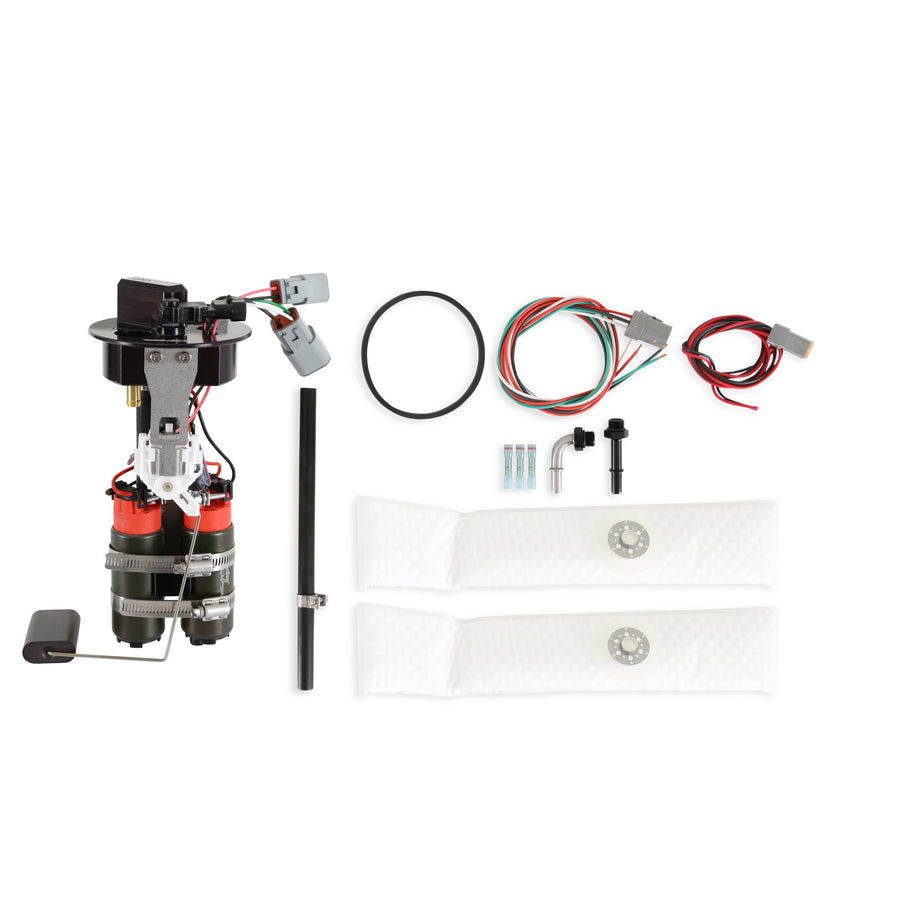

Built for 4th Gen F-body owners chasing serious power, this Holley pump module uses billet pump flanges that connect to dual 340 LPH pumps, compatible with both gasoline and E85. It comes pre-installed with new fuel level and tank pressure sensors and includes provisions to connect to the factory EVAP system.
Specifications:
- Free Flow Rate: 820 LPH / 216 GPH
- Average Flow Rating: 680 LPH
- Fuel Type: Gasoline/E85 Compatible
- Fuel System: EFI, Return Style
- Inlet/Outlet: 6 AN ORB
- Material: Billet Aluminum 6061-T6
- Finish: Anodized Black
- Single or Dual Pump: Dual
- Mounting: In-Tank
- Part Number: 12-364
Fits the factory plastic tank used in 1998-2002 Camaro/Firebird (or an earlier 4th Gen F-body retrofitted with this tank). Includes a 3 x 11-inch HydraMat filter for each pump, new gasket, wiring pigtails, and fittings for the factory quick-connect feed and return lines. Drive the vehicle down until the fuel level is at or below 1/8 tank before removal to ease reinstallation. Since this is a return-style module, an EFI pressure regulator such as the Holley 19-392 or 19-395 is needed to complete the installation.
FAQ
What vehicles does the Holley 12-364 pump module fit?
It's designed for the 1998-2002 Chevrolet Camaro and Pontiac Firebird 4th Gen F-body, or an earlier F-body retrofitted with this fuel tank.
Is this module compatible with E85?
Yes, it's rated for both gasoline and E85.
What comes included with the module?
Pre-installed fuel level and tank pressure sensors, a 3 x 11-inch HydraMat filter for each pump, a new gasket, wiring pigtails, and fittings for the factory quick-connect lines.
Do I need anything else to complete the install?
Yes. Since this is a return-style module, an EFI pressure regulator such as the Holley 19-392 or 19-395 is required to complete the installation.
