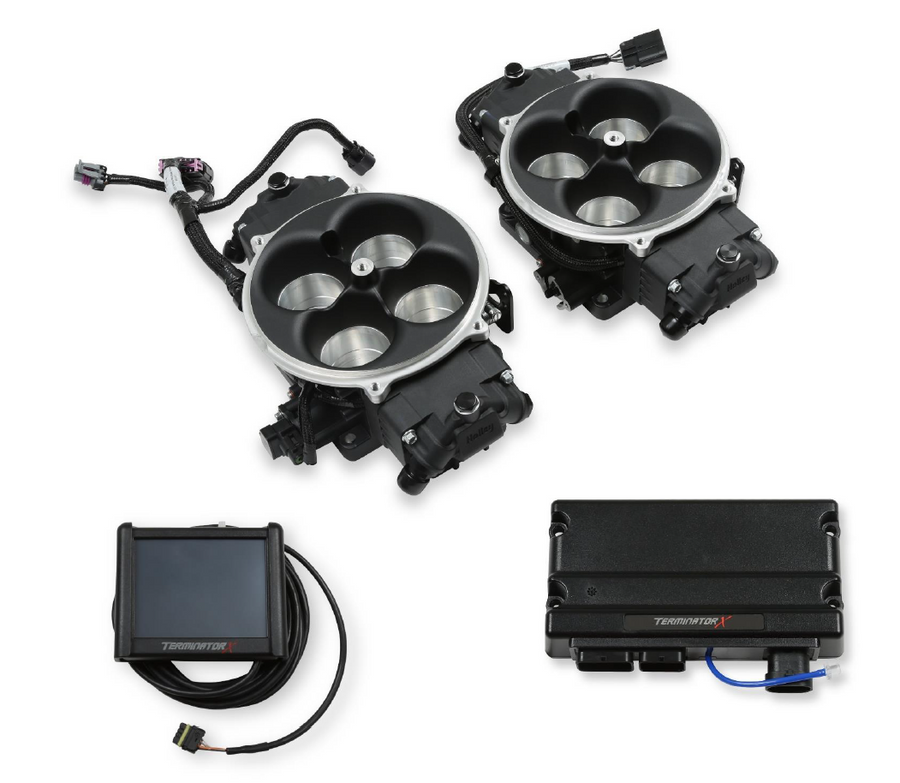

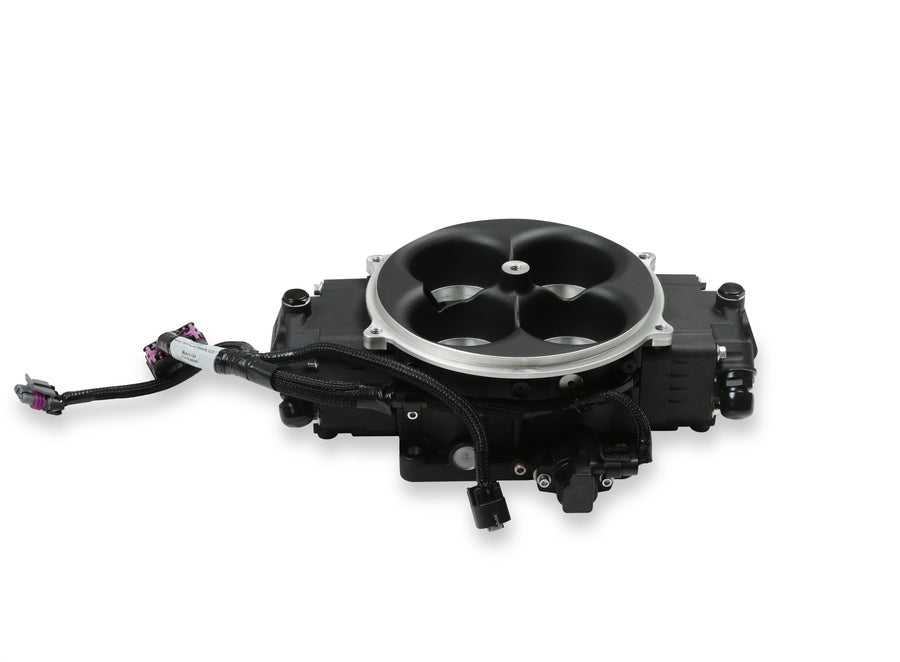

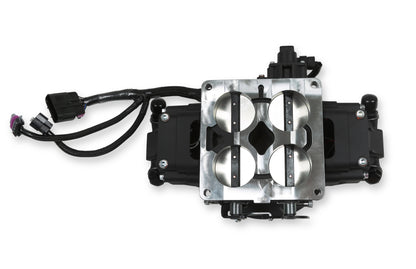

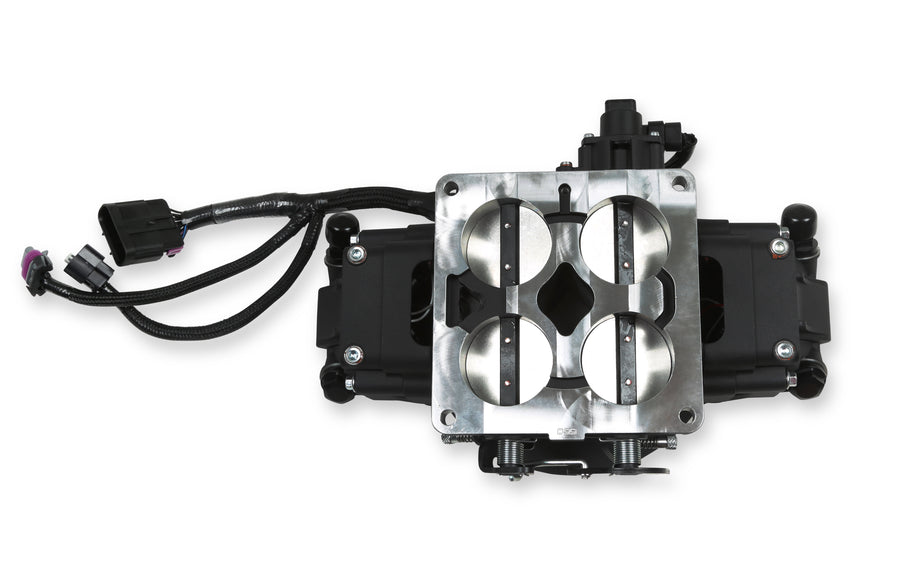

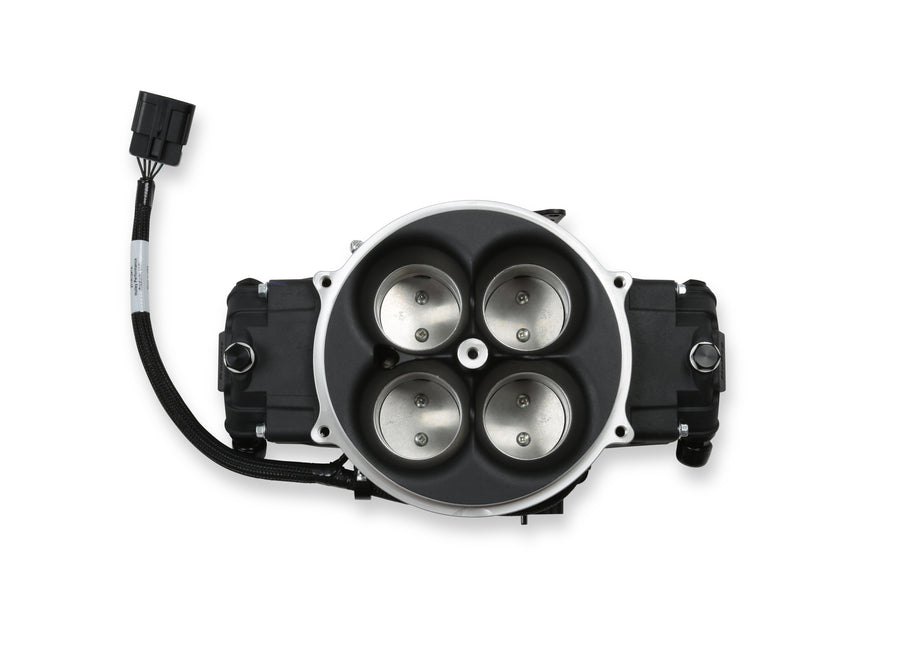

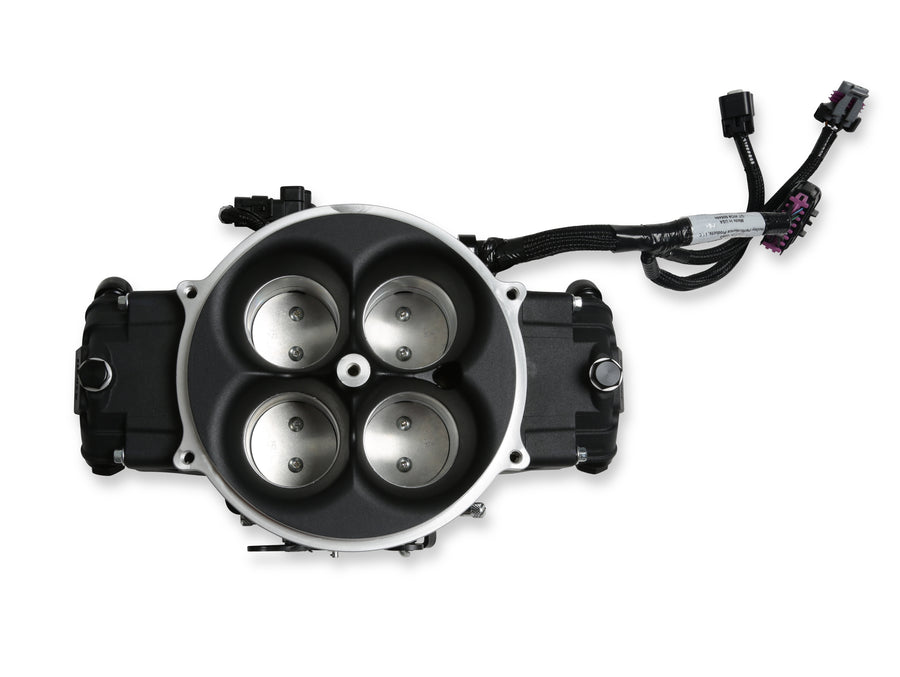

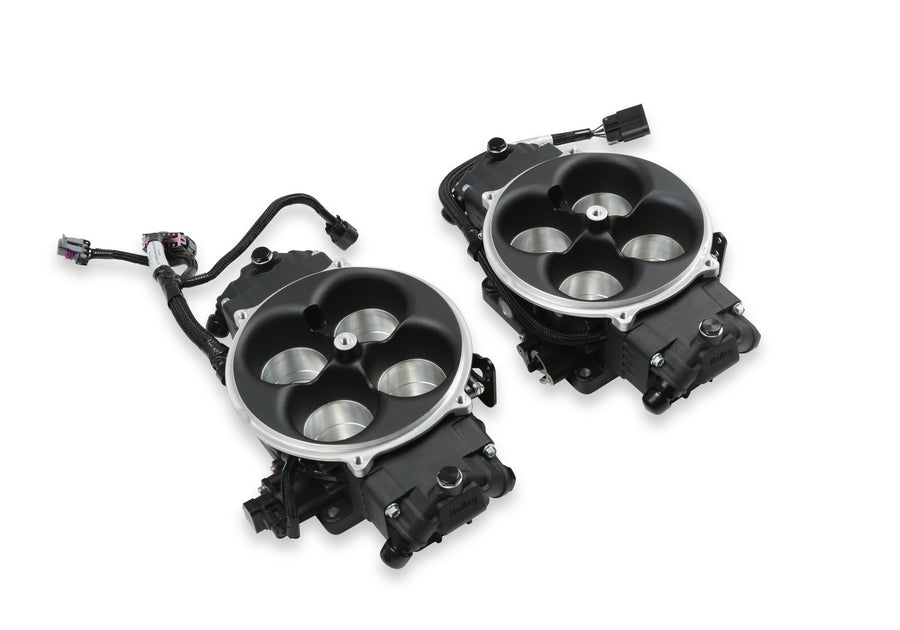

Holley EFI Holley EFI Terminator X Stealth 2x4 4500 Kit - Black 550-1081
Regular Price
$3,949.95

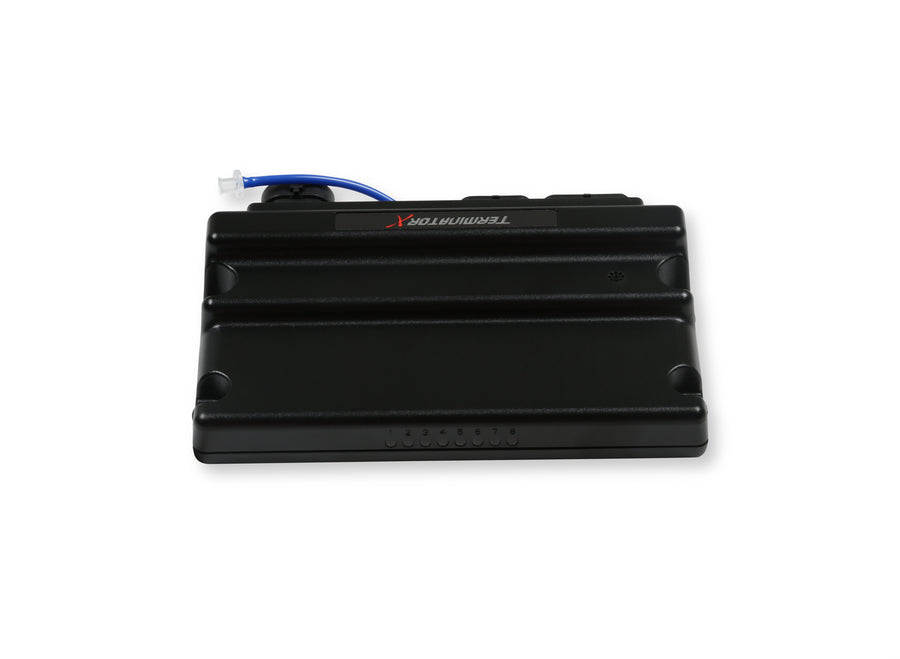

The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Holley EFI Holley EFI Terminator X Stealth 2x4 4500 Kit - Black 550-1081
Specifications:
| 10429 | Yes |
| 10431 | Yes |
| Brand | Holley EFI |
| 10423 | Yes |
| Category | Air and Fuel Delivery |
| CFM | 2880 |
| 10438 | Yes |
| Color | Black |
| 10430 | Yes |
| 10437 | No |
| 10442 | Yes |
| 10418 | No |
| 10428 | Yes |
| Emission Code | 3 |
| Finish | Black |
| Flange Size | 4500 |
| Flange Style | Dominator |
| Forced Induction HP@60PSI | 1250 |
| 10433 | Yes |
| 7246 | No |
| 10417 | No |
| 906 | Yes |
| Fuel Pressure | 58.5 PSI |
| 10425 | No |
| 8922 | No |
| 3390 | Performance |
| Handheld Included | Yes |
| Height | 3.85" |
| Horsepower Rating (HP) | 1500 |
| 909 | No |
| 10422 | Yes |
| Ignition Type | Universal |
| 10432 | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 8AN |
| 9780 | No |
| 10427 | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500+ |
| 30 | No |
| 10420 | Yes |
| Naturally Aspirated HP@60PSI | 1500 |
| part type | Fuel Injection System |
| PDM | No |
| Power Distribution Module | No |
| Product Type | EFI System |
| 10421 | Yes |
| 10434 | Yes |
| Sub Category | Fuel Injection System and Related Components |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 2.125 in. |
| 918 | Yes |
| Traction Control Support | Yes |
| Transmission | N/A |
| 10435 | Yes |
| Warning | California Proposition 65 |
| 10429 | Yes |
| 10431 | Yes |
| Brand | Holley EFI |
| 10423 | Yes |
| Category | Air and Fuel Delivery |
| CFM | 2880 |
| 10438 | Yes |
| Color | Black |
| 10430 | Yes |
| 10437 | No |
| 10442 | Yes |
| 10418 | No |
| 10428 | Yes |
| Emission Code | 3 |
| Finish | Black |
| Flange Size | 4500 |
| Flange Style | Dominator |
| Forced Induction HP@60PSI | 1250 |
| 10433 | Yes |
| 7246 | No |
| 10417 | No |
| 906 | Yes |
| Fuel Pressure | 58.5 PSI |
| 10425 | No |
| 8922 | No |
| 3390 | Performance |
| Handheld Included | Yes |
| Height | 3.85" |
| Horsepower Rating (HP) | 1500 |
| 909 | No |
| 10422 | Yes |
| Ignition Type | Universal |
| 10432 | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 8AN |
| 9780 | No |
| 10427 | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500+ |
| 30 | No |
| 10420 | Yes |
| Naturally Aspirated HP@60PSI | 1500 |
| part type | Fuel Injection System |
| PDM | No |
| Power Distribution Module | No |
| Product Type | EFI System |
| 10421 | Yes |
| 10434 | Yes |
| Sub Category | Fuel Injection System and Related Components |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 2.125 in. |
| 918 | Yes |
| Traction Control Support | Yes |
| Transmission | N/A |
| 10435 | Yes |
| Warning | California Proposition 65 |
| Description_INV | TERMX STEALTH 4500, 2X4 , BLACK |
| Description_ASC | Not for use with engines producing less than 800 horsepowerGasoline OnlyUse of leaded race fuels may shorten the service life of the WBO2 sensor |
| Description_DES | Holley EFI Terminator X Stealth 2x4 4500 Kit - Black |
| Description_EXT | 8 Injectors - 800-1500 HP |
| Description_MKT | The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car! |

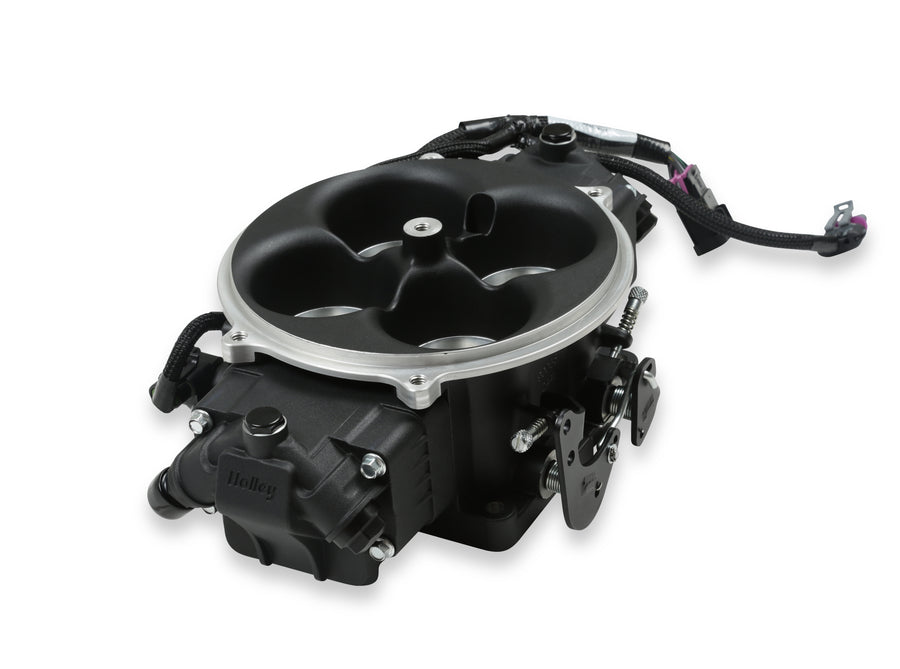

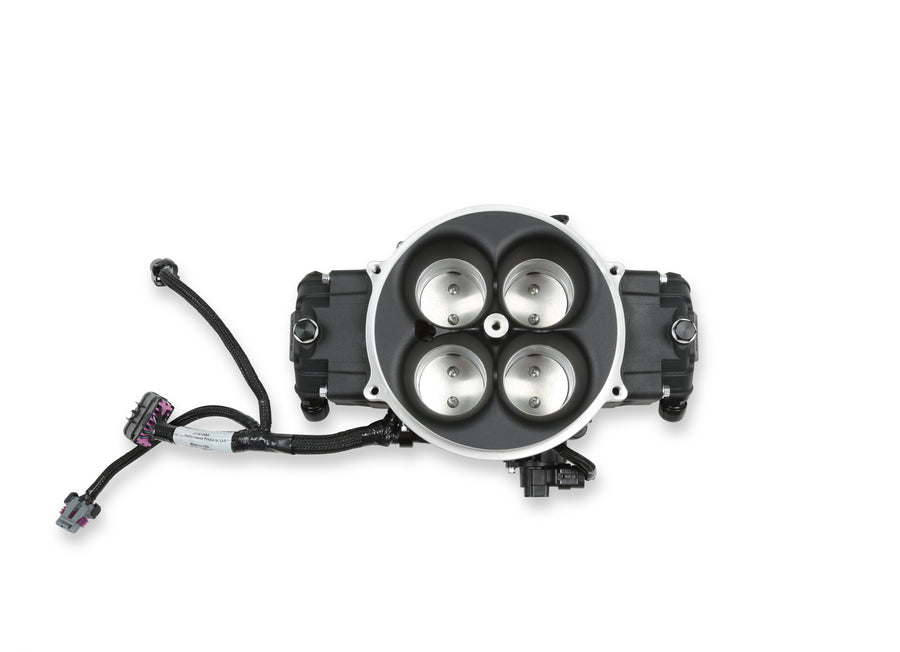

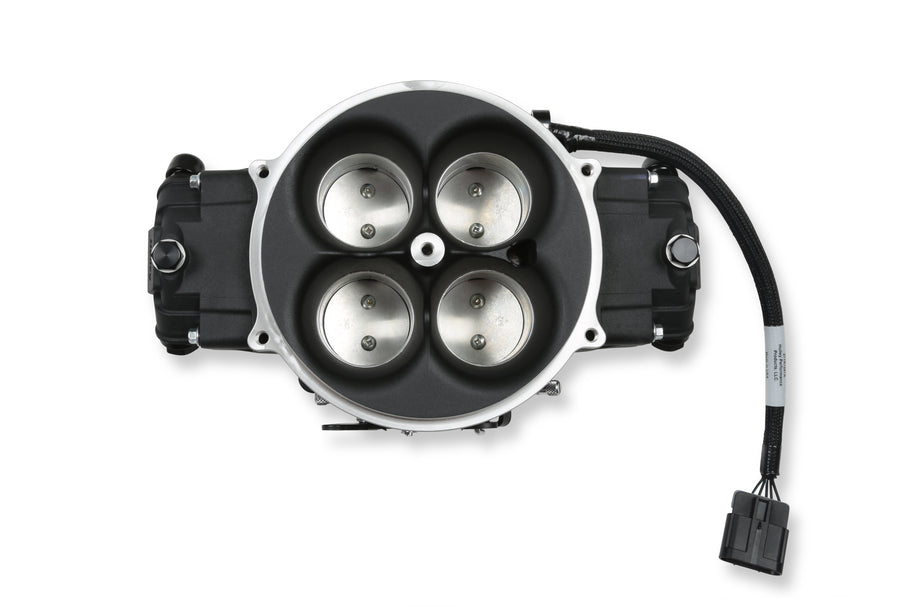

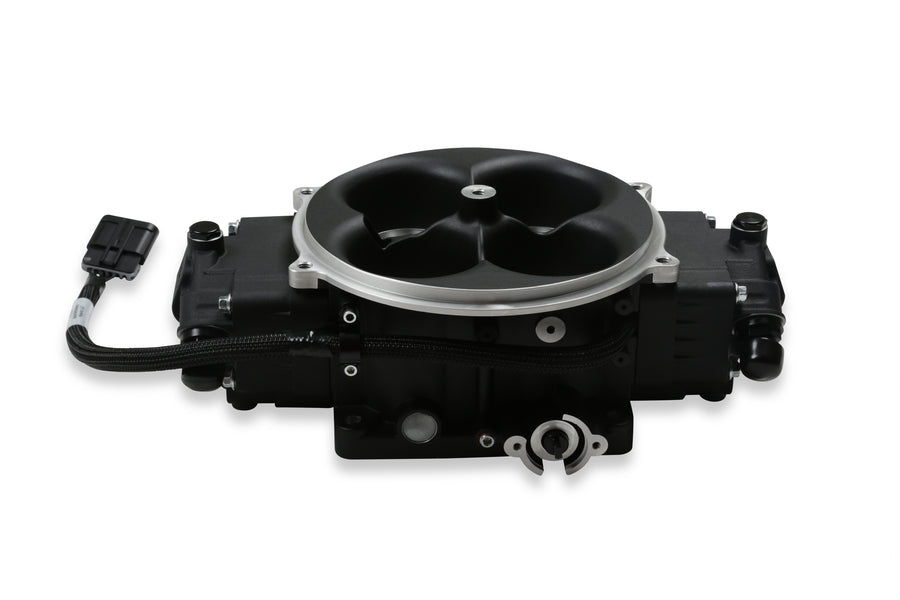

| Description_FAB | Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds |
| Description_FAB | Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors |
| Description_FAB | 2.125” Throttle Plates, Flow 1440 CFM each for large cubic inch engines |
| Description_FAB | Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options |
| Description_FAB | External fuel pressure regulator required, such as 12-848 |
| Description_FAB | Throttle Linkage not included |
| Description_FAB | Each throttle body contains 4x 100lb/hr fuel injectors |

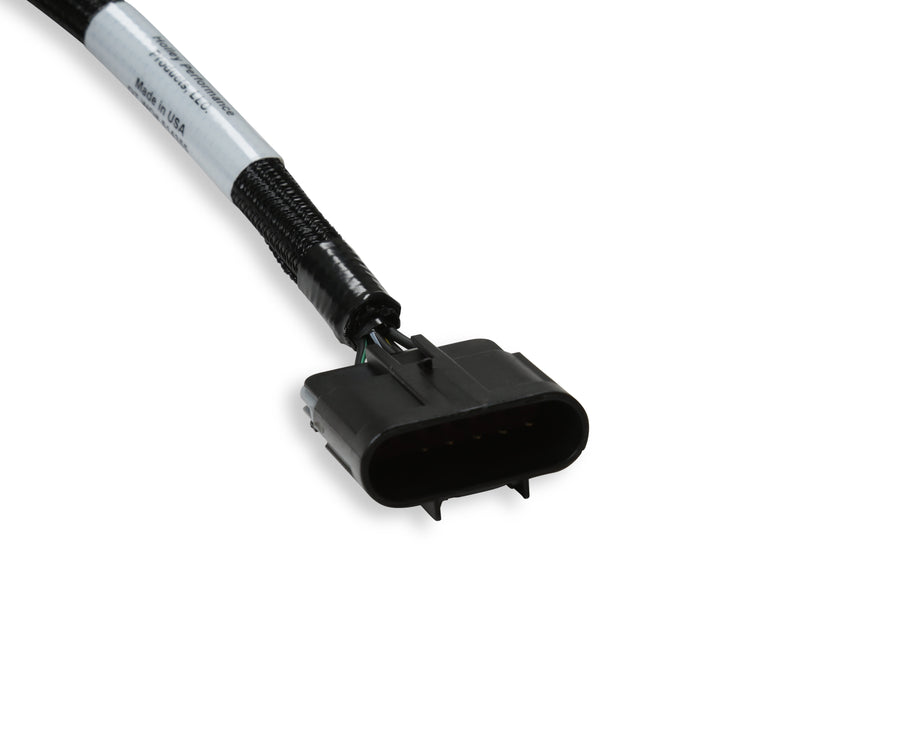

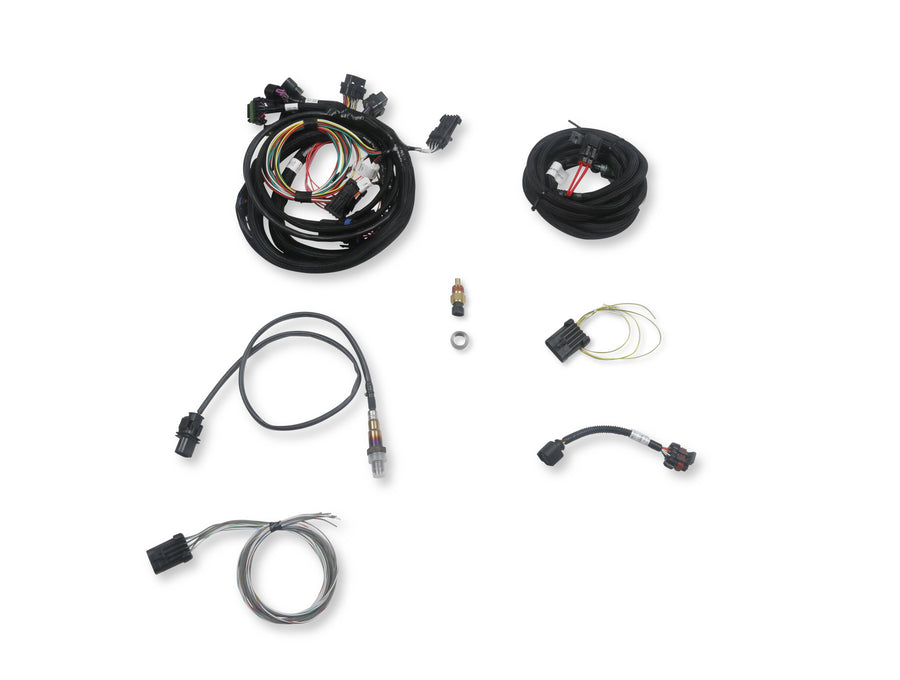

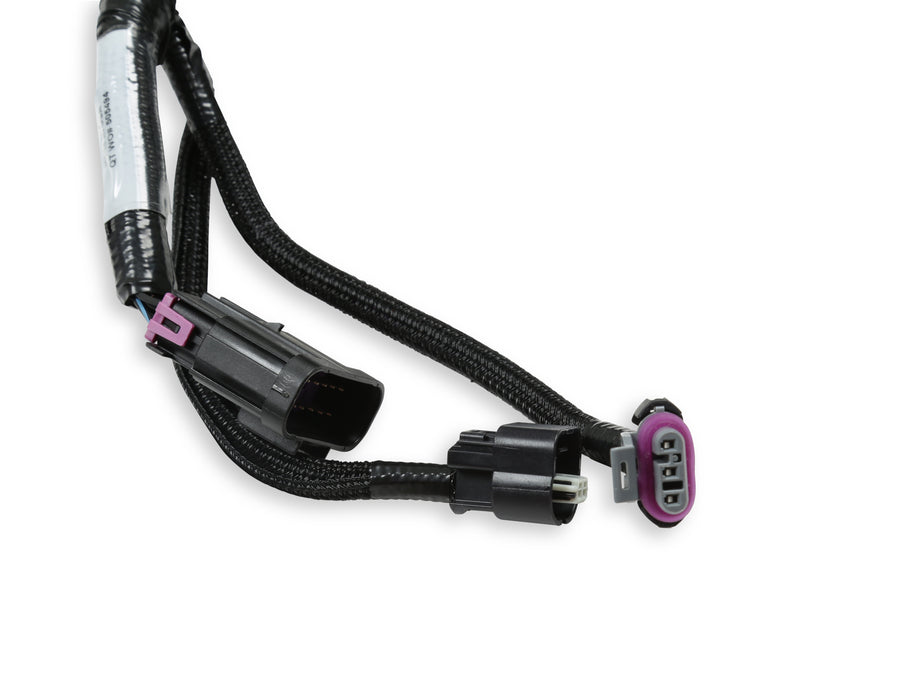

| Description_FAB | Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations |

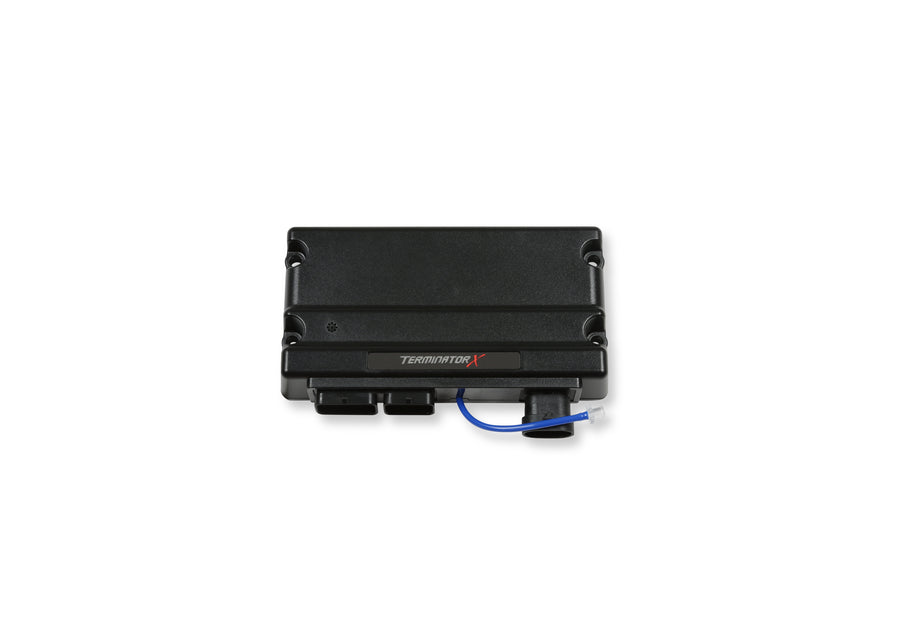

| Description_FAB | Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger) |

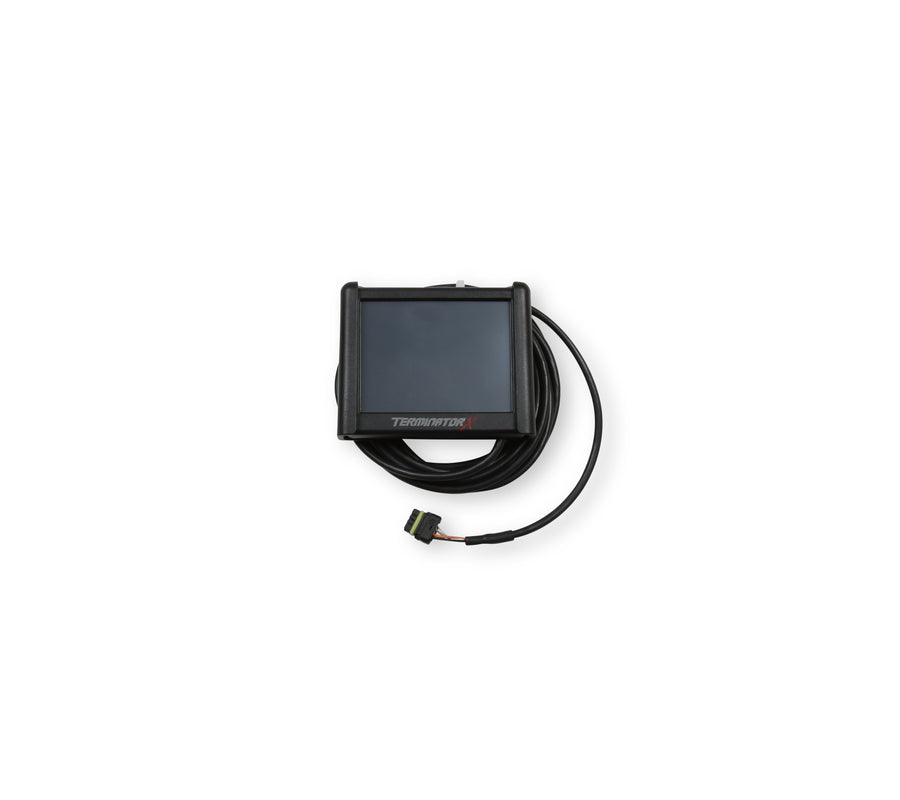

| Description_FAB | High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB | Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! |
| Description_FAB | Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI! |
| Description_FAB | The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! |
| Description_FAB | Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation |
| Description_FAB | Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112) |
| Description_INV | TERMX STEALTH 4500, 2X4 , BLACK |
| Description_ASC | Not for use with engines producing less than 800 horsepowerGasoline OnlyUse of leaded race fuels may shorten the service life of the WBO2 sensor |
| Description_DES | Holley EFI Terminator X Stealth 2x4 4500 Kit - Black |
| Description_EXT | 8 Injectors - 800-1500 HP |
| Description_MKT | The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car! |
| Description_FAB | Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds |
| Description_FAB | Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors |
| Description_FAB | 2.125” Throttle Plates, Flow 1440 CFM each for large cubic inch engines |
| Description_FAB | Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options |
| Description_FAB | External fuel pressure regulator required, such as 12-848 |
| Description_FAB | Throttle Linkage not included |
| Description_FAB | Each throttle body contains 4x 100lb/hr fuel injectors |
| Description_FAB | Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations |
| Description_FAB | Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger) |
| Description_FAB | High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB | Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! |
| Description_FAB | Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI! |
| Description_FAB | The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! |
| Description_FAB | Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation |
| Description_FAB | Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112) |
