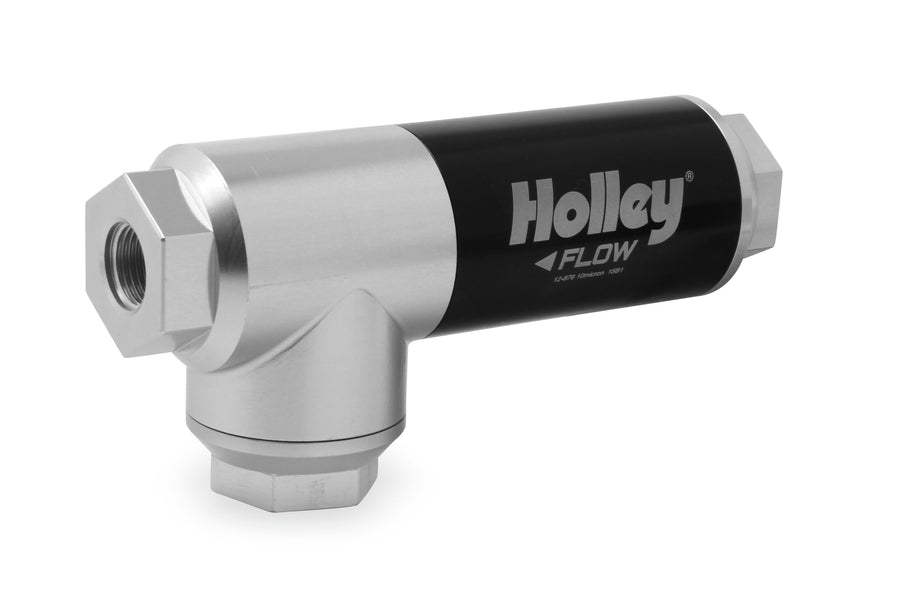

This Holley EFI filter/regulator assembly combines a 175 GPH, 10-micron fuel filter with a preset fuel pressure regulator in one compact unit, simplifying installation when converting to a return-style EFI fuel system. The clear- and black-anodized aluminum housing resists corrosion, and 3/8" NPT ports keep plumbing straightforward.
Specifications:
- Port Size: 3/8" NPT inlet/outlet
- Flow Rate: 175 GPH
- Filter Micron Rating: 10 micron
- Regulated Pressure: Preset at 59.5 PSI
- Material: Aluminum, clear/black anodized
- Part Number: 12-875
For -8AN O-ring ports instead of NPT, see part number 12-876.
FAQ
What pressure is the 12-875 regulator preset to?
It's preset at 59.5 PSI.
What port size does this filter regulator use?
3/8" NPT inlet and outlet ports.
What is the flow rating?
175 GPH with a 10-micron filter element.
Is there an AN-port version?
Yes, part number 12-876 is the same assembly with -8AN O-ring ports.
