Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
This set is part of Hedman's ELITE® line of headers, which have stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavy-duty construction of HEDMAN ELITE® Hedders makes them ideal for high-performance engines and tow vehicles, which produce higher exhaust temperatures.
ELITE® models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and increases exhaust speeds for improved exhaust scavenging, and reduced under hood temperatures.
These LONG-TUBE headers fit 1967-1991 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment) powered by a Small Block Chevy engine (without A.I.R. System). The larger 1-3/4 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

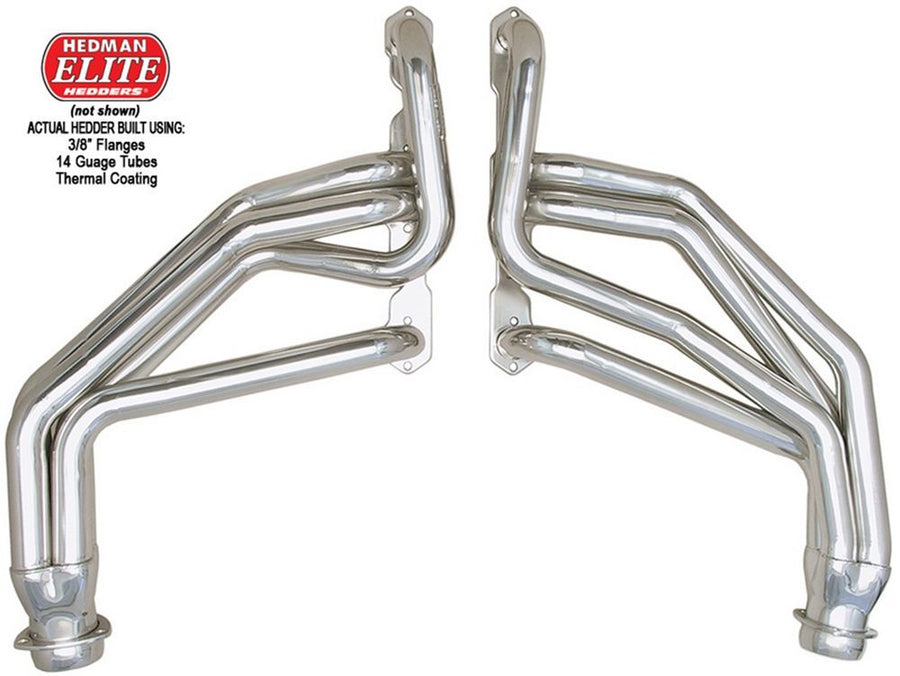

Hedman Hedders HD Silver Long-Tube Headers For 67-91 GM 283-400 2&4WD Truck/SUV 69088
Specifications:
| Description_DEF | [B@771ed8c |
| Description_DES | [B@3838b83a |
| Description_EXT | [B@2ff5d90 |
| Description_FAB | [B@6182f1d7 |
| Description_FAB | [B@69977de6 |
| Description_FAB | [B@1413f186 |
| Description_FAB | [B@6cf82d49 |
| Description_FAB | [B@1a026548 |
| Description_FAB | [B@482843a3 |
| Description_INV | [B@43bc04e1 |
| Description_MKT | [B@6e83ebba |
| Description_SHO | [B@6722eb07 |
| Tube Diameter | 1-3/4 in. |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Size | 1-3/4 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 14g |
| Primary Tube Diameter (in) | 1.75 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Matte Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction | MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket | 27560 |
| Replacement Head Flange Gasket | 27560 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations | 69086, 69088 |
| Tube Material Thickness | 14g |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Air Conditioning Notes | Must modify rotary A/C Bracket (121) |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | No |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Chassis Compatibility | NOT For Vehicles With Offset (right) Engine Position! |
| Power Steering | Yes |
| Material | Mild Steel |
| Tube Design | Standard |
| Title | HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Tube Length | Long Tubes |
| Drivetrain | 2WD |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish | Matte Silver Ceramic-Metallic |
| Finish Type | MATTE SILVER Ceramic-metallic coated |
| Flange Style | Standard |
| Flange Thickness | 0.375 in. |
| Header Port Shape | Rectangle |
| Header Style | Long Tube |
| Notes | 67-91 GM. Full Size Blazer, Jimmy 283-400 2-4WD |
| Port Shape | Rectangle |
