Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These HTC™ coated, LONG-TUBE headers are one of Hedman's best selling Chevy truck headers. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment) powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-3/4 in. tube design provides superior exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, HTC™ Polished Silver ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

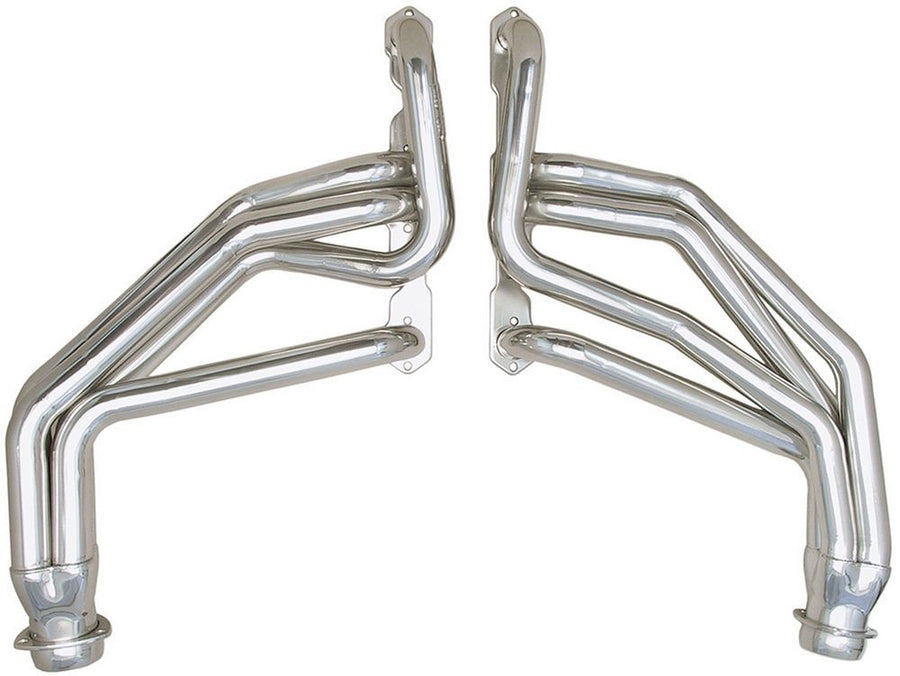

Hedman Hedders Silver Long-Tube Headers For 67-91 GM 283-400 2WD/4WD Trucks/SUVs 69086
Specifications:
| Description_DEF | [B@48623d82 |
| Description_DES | [B@343368f2 |
| Description_EXT | [B@1731742f |
| Description_FAB | [B@6849ae35 |
| Description_FAB | [B@319e0093 |
| Description_FAB | [B@1ec58aaa |
| Description_FAB | [B@2c91551 |
| Description_FAB | [B@27d43b3b |
| Description_FAB | [B@668f2dca |
| Description_INV | [B@542d6b6b |
| Description_MKT | [B@1e849f22 |
| Description_SHO | [B@188f622a |
| Tube Diameter | 1-3/4 in. |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Size | 1-3/4 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.75 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27560 |
| Replacement Head Flange Gasket | 27560 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations | 69080, 69088 |
| Tube Material Thickness | 16g |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Air Conditioning Notes | Must modify rotary A/C Bracket (121) |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | No |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Chassis Compatibility | NOT For Vehicles With Offset (right) Engine Position! |
| Power Steering | Yes |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Tube Length | Long Tubes |
| Drivetrain | 2WD |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish | HTC Polished Silver Ceramic-Metallic |
| Finish Type | HTC SILVER (polished) Ceramic-metallic Coating |
| Flange Style | Standard |
| Flange Thickness | 0.3125 in. |
| Header Port Shape | Rectangle |
| Header Style | Long Tube |
| Notes | 67-91 GM. Full Size Blazer, Jimmy, Suburban 283-400 2-4WD |
| Port Shape | Rectangle |
| Material | Mild Steel |
| Tube Design | Standard |
| Title | HEDMAN HEDDERS HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
