Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these GEN-3 AMC V8 headers, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE, Under-Chassis (in-frame) design headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with a 304-401 AMC V8. They are compatible with manual transmission Jeeps only. (will not work with TF 999 transmission). The long, smooth 1-5/8 in. tube, Dog-Leg port design provides excellent exhaust flow to let your CJ's Tall-Deck, AMC V8 engine breathe freely, and produce maximum torque to power you through virtually any trail.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

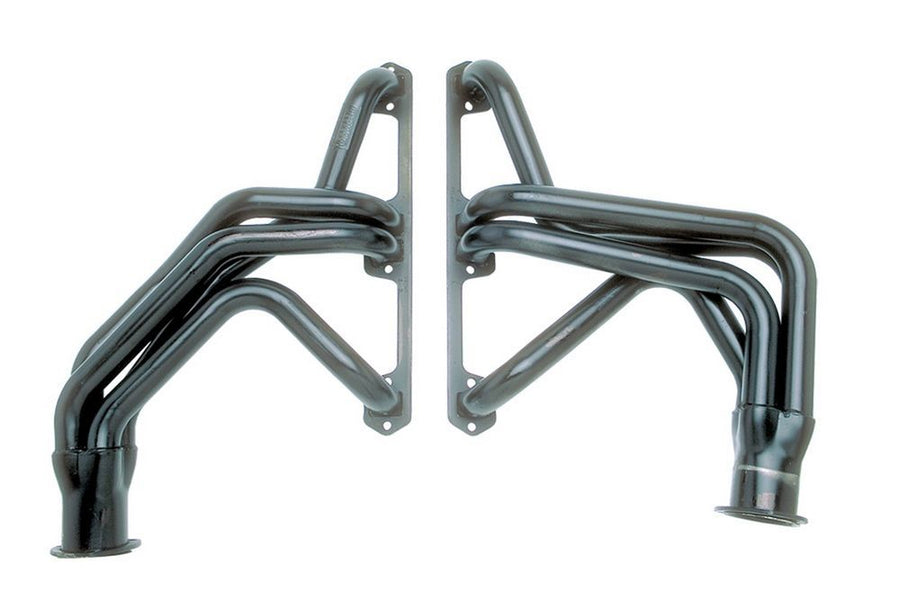

Hedman Hedders Uncoated 1-5.8 in. Long-Tube Headers for '72-86 JEEP CJ5-CJ6-CJ7 with 304-401 V8 99200
Specifications:
| Description_DEF | [B@72c61481 |
| Description_DES | [B@56e80b7a |
| Description_EXT | [B@69efe59e |
| Description_FAB | [B@4e495d4f |
| Description_FAB | [B@c693a1b |
| Description_FAB | [B@1acc4337 |
| Description_FAB | [B@c9986e5 |
| Description_FAB | [B@8be011c |
| Description_FAB | [B@4dc24bf2 |
| Description_INV | [B@35ef6c86 |
| Description_MKT | [B@75817a70 |
| Description_SHO | [B@d4f233d |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Tube Diameter | 1-5/8 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 99206, 99208 |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Dog Leg |
| Cylinder Head | Stock Profile Heads |
| Automatic Transmission - Floor | No |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 16g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27850 |
| Replacement Head Flange Gasket | 27850 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System | No |
| Tube Size | 1-5/8 in. |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 72-86 Jeep CJ5, CJ6, CJ7 290-401 |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Header Port Shape | Dog Leg |
| Port Shape | Dog Leg |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Header Style | Long Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
