Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures as model for you in its Whittier, California manufactruring facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These uncoated, MID-LENGTH tube headers fit 1967-1987 2WD, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans, and Blazers with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. These headers work with factory chassis, as well as, aftermarket front clips, like Porterbuilt.

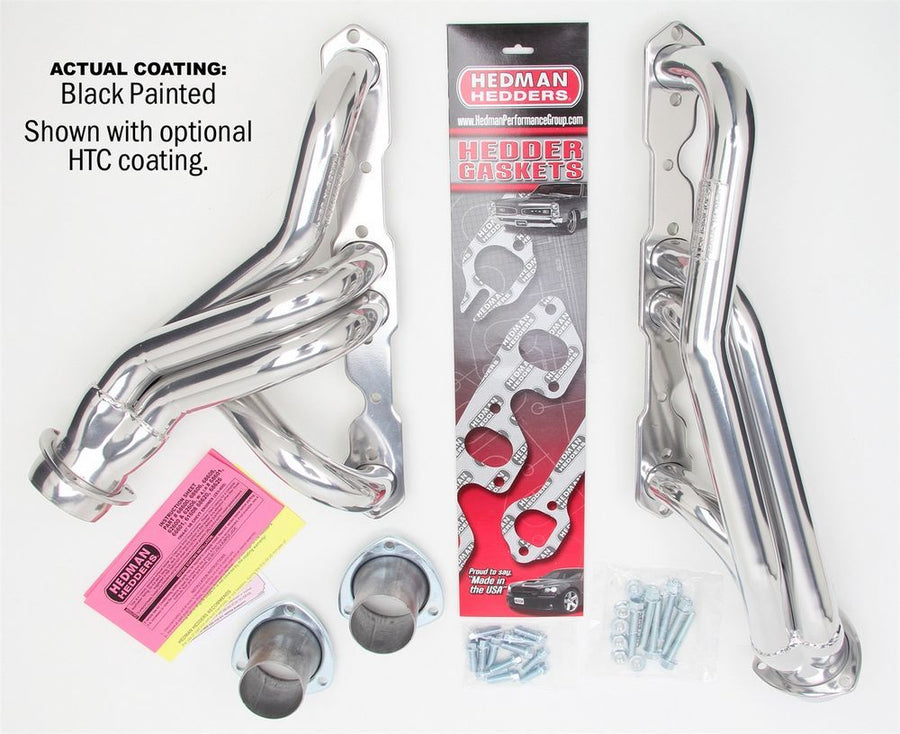

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Hedman Hedders Mid-Length Headers for 67-87 C10 Trucks w/283-400 69010
Specifications:
| Description_DEF | [B@f8d088 |
| Description_DES | [B@2e044c3c |
| Description_EXT | [B@6ac4d011 |
| Description_EXT | [B@1789de06 |
| Description_FAB | [B@51b320ef |
| Description_FAB | [B@5d5af349 |
| Description_FAB | [B@1152e4ab |
| Description_FAB | [B@48f27169 |
| Description_FAB | [B@e84c0 |
| Description_FAB | [B@a44ef33 |
| Description_INV | [B@cb5256c |
| Description_MKT | [B@579774aa |
| Description_SHO | [B@234bc21c |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Title | HEDMAN HEDDERS 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN |
| Tube Diameter | 1-5/8 in. |
| Mounting Hardware Included | Yes |
| Variations | 69016 |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Material Thickness | 16g |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Oval |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27520 |
| Replacement Head Flange Gasket | 27520 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Tube Size | 1-5/8 in. |
| Tube Length | Mid-Length Tubes |
| Tube Style | Mid-Length |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Design | Standard |
| Material | Mild Steel |
| Special Engine Notes | Designed for use with the SB Chevy engine located in the factory position. |
| Flange Thickness | 0.375 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Transmission Compatibility | Manual Trans. must Use TailShaft style crossmember or modify factory crossmember |
| Header Style | Mid-Length Tube |
| Materials | Mild Steel 16g Tubes; 5/16 in. Head Flanges; 1/4 in. Collector Flanges |
| E.O. # | No |
| Chassis Compatibility | NOT For Vehicles With Offset (right) Engine Position! |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape | Oval |
| Header Port Shape | Oval Port |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
| Air Conditioning Notes | 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket. |
