67-87 C10/C20 Trucks with SB Chevy; Standard HTC coated Hedders; 1-3/4" Tube Dia.; 3" Coll.; MID-LENGTH Design
Hedman Hedders SILVER MID-LENGTH 1-3/4 IN. HEADERS For 67-87 C10 TRUCKS w/283-400 69026
Specifications:
| Description_DEF | [B@434dc3a0 |
| Description_DES | [B@622556a0 |
| Description_EXT | [B@1886f99 |
| Description_EXT | [B@590e2173 |
| Description_EXT | [B@74f3a931 |
| Description_FAB | [B@3c2b6159 |
| Description_FAB | [B@7e1d35e2 |
| Description_FAB | [B@56b096eb |
| Description_FAB | [B@3fe3072d |
| Description_FAB | [B@58a59821 |
| Description_FAB | [B@4f0014f2 |
| Description_INV | [B@1dd5c437 |
| Description_SHO | [B@3aa872cf |
| Title | HEDMAN HEDDERS 67-87 C10/C20 TRUCKS WITH SB CHEVY; STANDARD HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Mounting Hardware Included | Yes |
| Tube Length | Mid-Length Tubes |
| Reducers Included | Yes |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.75 in. |

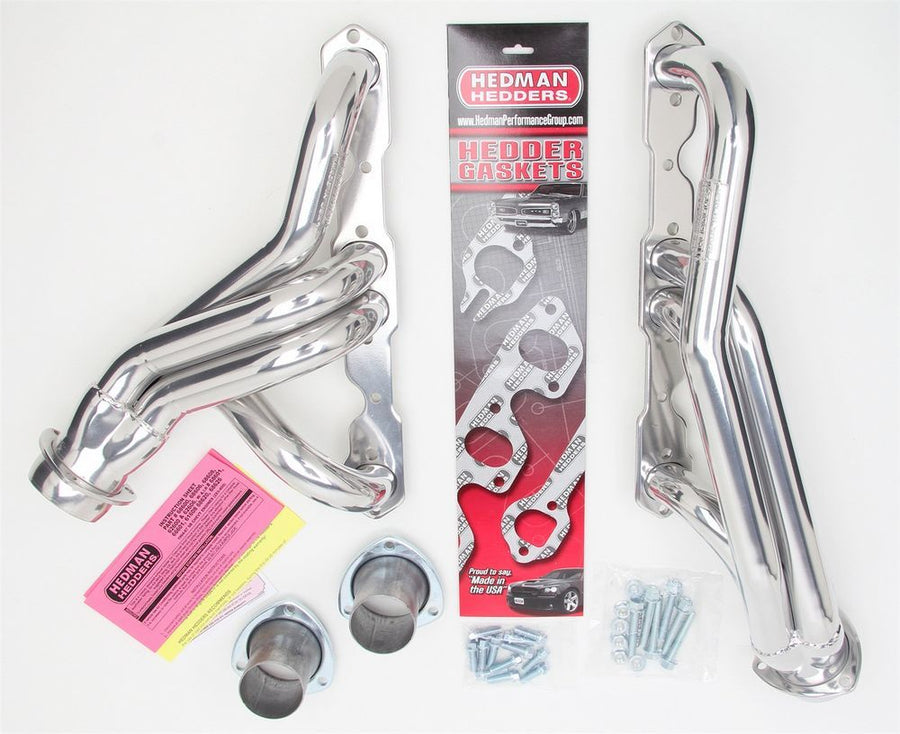

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27560 |
| Replacement Head Flange Gasket | 27560 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Tube Material Thickness | 16g |
| Tube Design | Standard |
| Tube Style | Mid-Length |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Special Engine Notes | Designed for use with the SB Chevy engine located in the factory position. |
| Product Details | The short, compact design of these headers allows truck builder to raise the exhaust system higher for maximum ground clearance. HTC ceramic-metallic coating to protect against heat and corrosion. Finish also helps lower engine compartment temperatures. |
| Material | Mild Steel |
| Tube Diameter | 1-3/4 in. |
| Motor Mounts Included | No |
| Tube Size | 1-3/4 in. |
| Variations | 69020 |
| with A.I.R. System | No |
| with EGR | No |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Engine | Chevy SB 283-400 (Gen 1) 1958-86 |
| Contents | headers, header gaskets, Reducers (exhaust adapters), header and collector bolts |
| Finish | HTC Polished Silver Ceramic-Metallic |
| Finish Type | HTC SILVER (polished) Ceramic-metallic Coating |
| Transmission Compatibility | Manual Trans. must Use TailShaft style crossmember or modify factory crossmember |
| Header Style | Mid-Length Tube |
| Materials | Mild Steel Construction with HTC. 16g Tubes; 5/16 in. Head Flanges |
| E.O. # | No |
| Chassis Compatibility | NOT For Vehicles With Offset (right) Engine Position! |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Header Port Shape | Rectangle |
| Port Shape | Rectangle |
| Flange Style | Standard |
| Power Steering | Yes |
| Air Conditioning Notes | 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket. |
