Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.
ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.
These MID-LENGTH headers fit Big Block Chevy V8 powered 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with many 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.

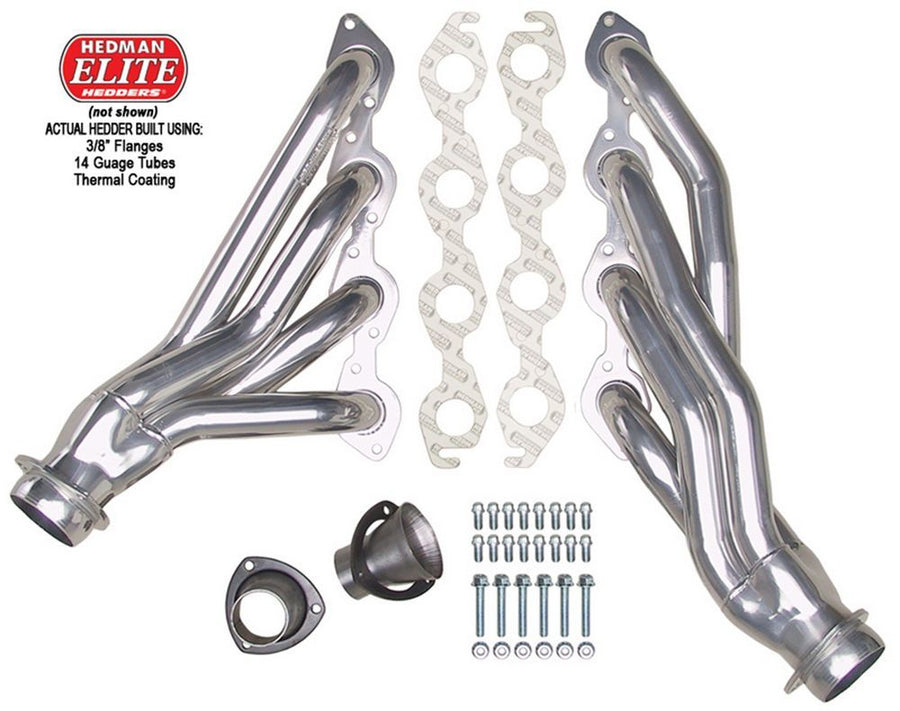

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Hedman Hedders ELITE Hedders; 1-3/4 in. Tube Dia.; 3 in. Coll.; Mid-Length Design 68618
Specifications:
| Description_DEF | [B@11c52b58 |
| Description_DES | [B@426047d4 |
| Description_EXT | [B@3823a1ea |
| Description_FAB | [B@2fce123d |
| Description_FAB | [B@17e96377 |
| Description_FAB | [B@57f7c8b9 |
| Description_FAB | [B@727e0f5c |
| Description_FAB | [B@2d7ea4d4 |
| Description_FAB | [B@715088d7 |
| Description_INV | [B@188b2444 |
| Description_MKT | [B@1a0ddce6 |
| Description_SHO | [B@428d8377 |
| Title | HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Matte Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Oval |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket | 27550 |
| Replacement Head Flange Gasket | 27550 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System | No |
| Tube Size | 1-3/4 in. |
| Tube Style | Mid-Length |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 14g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Mid-Length Tubes |
| Tube Diameter | 1-3/4 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 68616, 68618 |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 14g |
| Primary Tube Diameter (in) | 1.75 in. |
| Flange Thickness | 0.375 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 67-81 F; 68-77 A; 68-79 X; 65-74 Chevy Pass. Car 396-502 |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Finish | Matte Silver Ceramic-Metallic |
| Finish Type | MATTE SILVER Ceramic-metallic coated |
| Header Style | Mid-Length Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape | Oval |
| Header Port Shape | Oval Port |
| Flange Style | Standard |
| Key Feature | Without A.I.R. |
| Power Steering | Yes |
