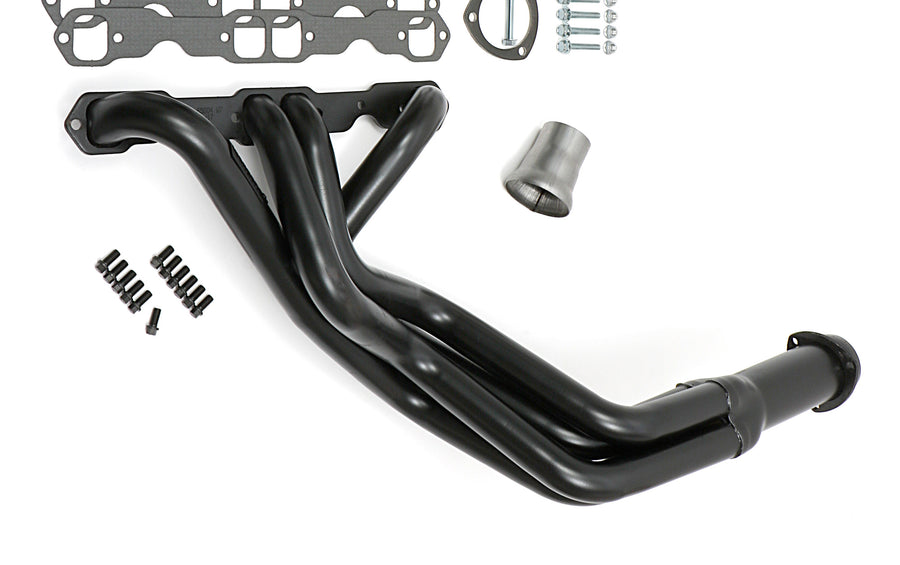

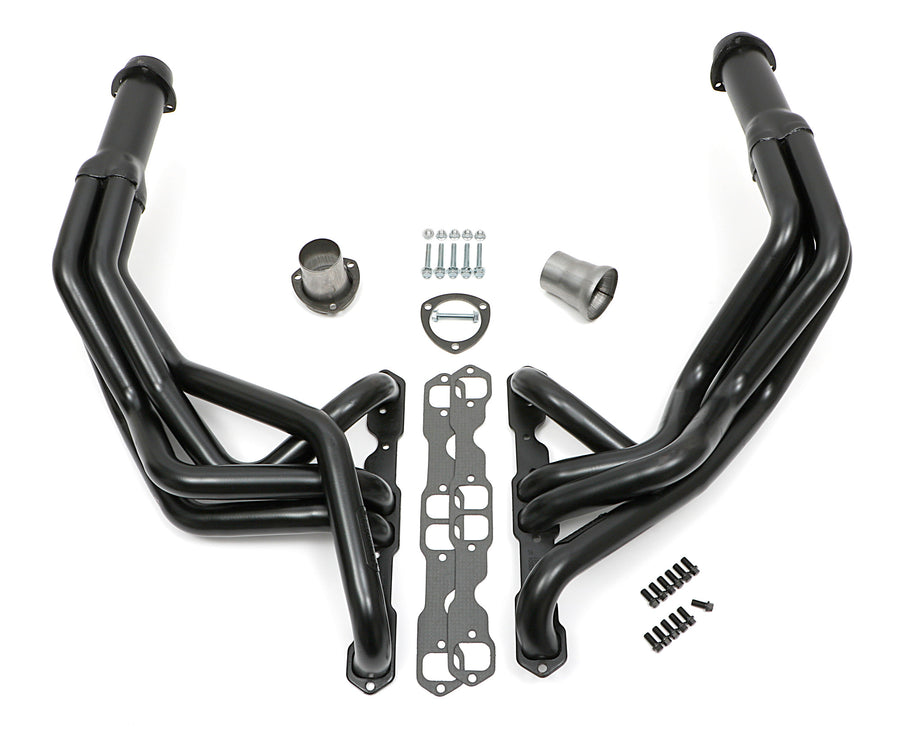

Hedman Hedders Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design 65004
Specifications:
| Description_DEF | [B@41b05253 |
| Description_DES | [B@438724b7 |
| Description_EXT | [B@7cfd4e12 |
| Description_FAB | [B@19d27169 |
| Description_FAB | [B@5a339aca |
| Description_FAB | [B@20ebbfa7 |
| Description_FAB | [B@36f0f876 |
| Description_FAB | [B@3c239ef8 |
| Description_FAB | [B@7a80a67c |
| Description_INV | [B@76b280c |
| Description_SHO | [B@36e953df |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Cylinder Head | Stock Profile Heads |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Rectangle |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27560 |
| Replacement Head Flange Gasket | 27560 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System | No |
| Tube Size | 1-3/4 in. |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 16g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Tube Diameter | 1-3/4 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | Yes |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 66004 |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.75 in. |

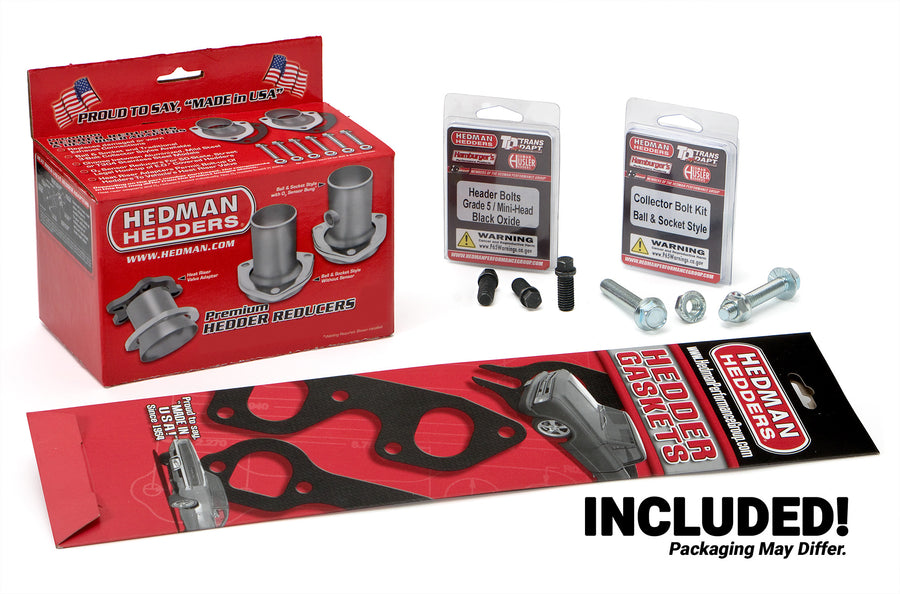

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 55-57 Chevy Car 283-400 |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Header Style | Long Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Header Port Shape | Rectangle |
| Port Shape | Rectangle |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
