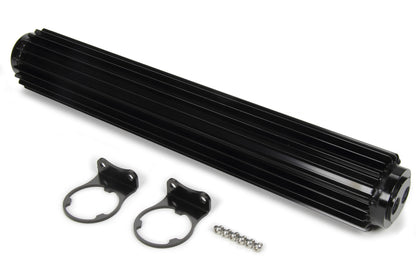

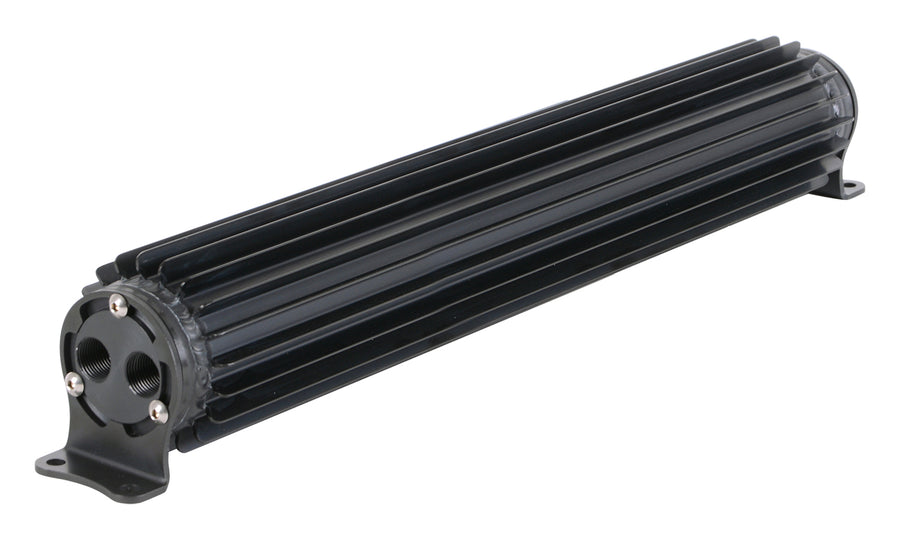

The Derale 2 Pass Heat Sink Cooler in black anodized finish is a redesigned all-aluminum cooler that uses internal and external fins to maximize heat transfer. Both ports exit the same end, which eases routing in tight spaces, and removable brackets let the cooler be clocked for easier installation. The slim 3 inch diameter body mounts in many locations, and this 20 inch dual pass model suits fuel and power steering systems as well as engine oil and transmission fluid in light-duty applications. Hose barbs are included.
Specifications:
- Cooler style: Heat sink, dual pass
- Construction: All-aluminum
- Finish: Black anodized
- Ports: Dual 3/8 inch NPT, both on one end
- Fitting size: 3/8 inch hose barb

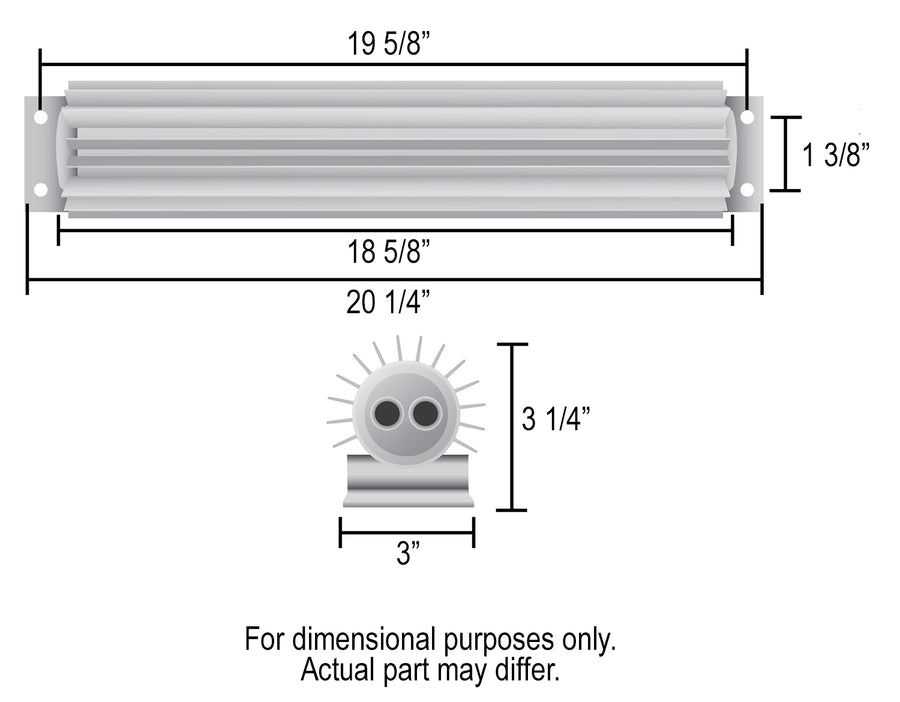

- Overall length: 20-1/4 in
- Core length: 18-5/8 in
- Height: 3-1/4 in
- Diameter: 3 in
- Mounting dimensions: 19-5/8 in x 1-3/8 in
- Fluid capacity: 22 oz
- Pressure rating: 250 psi working, 300 psi burst
- Part number: 13282
FAQ
What is the Derale 13282 cooler used for?
It is a universal, light-duty heat sink cooler for fuel and power steering fluid that can also cool engine oil or transmission fluid.
Where are the ports located?
Both 3/8 inch NPT ports exit the same end of the cooler, which makes routing easier in tight spaces. 3/8 inch hose barbs are included.
What finish is it?
The cooler has a black anodized finish for a low-profile, blacked-out look.
How big is the cooler?
It measures 20-1/4 inches overall with an 18-5/8 inch core, 3-1/4 inches tall and 3 inches in diameter.
