Fuel pulse dampers work in tandem with the fuel pressure regulator to further control fuel pressure in an EFI system, smoothing out the pressure pulsations caused by injectors opening and closing and by the fuel pump operating — pulsations too fast to see on an analog gauge but that can still disrupt fuel delivery.
Specifications:
- Category: Air and Fuel Delivery
- Product Type: Fuel Pulse Damper
- Sub Category: Fuel Injection System and Related Components
- Style: Billet Aluminum, Round
- Finish: Anodized Black
- Material: Aluminum
- Fuel Type: Gasoline / Ethanol / Methanol / E85
- Pressure Range: 40-70 PSI
- Thread: 3/4-16 Male O-Ring (8 AN)
- Warranty: Manufacturer's Limited 90 Day Warranty
- Part Number: 12-1003

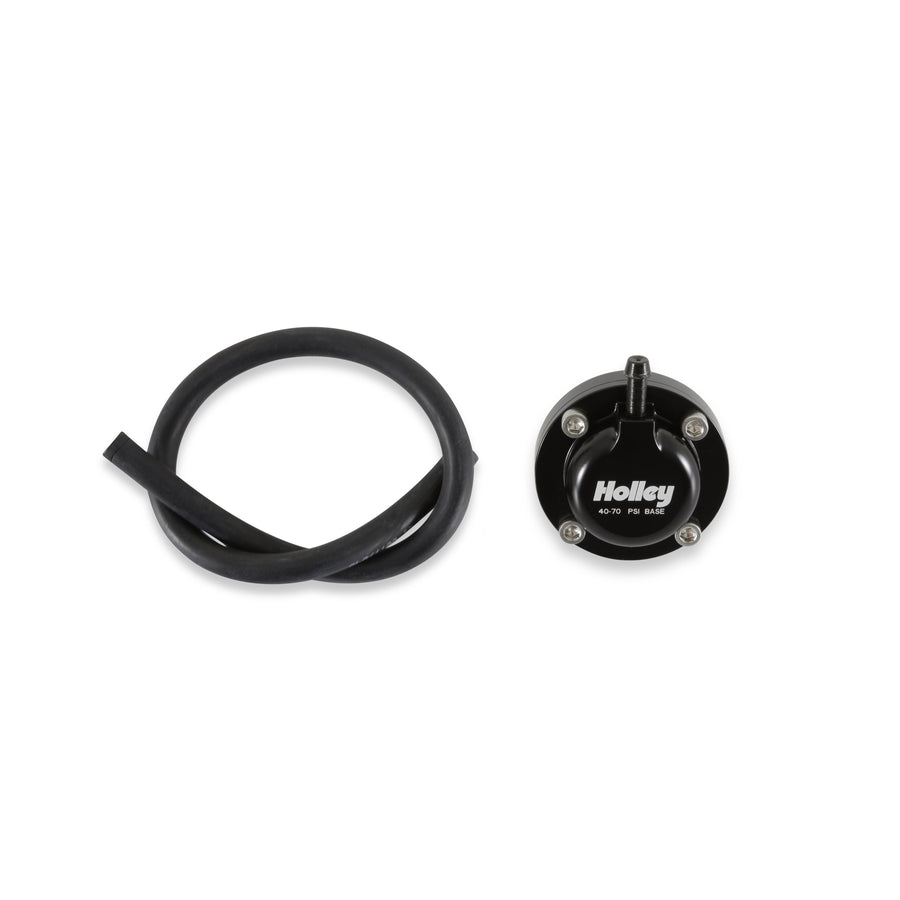

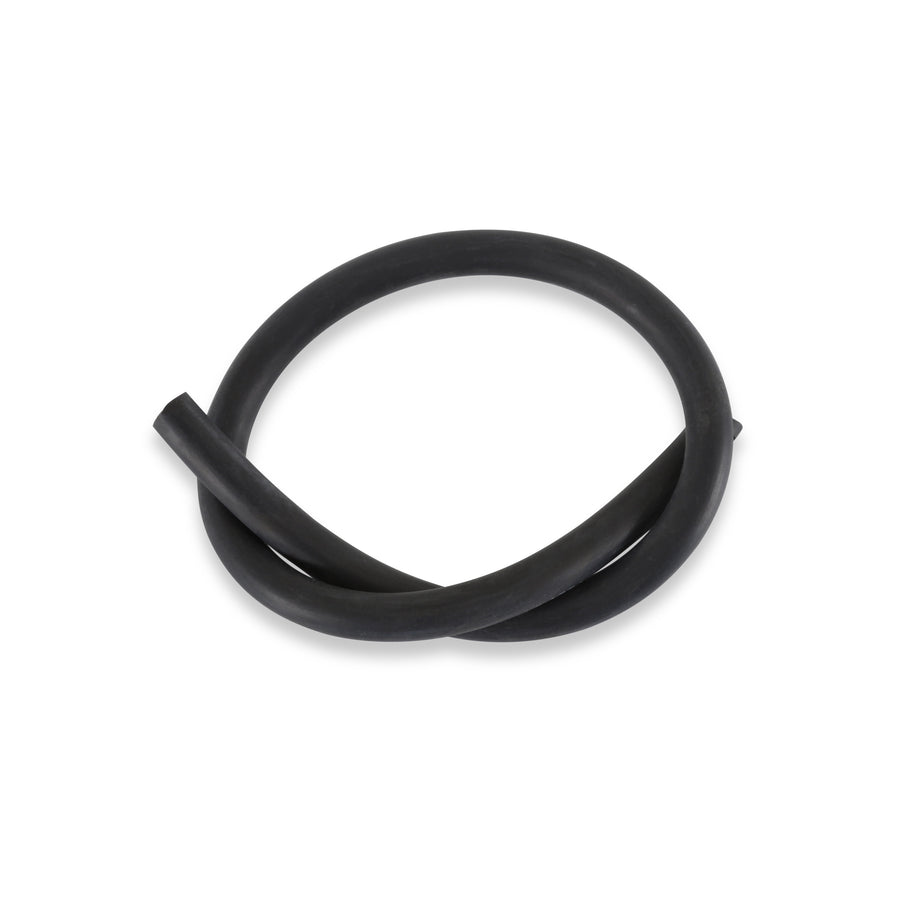

This direct-mount damper is built from fully anodized billet aluminum with stainless steel springs and a fluorosilicone diaphragm for broad fuel compatibility. Includes mounting fittings, a 1/8-inch NPT port for a mechanical pressure gauge or transducer, and a vacuum fitting with one foot of hose for vacuum referencing. Assembled and tested in the USA.
FAQ
What does a fuel pulse damper do?
It works with the fuel pressure regulator to smooth out pressure pulsations from the injectors and fuel pump that can disrupt fuel delivery.
What pressure range does this damper cover?
40-70 PSI.
What thread/fitting does this damper use?
A 3/4-16 male O-ring, 8 AN thread.
What fuels is this compatible with?
Gasoline, ethanol, methanol, and E85.
