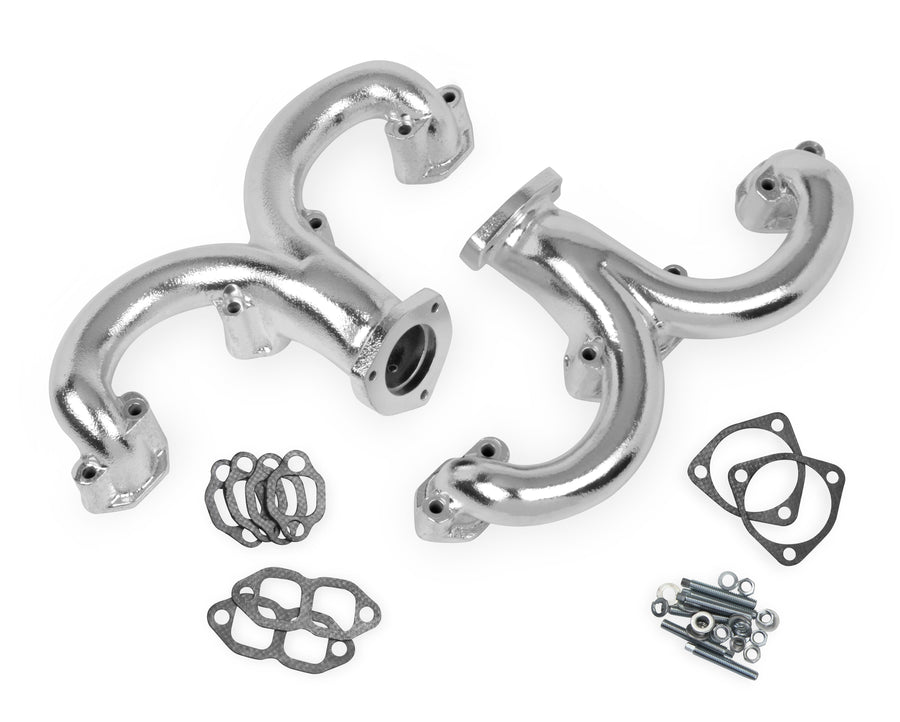

FlowTech Flowtech Rams Horn Exhaust Manifolds - Chrome 11704-2FLT
Specifications:
| Bolt size | 3/8-16 x 3/4 |
| Brand | Flowtech Exhaust |
| CARB (California) Compliant | No |
| Category | Exhaust |
| Collector Diameter | 2.25 |
| 2877 | 2.25 |
| 17 | Silver |
| Design | Ram Horn |
| Emission Code | 3 |
| Engine | Chevrolet Small Block Gen I |
| 200 | Chrome |
| Flange Style | Square Port |
| 353 | Yes |
| Gaskets Included | Yes |
| 3390 | Performance |
| Hardware Included | Yes |
| Header Finish | Chrome |
| Header Style | Ram Horn |
| 8611 | No |
| 10 | Steel |
| 30 | Yes |
| 356 | 6 |
| 2878 | No |
| Pack Qty | Pair |
| part type | Exhaust Manifold |
| 1905 | Oval |
| Primary Tube Dia. | 1-5/8 inch |
| Primary Tubing Diameter | 1-5/8 |
| Primary Tubing Diameter | 1.625 |
| Product Type | Manifold |
| Sub Category | Exhaust Manifolds |
| Tube Diameter | 1.625" |
| Warning | California Proposition 65 |
| Bolt size | 3/8-16 x 3/4 |
| Brand | Flowtech Exhaust |
| CARB (California) Compliant | No |
| Category | Exhaust |
| Collector Diameter | 2.25 |
| 2877 | 2.25 |
| 17 | Silver |
| Design | Ram Horn |
| Emission Code | 3 |
| Engine | Chevrolet Small Block Gen I |
| 200 | Chrome |
| Flange Style | Square Port |
| 353 | Yes |
| Gaskets Included | Yes |
| 3390 | Performance |
| Hardware Included | Yes |
| Header Finish | Chrome |
| Header Style | Ram Horn |
| 8611 | No |
| 10 | Steel |
| 30 | Yes |
| 356 | 6 |
| 2878 | No |
| Pack Qty | Pair |
| part type | Exhaust Manifold |
| 1905 | Oval |
| Primary Tube Dia. | 1-5/8 inch |
| Primary Tubing Diameter | 1-5/8 |
| Primary Tubing Diameter | 1.625 |
| Product Type | Manifold |
| Sub Category | Exhaust Manifolds |
| Tube Diameter | 1.625" |
| Warning | California Proposition 65 |
| Description_ABR | EXHAUS SMALL |
| Description_SHO | EXHAUS SMALLBLOCK CH |
| Description_INV | SMALLBLOCK CHEVY RAM HORN MANIFOLD - CHR |
| Description_ASC | Manifold to head bolts not included. Header Dimensions: Width of Header at widest point from exhaust flange- 3.823" Height of Header from highest to lowest point - 7.13" Length of Header from leading edge to trailing edge - 18.623" Cylinder Head surface to outside point - 3.52" Bolt center to top of manifold - 3.51" Manifold bolt center to bottom of collector - 5.50" Collector mounting bolt hole center to center - 3.031" |
| Description_DES | Flowtech Rams Horn Exhaust Manifolds - Chrome |
| Description_EXT | Small Block Chevy Rams Horn Exhaust Manifolds, 1-5/8" primary diameter, 2-1/4" Collector, Chrome Finish |
| Description_MKT | Flowtech exhaust manifolds are the perfect combination of quality and value. These Rams horn exhaust manifolds fit all popular hot rods with the popular small block Chevy engine. |
| Description_FAB | Tight fit block hugger design for popular hot rods powered by the popular small block Chevy motors |
| Description_FAB | Cast iron construction styled in the vintage “Rams Horn” design for maximum engine clearance and maximum strength |
| Description_FAB | Smooth transition, 1-5/8” diameter primaries are used for increased exhaust flow increasing performance and improving throttle response |

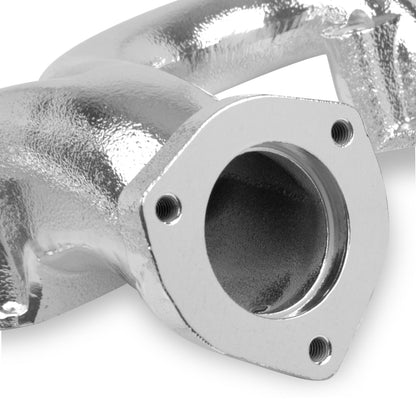

| Description_FAB | 3/8” thick 2-1/4” collector for maximum strength |

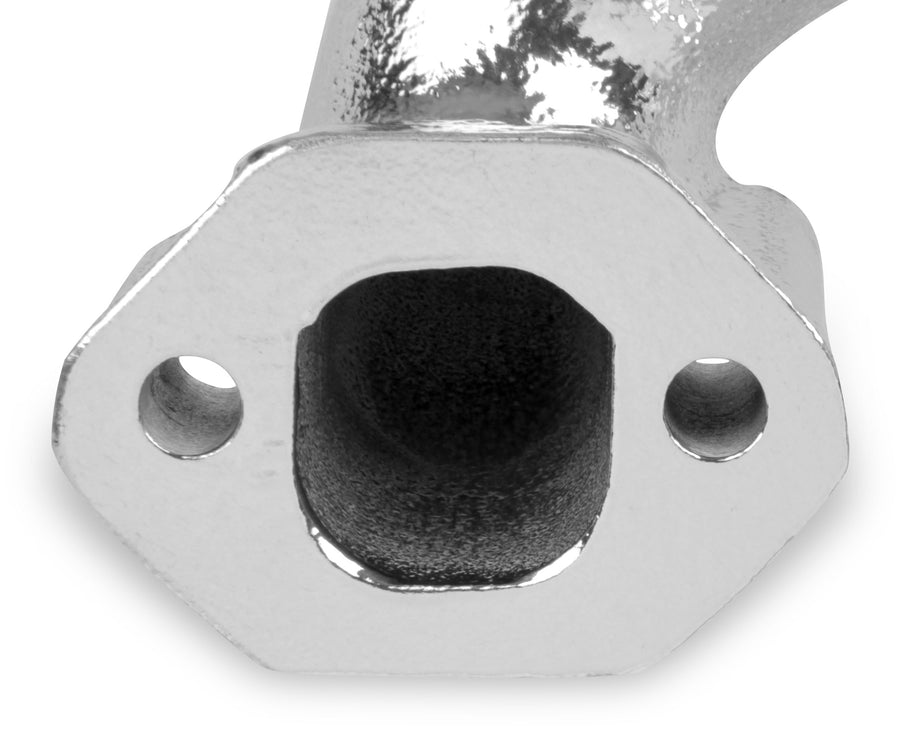

| Description_FAB | Thick manifold flange pads for a leak-free seal and maximum strength |
| Description_FAB | Premium aluminum manifold gaskets and collector hardware is included |
| Description_FAB | This manifold is coated in high luster show quality chrome for a classic finish |
| Description_FAB | Sold as a pair |
