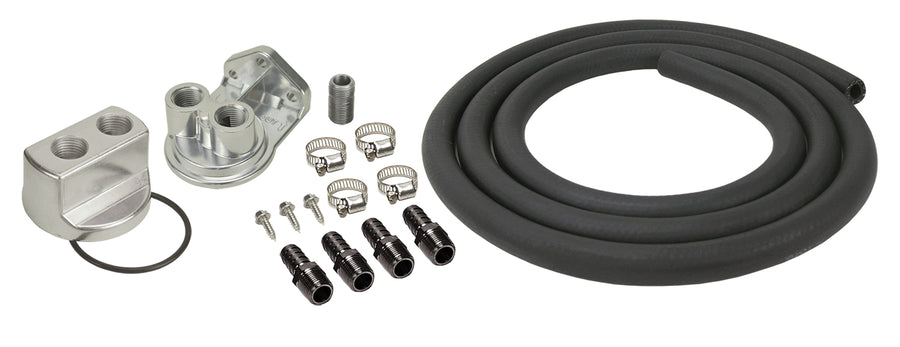

The Derale 15725 is an engine oil filter relocation kit that moves the spin-on oil filter to a convenient, easy-to-reach location for faster, cleaner filter changes. It uses a die-cast aluminum ports-up filter mount with 1/2 inch NPT ports and a Type O spin-on adapter with a 22 x 1.5mm thread that installs where the factory filter mounts. The kit includes 10 feet of 1/2 inch OEM-spec hose to connect the engine to the remote filter mount.
Specifications:
- Type: Engine oil filter relocation kit
- Filter mount: Die-cast aluminum, ports up
- Mount port size: 1/2 inch NPT

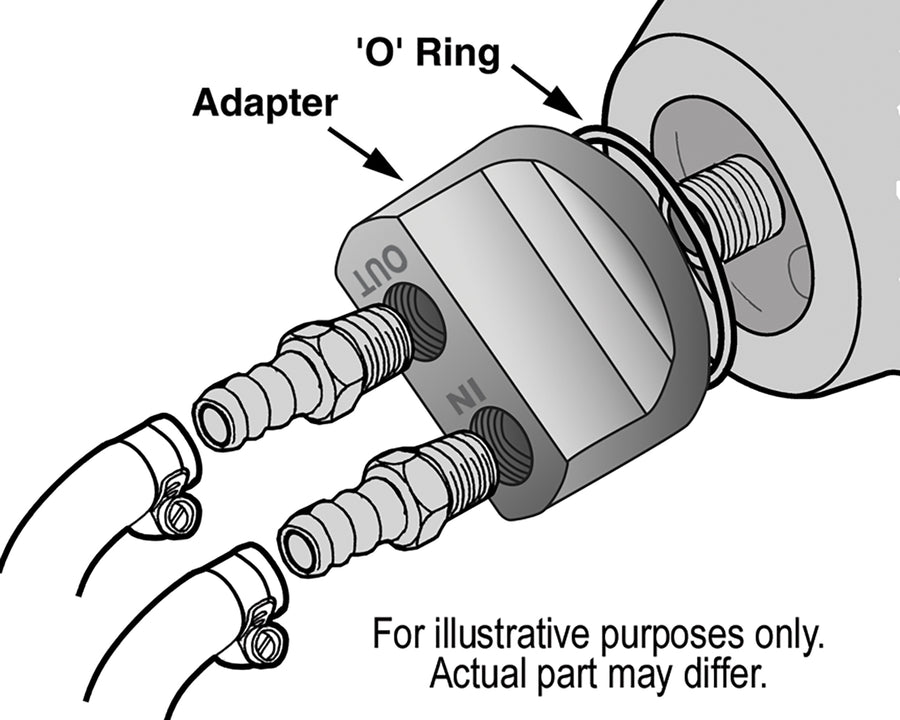

- Spin-on adapter: Type O, 22 x 1.5mm thread, 1-3/4 inch thick
- Adapter inlet: 1/2 inch NPT
- Remote filter thread: 3/4 inch-16
- Remote filter landing: 2-1/2 inch, 2-3/4 inch
- Filter: Fram PH8A or equivalent
- Hose: 1/2 inch, 10 ft included
- Part number: 15725
FAQ
What does the Derale 15725 do?
It relocates the engine oil filter to an easy-access spot, so filter changes are faster and cleaner.
What engine thread does the 15725 adapter use?
The Type O spin-on adapter has a 22 x 1.5mm thread and a 1/2 inch NPT inlet.
What filter fits the 15725 remote mount?
The remote mount uses a 3/4 inch-16 thread and accepts a Fram PH8A filter or equivalent.
What is included with the 15725?
It comes with the die-cast aluminum filter mount, the 22 x 1.5mm spin-on adapter, and 10 feet of 1/2 inch hose.
