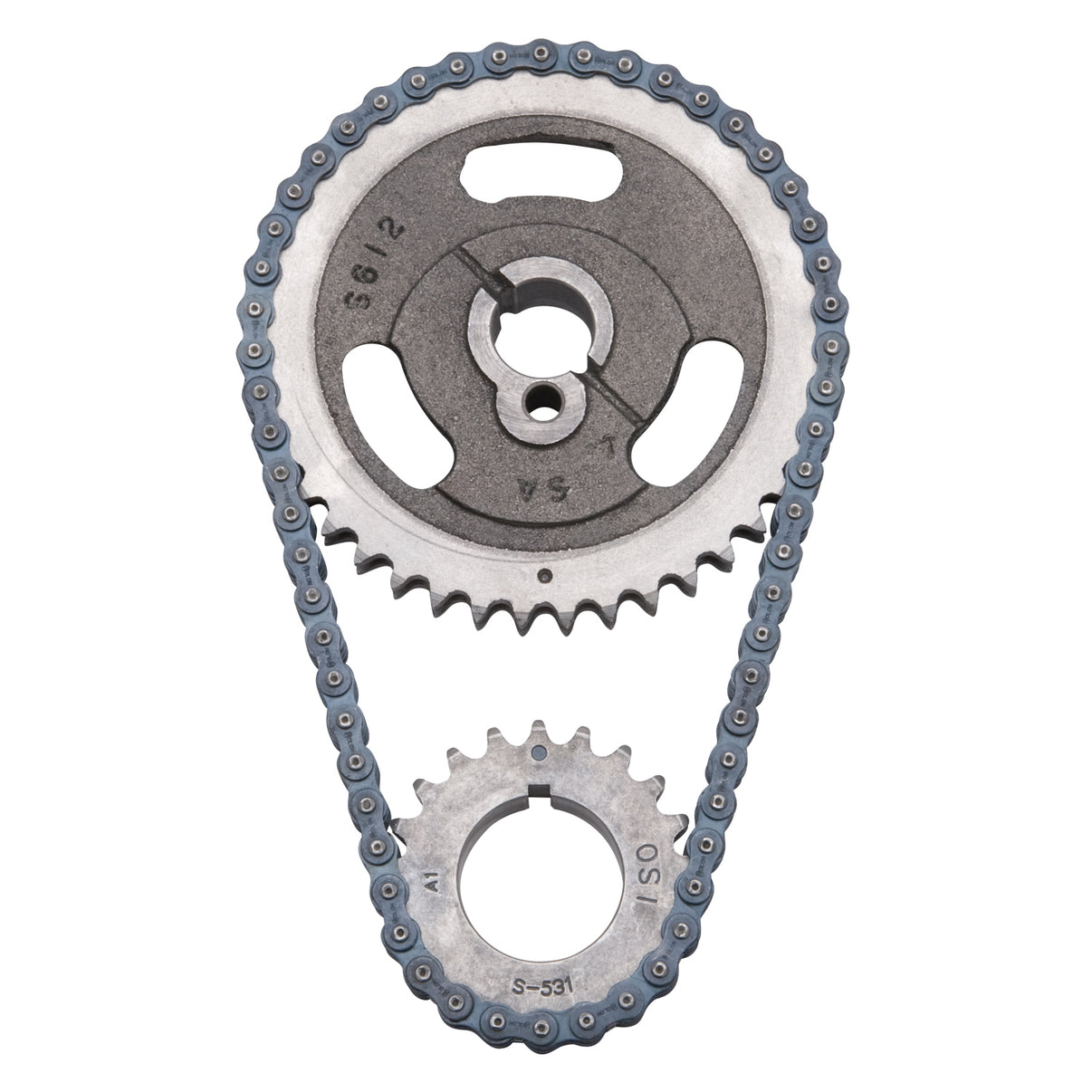

The Edelbrock 7814 is a Performer-Link timing chain set for small-block Ford 221-351W engines, for use with Edelbrock or stock camshafts. It is a stock replacement set with a single roller chain and no keyway adjustment. The chain is a solid-bushing roller design. The cam sprocket is cast iron with 35,000 psi tensile strength, and the crank sprocket is billet SAE-1144 steel, induction heat treated. The set is not for use above 6,500 RPM.
Notes:
- Not for use above 6,500 RPM.
- Never hammer directly on the chain or sprockets; use a sleeve if hammering is required.
- Check clearance between the chain and block and between the chain and front cover, and make sure the cam and crank sprockets are aligned before reassembly.
Specifications:
- Brand: Edelbrock
- Part Number: 7814
- Part Type: Engine Timing Set
- Keyway Adjustable: No
- Chain Type: Single Roller
- Timing Chain Type: Single Roller
- Manufacturer warranty: 12 months
Engine Applications
- Ford Small-Block: 221 (3.6L)-351W (5.8L)
Vehicle Applications
- Ford: Bronco 1984-1995; Country Squire 1987-1991; E-150 Econoline 1984-1995; E-150 Econoline Club Wagon 1984-1995; E-250 Econoline 1984-1995; E-250 Econoline Club Wagon 1985-1991; E-350 Econoline 1985-1995; E-350 Econoline Club Wagon 1985-1995; F-150 1984-1995; F-250 1984-1995; F-350 1985-1995; LTD 1984-1986; LTD Crown Victoria 1987-1991; Mustang 1984-1995; Thunderbird 1984-1993
- Lincoln: Continental 1984-1987; Mark VII 1984-1992; Town Car 1984-1990
- Mercury: Capri 1984-1986; Colony Park 1987-1991; Cougar 1984-1993; Grand Marquis 1984-1991
Grouped by make, with model years for each model (22 models, 193 year, make and model combinations).
Emissions Status
- Stock replacement part made to original-equipment specifications. Use it only on the specific year, make and model it is made for.
FAQ
What engines does the Edelbrock 7814 fit?
Small-block Ford V8s from 221 to 351W.
What chain does the 7814 use?
A single roller, solid-bushing chain.
Is the 7814 timing adjustable?
No. It is a stock replacement set with a single roller chain and no keyway adjustment.
What is the RPM limit of the 7814?
Performer-Link timing sets are not for use above 6,500 RPM.
Is the Edelbrock 7814 street legal?
It is a stock replacement part made to OE specifications, for the specific year, make and model it is made for.
California Proposition 65: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
