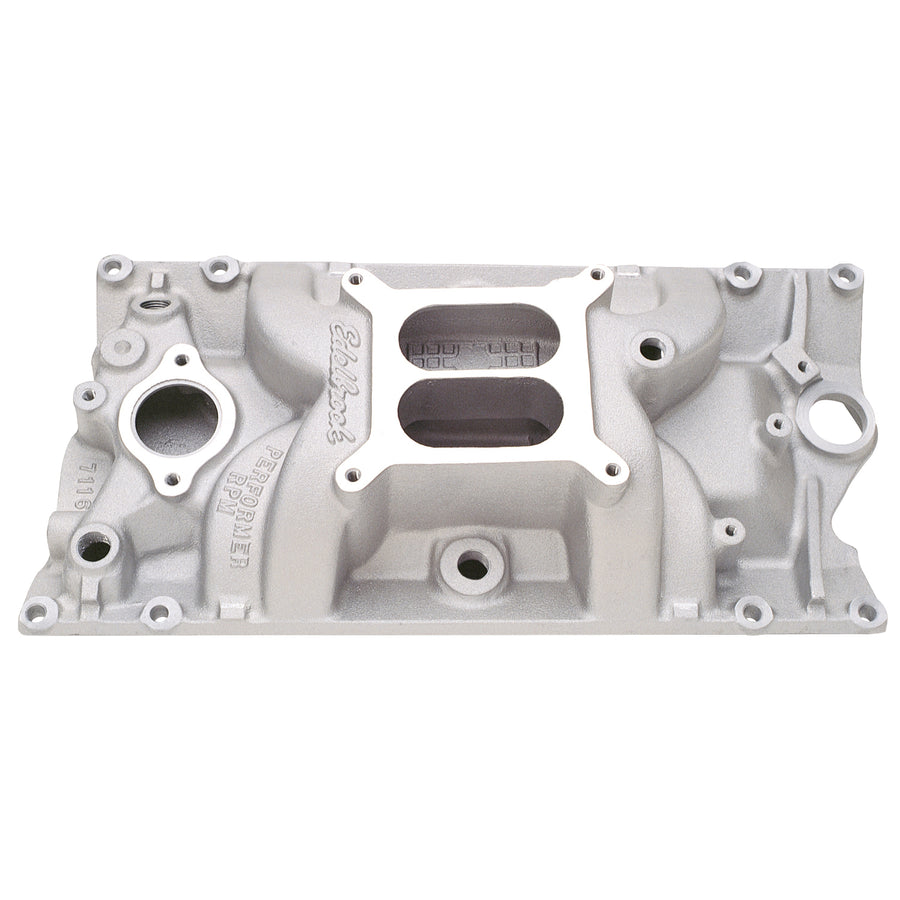

Edelbrock Engine Intake Manifold 7116
Regular Price
$399.95
Edelbrock part #7116 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood.
Edelbrock Engine Intake Manifold 7116
Specifications:
| Vehicle Model | Chevrolet |
| Basic Operating RPM Range | 1500-6500 |
| Material | Aluminum |
| Finish | Satin |
| Flange Type | 4150 |
| Series | Performer RPM |
| Rear Maximum Height | 5.250 |
| Grade Type | Performance |
| Single Or Dual Plane Type | Dual |
| CNC Ported | No |
| EGR Port | No |
| Gasket Or Seal Included | No |
| Front Maximum Height | 4.200 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height | 4.720 |
| Description_ABR | Intake Mnfld |
| Description_INV | RPM Vortec Intake Manifold |
| Description_LAB | Performer RPM Small Block Chevy Vortec Intake Manifold |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/305 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Performer RPM Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #7116 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood. |
| Description_TRA | Manifold ht: A-4.20", B-5.25" (.70" taller than #2101) |
| Description_TRA | Carb pad height: 4.27" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8032 for 1972-78. |
| Description_TRA | Port exit dimensions: 2.05" tall with slanted side walls |
| Description_TRA | Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Use #8516 Edelbrock bolt kit |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032. |
| Description_TRA | Edelbrock does not recommend the use of an economy type carburetor such as the Performer series #1406 or #1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_DEF | Engine Intake Manifold |
