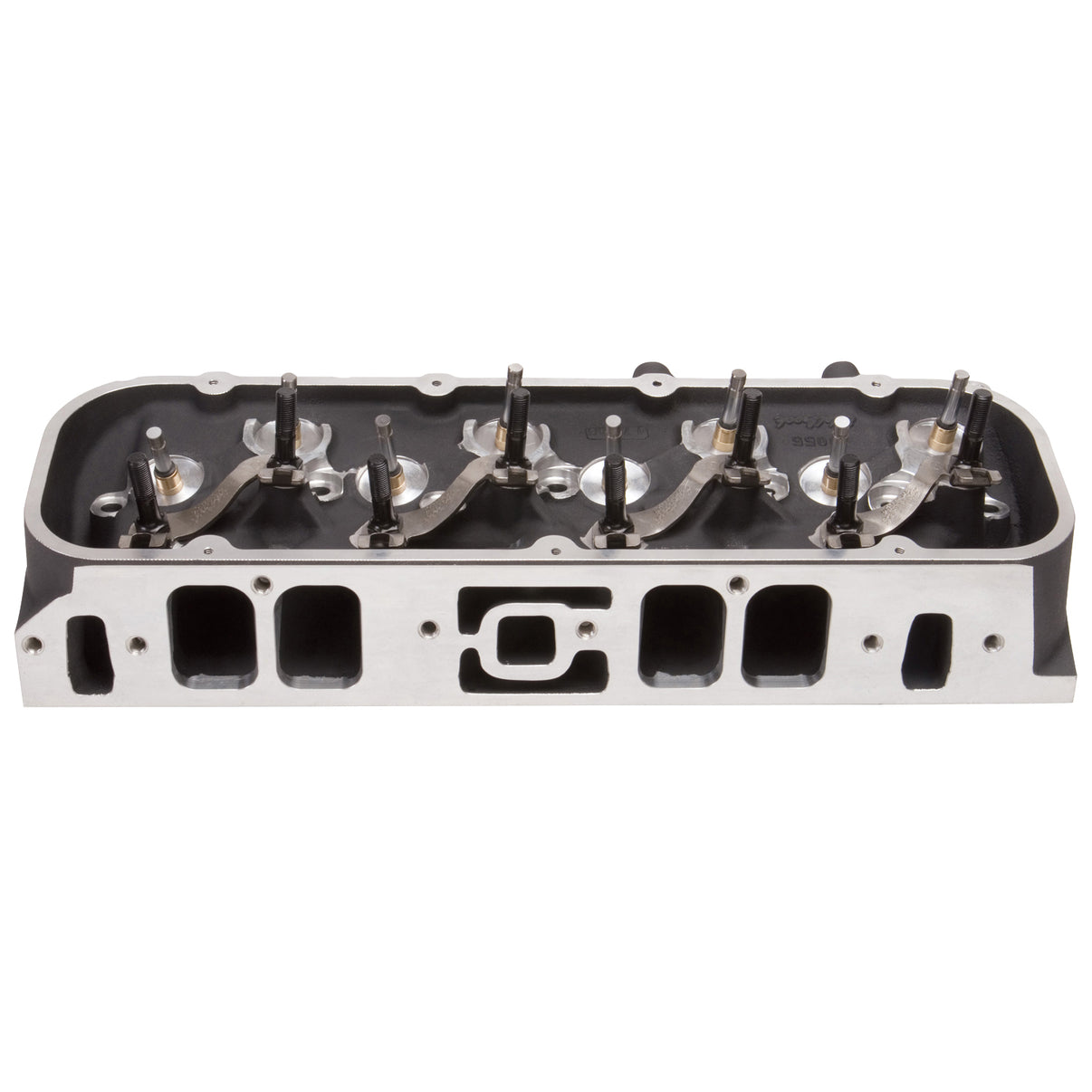

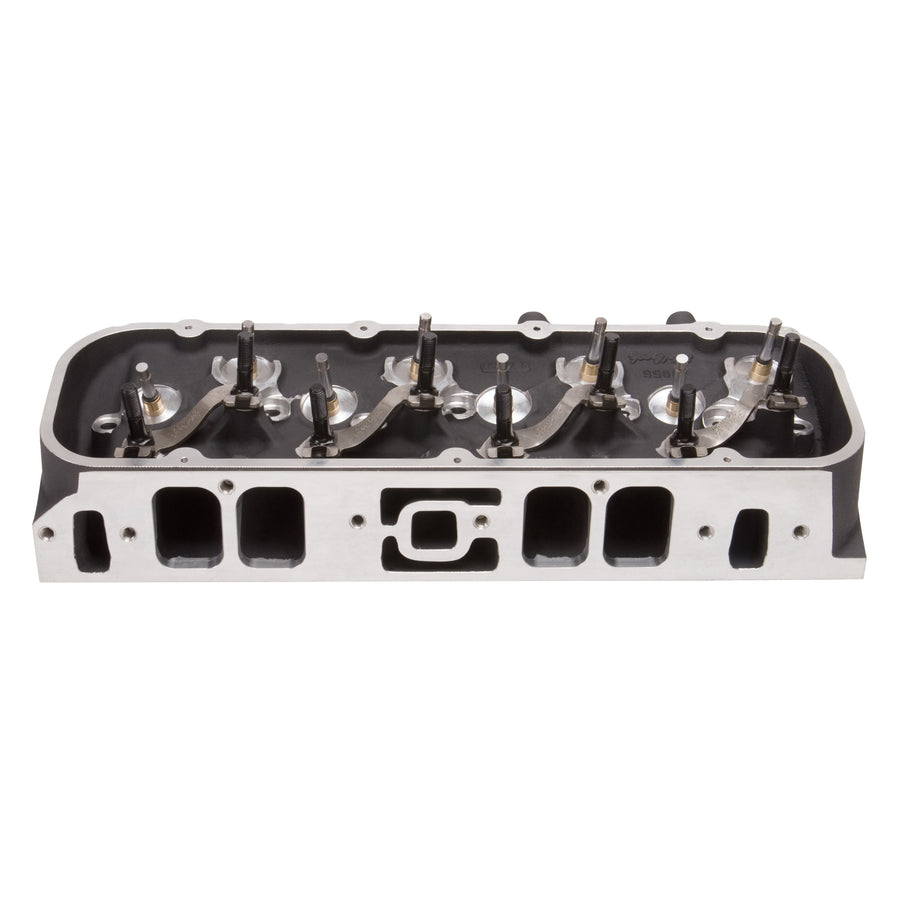

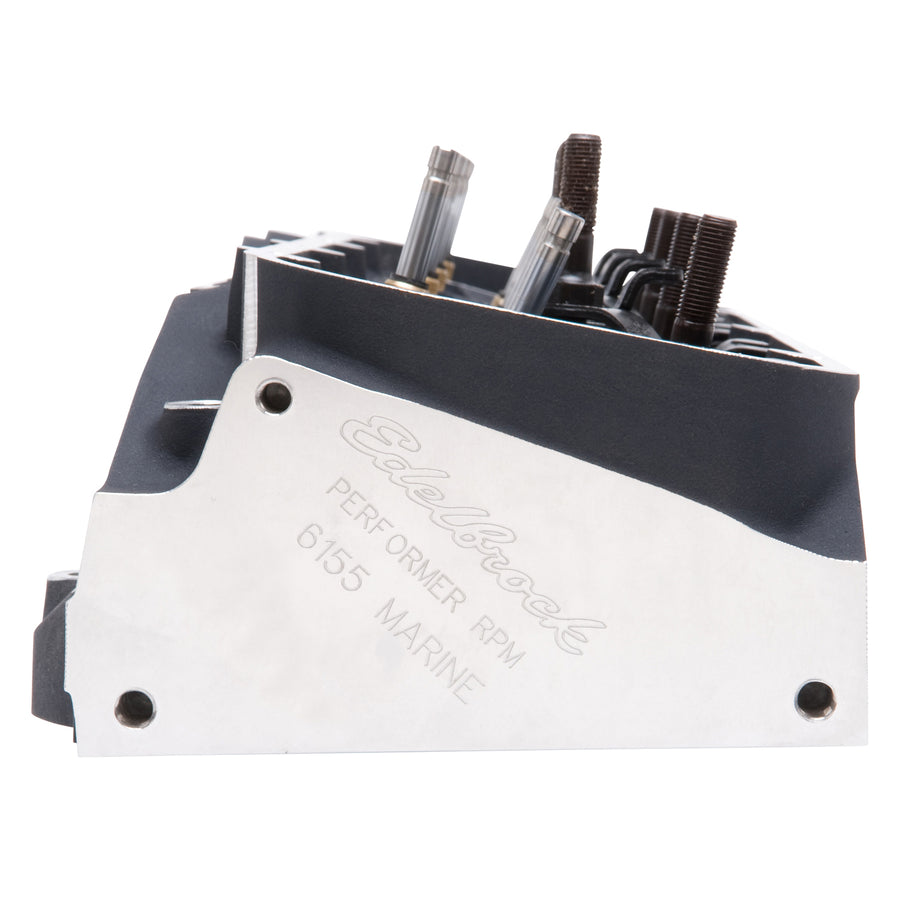

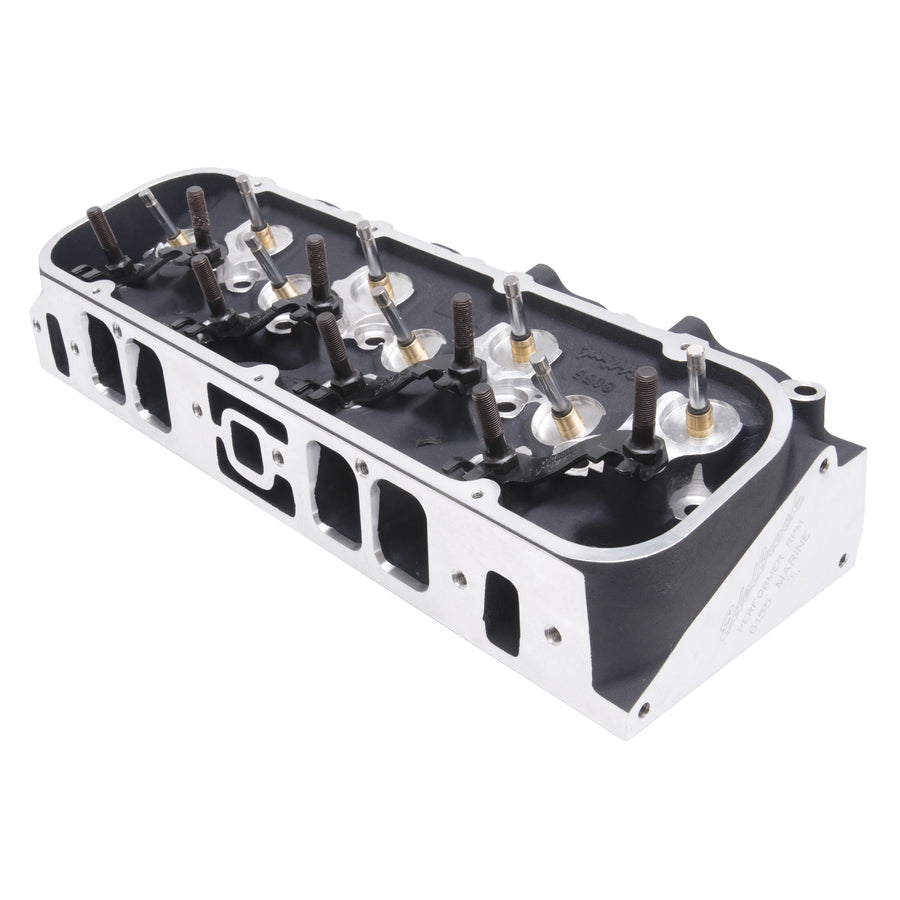

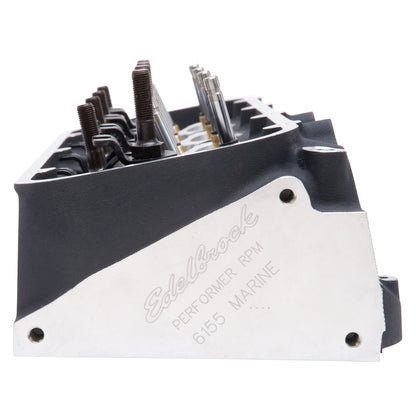

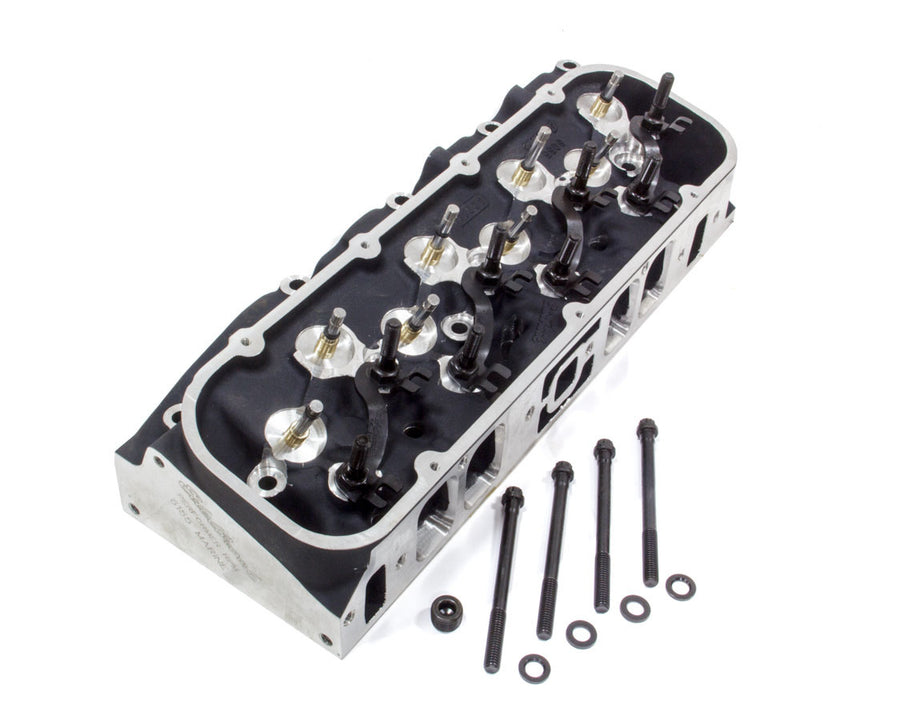

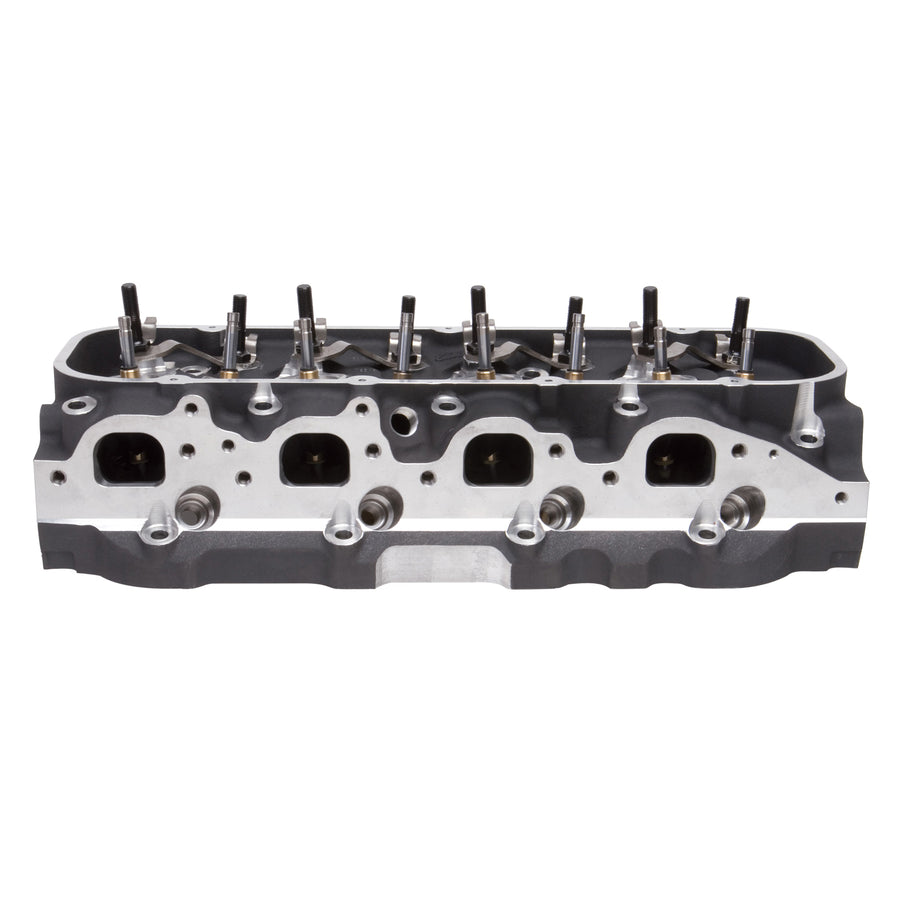

Edelbrock Engine Cylinder Head 61559
Regular Price
$1,702.95
The Edelbrock #61559 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61559 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

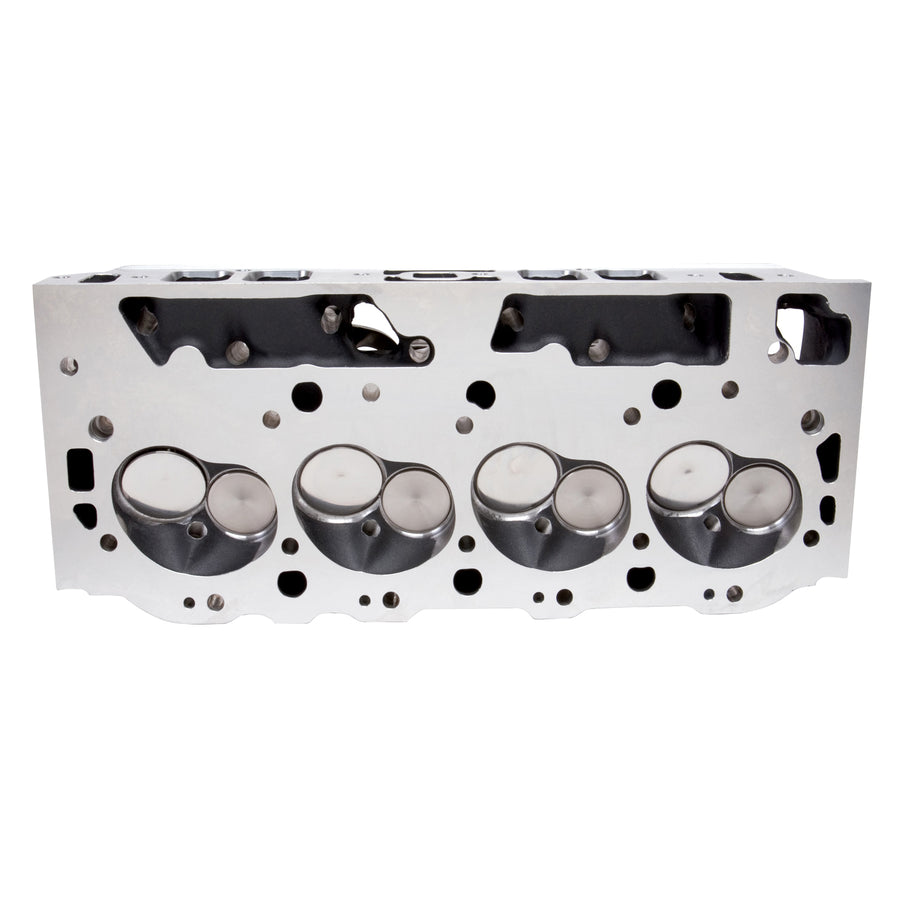

Edelbrock Engine Cylinder Head 61559
Specifications:
| Valve Stem Diameter | 0.3438 |
| Seat Material | Ductile Iron |
| Push Rod Diameter | (Suggested) 0.375 |
| Guide Plates Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Exhaust Valve Diameter | 1.89 |
| EGR Port | No |
| Exhaust Runner Volume | 110 |
| Material | Aluminum |
| Grade Type | Performance |
| Construction Type | Bare With Valves |
| Deck Thickness | 0.5625 |
| Head Casting Number | N/A |
| Valve Springs Included | No |
| Guide Material | Manganese Bronze |
| Exhaust Port Location | Standard |
| Series | Performer RPM |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Flange Type | Rectangle Intake |
| Horsepower | 500-600 |
| Combustion Chamber Volume | 118 |
| Quantity | Sold Individually |
| Retainer Included | No |
| Valve Included | Yes |
| Valve Angle | 26 |
| Guide Plate Material | Hardened Steel |
| CNC Ported | Yes |
| Intake Runner Volume | 315 |
| Family | Performer RPM |
| Intake Valve Diameter | 2.25 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | RPM Marine Big-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_EXT | Edelbrock part #61559 Performer RPM Marine-Duty cylinder heads are designed for use with Rectangular Port Big-Block Chevy Marine applications. |
| Description_MKT | The Edelbrock #61559 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61559 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | Heavy-duty, 1.89" Inconel exhaust valves provide added durability for marine applications |
| Description_TRA | Hard anodized black to protect the aluminum cylinder heads in the harsh marine environment |
| Description_TRA | Sold with valves only to allow for valve spring choices |
| Description_TRA | Match with an Edelbrock Performer RPM manifold, Performer Series 750 cfm marine carb and Performer RPM cam for proven performance |
| Description_TRA | Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight |
| Description_DEF | Engine Cylinder Head |
