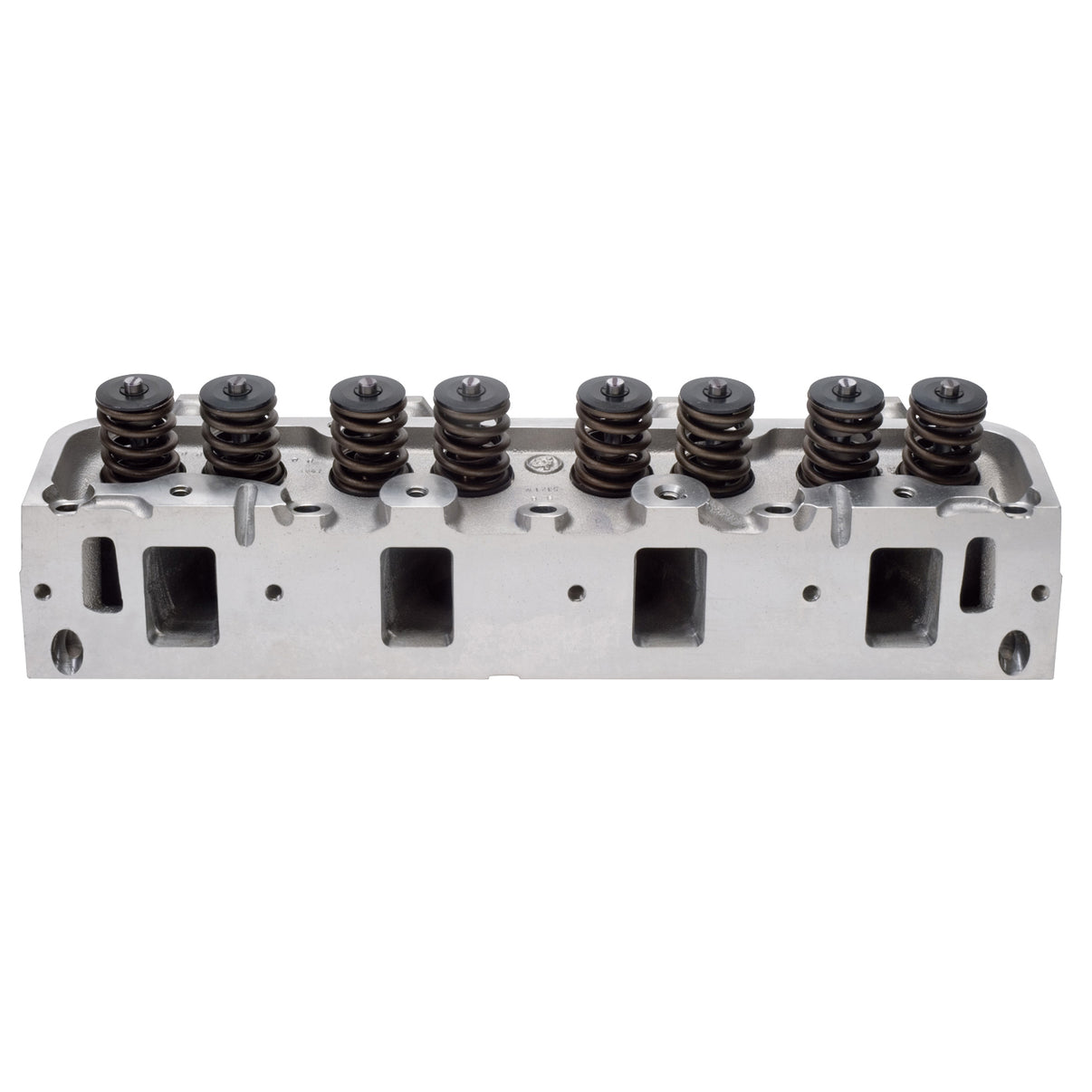

The Edelbrock 60069 is a Performer RPM aluminum cylinder head for Ford FE V8s, designed for 1961-1976 390, 427 and 428 applications. It has 170 cc intake runners, 125 cc exhaust runners, 72 cc combustion chambers, 2.09 in intake and 1.66 in exhaust valves, and a 13 degree valve angle. It is designed for 1,500 to 6,500 RPM and comes complete with valves, springs and retainers for flat tappet camshafts. Sold as a single head.
Notes:
- Designed for flat tappet camshafts, with valve springs rated to 0.600 in maximum lift.
- Sold individually; order two for a V8.
Specifications:
- Brand: Edelbrock
- Part Number: 60069
- Part Type: Engine Cylinder Head
- Series: Performer RPM
- Material: Aluminum
- Intake Valve Diameter: 2.09 in
- Valve Angle: 13 Degree
- Intake Runner Volume: 170 cc
- Camshaft Type: Flat Tappet
- Horsepower: 450-550 HP
- Seat Angle: Exhaust 45 deg/Intake 60 deg
- Pushrod Diameter: 0.3750 (3/8) in
- Valve Spring Diameter: 1.55 in
- Valve Spring Maximum Lift: 0.600 in
- Valve Stem Diameter: 0.375 in
- Exhaust Port Location: Standard
- Exhaust Runner Volume: 125 cc
- Guide Material: Manganese Bronze
- Exhaust Valve Diameter: 1.66 in
- EGR Port: No
- Valve Springs Included: Yes
- Seat Material: Ductile Iron
- Guide Plates Included: No
- Retainer Included: Yes
- Valve Included: Yes
- Deck Thickness: 0.625 in
- CNC Ported: No
- Construction Type: Complete
- Combustion Chamber Volume: 72 cc
- Sold as: Each
- Manufacturer warranty: 12 months
Engine Applications
- Ford FE: 332 (5.4L), 352 (5.8L), 360 (5.9L), 390 (6.4L), 406 (6.6L), 410 (6.7L), 427 (7.0L), 428 (7.0L)
Vehicle Applications
- 1968 Ford Country Sedan
- 1968 Ford Country Squire
- 1968 Ford Custom
- 1968 Ford Custom 500
- 1968 Ford Fairlane
- 1969 Ford Fairlane
- 1970 Ford Fairlane
- 1968 Ford GT40
- 1969 Ford GT40
- 1968 Ford Galaxie 500
- 1968 Ford LTD
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
- 1968 Ford Ranch Wagon
- 1968 Ford Ranchero
- 1969 Ford Ranchero
- 1969 Ford Thunderbird
- 1968 Ford Torino
- 1969 Ford Torino
- 1970 Ford Torino
- 1969 Mercury Comet
- 1968 Mercury Cougar
- 1969 Mercury Cyclone
- 1968 Mercury Montego
- 1969 Mercury Montego
Emissions Status
- For use on pre-pollution-controlled vehicles: 1965 and older U.S.-manufactured California-certified vehicles, 1967 and older U.S.-manufactured federally certified vehicles, and 1967 and older foreign-manufactured vehicles.
FAQ
What engines does the Edelbrock 60069 fit?
Ford FE V8s, designed for 1961-1976 390, 427 and 428 applications. The Ford FE family covers 332, 352, 360, 390, 406, 410, 427 and 428 cubic inch engines.
What are the chamber and runner sizes of the 60069?
72 cc combustion chambers, 170 cc intake runners and 125 cc exhaust runners.
Does the 60069 come assembled?
Yes. It is a complete head with intake and exhaust valves, valve springs and retainers installed.
Is the 60069 sold as a pair?
No. It is sold individually, so a V8 needs two.
Is the Edelbrock 60069 street legal?
It is for use on pre-pollution-controlled vehicles only and does not carry a CARB Executive Order.
