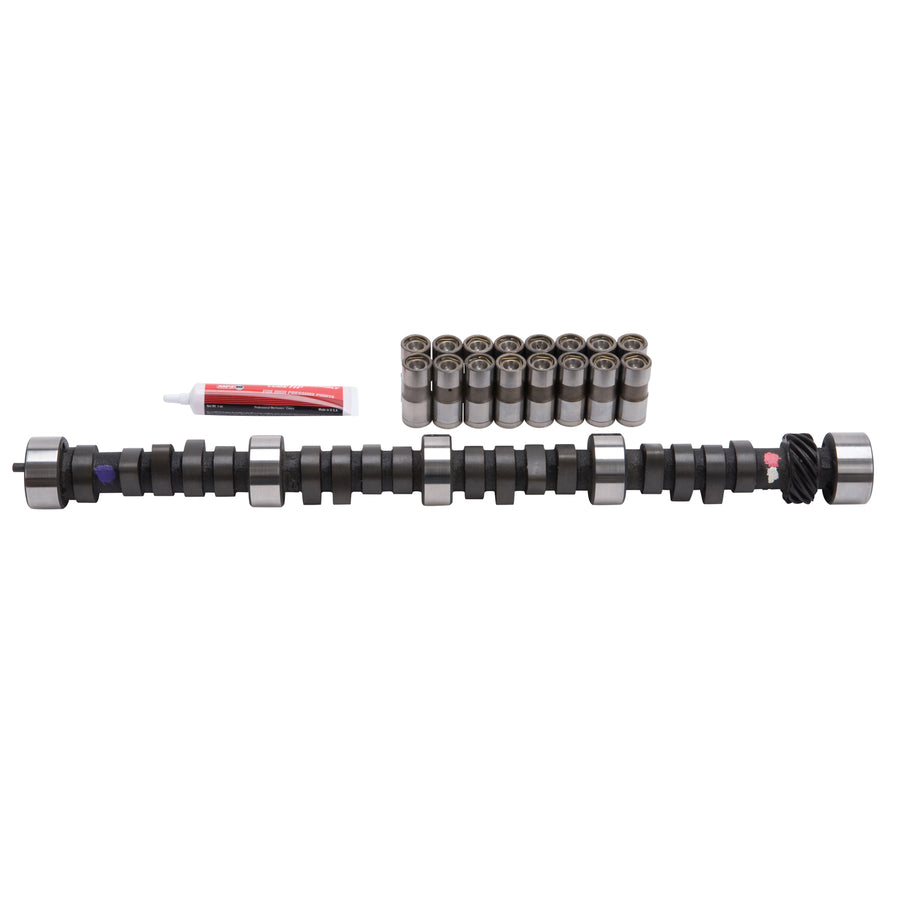

Edelbrock Engine Camshaft and Lifter Kit 3702
Specifications:
| Advertised Intake Duration | 244 |
| Lobe Separation | 112 |
| Cam Type | Cast |
| Lifter Type | Hydraulic |
| Exhaust Valve Lift | 0.442 |
| Exhaust Duration at .050 inch Lift | 214 |
| 9040 | D-215-19 |
| Grade Type | Performance |
| Lifter Materials | Hardened Steel |
| Computer Controlled Compatible | Yes |
| Advertised Exhaust Duration | 264 |
| Intake Valve Lift | 0.398 |
| Intake Duration .050 Inch Lift | 194 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Cam Lift kit |
| Description_INV | Edelbrock Performer-Plus Camshaft Kit |
| Description_LAB | Performer-Plus Camshaft Kit for 1976-95 Small Block Chevrolet |
| Description_ASM | Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_EXT | Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. |
| Description_MKT | Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16" |
| Description_TRA | Recommended Valve Springs for OEM heads: Edelbrock part #5802 non-rotator/# 5902 Rotator |
| Description_TRA | 50-state legal E.O. #D-215-19 for 1976-95 small-block Chevrolet. |
| Description_TRA | In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs. |
| Description_TRA | Oil/additive must contain Zinc designed for use with flat tappet camshafts. |
| Description_TRA | Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up. |
| Description_TRA | Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm. |
| Description_DEF | Engine Camshaft and Lifter Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1991 | Buick | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Buick | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Buick | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Buick | Roadmaster | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Buick | Roadmaster | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Buick | Roadmaster | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Cadillac | Brougham | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Cadillac | Brougham | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Cadillac | Brougham | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Cadillac | Brougham | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Cadillac | Brougham | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Cadillac | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Cadillac | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Cadillac | Fleetwood | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | Blazer | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | Caprice | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | Commercial Chassis | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1982,1984 | Chevrolet | Corvette | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | G10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | G20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | G30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R10 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R10 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | R10 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | R20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | R20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R20 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | R20 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | R30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | R30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | Chevrolet | Tahoe | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V10 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V10 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | V10 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V20 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V20 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | V20 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | Chevrolet | V30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | Chevrolet | V30 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | Chevrolet | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | Chevrolet | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Chevrolet | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | C3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | G1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | G2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | G3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | Jimmy | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | K3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | R1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | R2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | R2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | R2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | R3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V1500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | V1500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V2500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | V2500 Suburban | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1987 | GMC | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1988 | GMC | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1989 | GMC | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1990 | GMC | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | GMC | V3500 | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | GMC | Yukon | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1993 | GMC | Yukon | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1994 | GMC | Yukon | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1995 | GMC | Yukon | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1991 | Oldsmobile | Custom Cruiser | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Oldsmobile | Custom Cruiser | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads,Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads | |
| 1992 | Oldsmobile | Custom Cruiser | Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. Intake Center Line 107 Deg.; CARB E.O. D-215-19; Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads |
