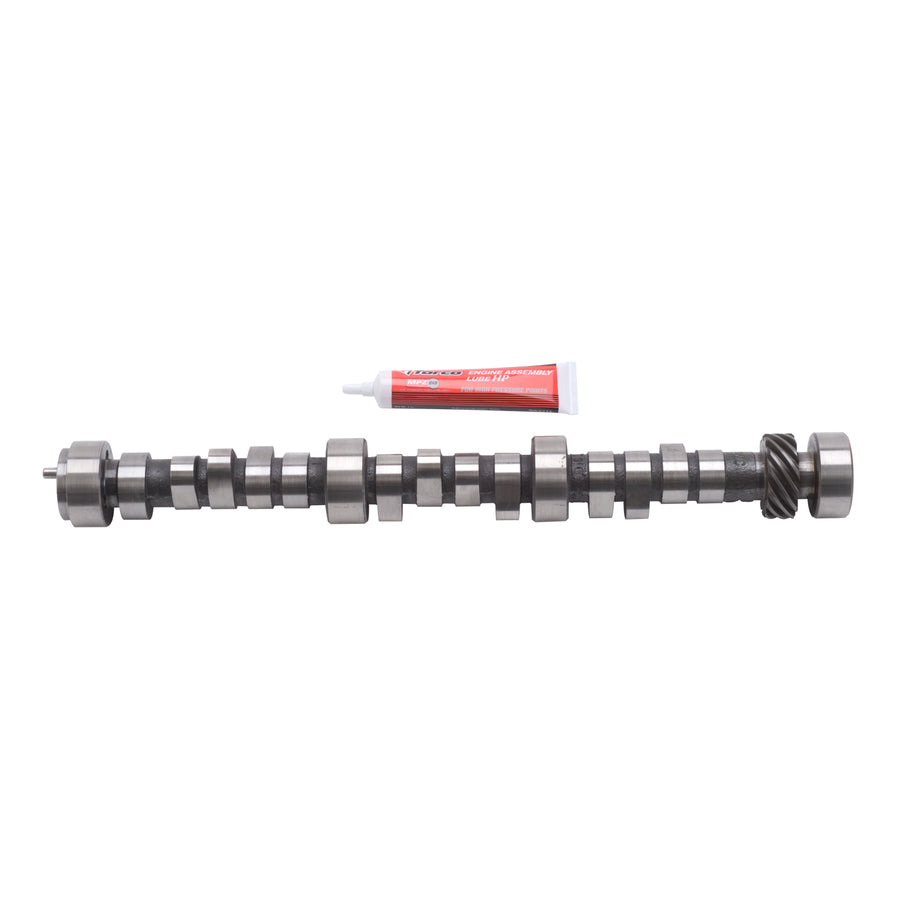

Edelbrock Engine Camshaft 3714
Regular Price
$583.95
Edelbrock Rollin' Thunder Camshaft #3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For use with OEM hydraulic roller lifters (use original lifters). Not for 1992-Later 4.3L balanced shaft engines. Requires aftermarket computer chip (not available from Edelbrock) for use with intake manifold #3713. Call Edelbrock Tech 800-416-8628 for info. Camshaft specifications: - Intake duration: 210 Degrees - Exhaust duration: 214 Degrees - Intake lift: .479" - Exhaust lift: .488" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 17"
Edelbrock Engine Camshaft 3714
Specifications:
| Lifter Type | Roller |
| Intake Valve Lift | 0.319 |
| Intake Duration at .050 Inch Lift | 210 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.488 |
| Advertised Exhaust Duration | 276 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Computer Controlled Compatible | No |
| Advertised Intake Duration | 272 |
| Cam Type | Roller |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.479 |
| Lobe Separation | 112 |
| Exhaust Valve Lift | 0.325 |
| Exhaust Duration at .050 inch Lift | 214 |
| Description_ABR | V6Camshaft |
| Description_INV | Edelbrock Rollin' Thunder camshaft #3714 |
| Description_LAB | Rollin' Thunder Camshaft for Chevy 4.3L 90 Deg V6 |
| Description_ASM | Chevrolet:Small-Block 90 Deg V6:262 (4.3L) |
| Description_EXT | Edelbrock Rollin' Thunder Camshaft #3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. |
| Description_MKT | Edelbrock Rollin' Thunder Camshaft #3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For use with OEM hydraulic roller lifters (use original lifters). Not for 1992-Later 4.3L balanced shaft engines. Requires aftermarket computer chip (not available from Edelbrock) for use with intake manifold #3713. Call Edelbrock Tech 800-416-8628 for info. Camshaft specifications: - Intake duration: 210 Degrees - Exhaust duration: 214 Degrees - Intake lift: .479" - Exhaust lift: .488" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 17" |
| Description_TRA | Compression ratio of at least 9.5:1 |
| Description_TRA | Adjustable valvetrain required |
| Description_TRA | For street high-performance and racing applications only |
| Description_TRA | Lower than stock rear gearing |
| Description_TRA | High performance torque converter (in automatic transmission equipped vehicles) are necessary. |
| Description_TRA | Please be advised that an improper installation may result in LOW MILEAGE, POOR PERFORMANCE, and COSTLY REINSTALLATION AND EVEN ENGINE DAMAGE. Installing a camshaft is a complex procedure. Please follow these instructions carefully. Failure to do so may void your warranty. |
| Description_DEF | Engine Camshaft |
