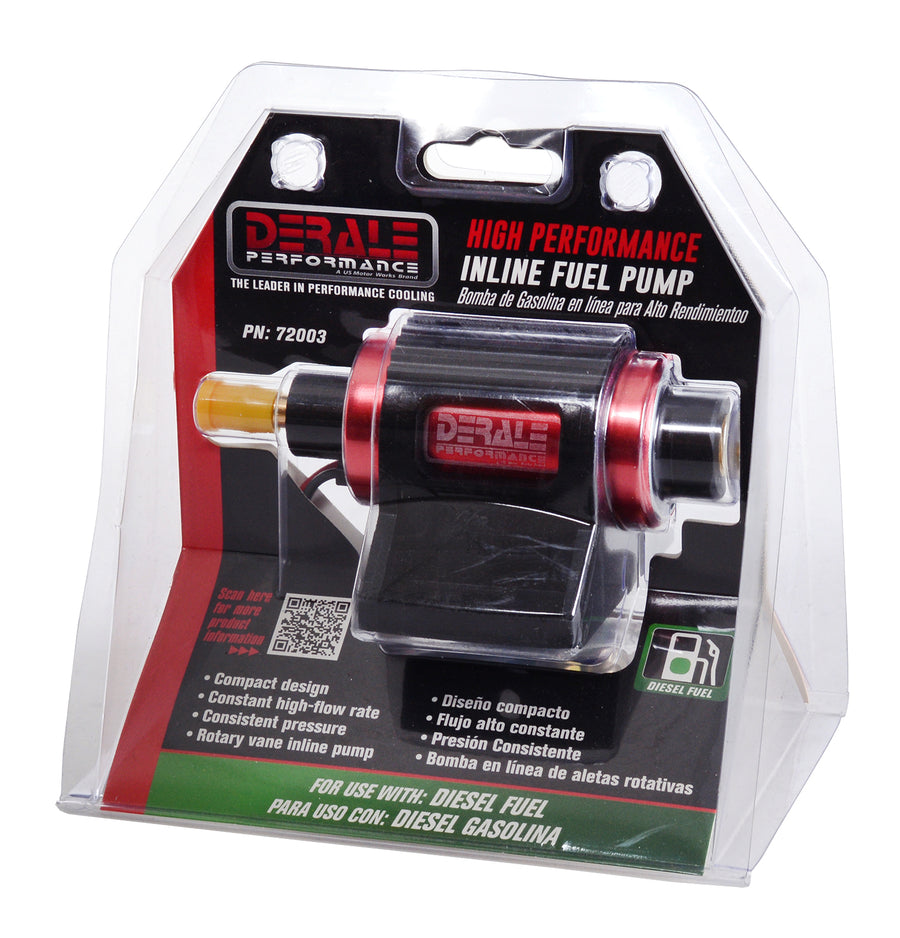

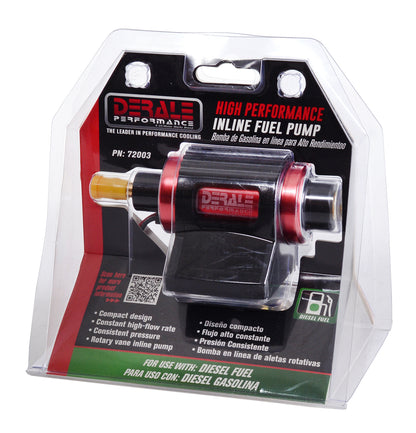

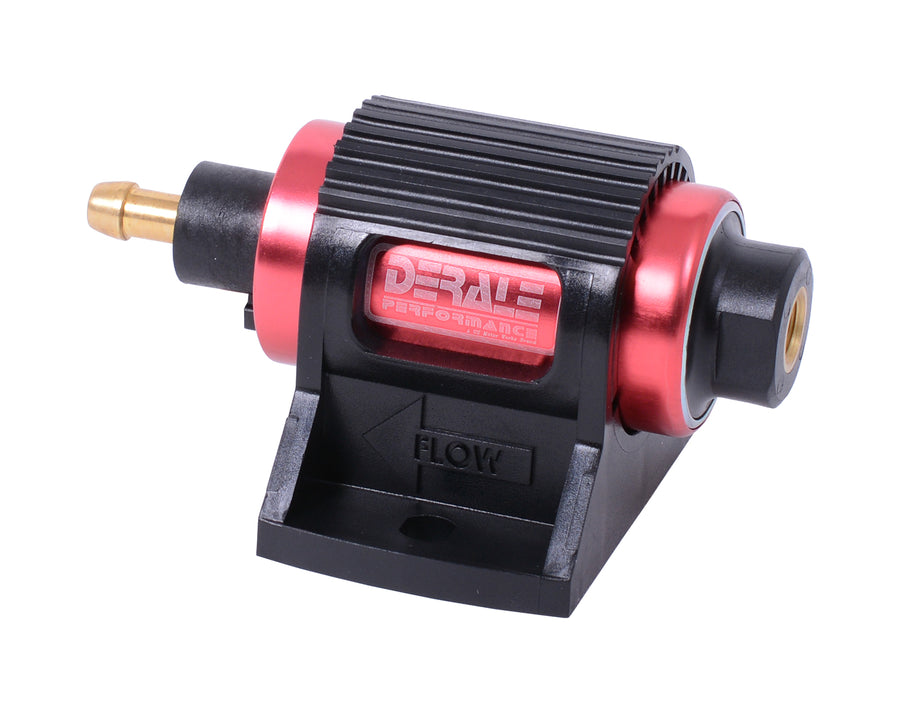

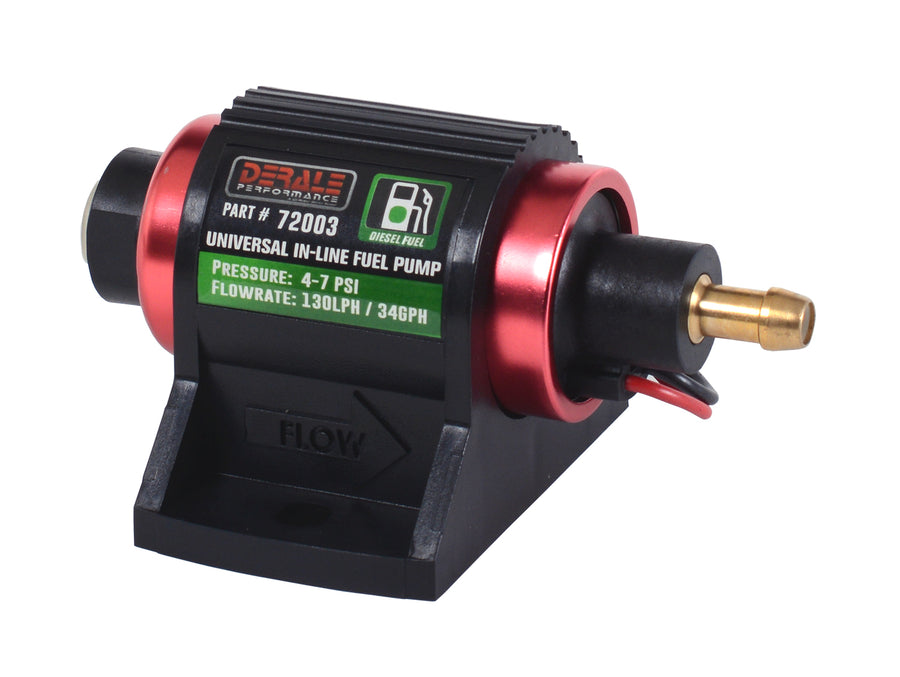

The Derale Universal Inline Fuel Pump Kit is a compact rotary vane electric fuel pump for diesel applications, rated at 34 gallons per hour (130 LPH) at 4 to 7 PSI. It is self-priming and installs with a simple two-bolt, two-wire hookup on 12 volt negative ground systems. The kit includes the necessary installation hardware.
Specifications:
- Type: universal inline electric fuel pump kit
- Fuel type: diesel
- Flow: 34 GPH (130 LPH)
- Pressure: 4 to 7 PSI
- Inlet: 1/8 in NPT
- Design: rotary vane, self-priming
- Electrical: 12V negative ground, about 2 A draw
- Mounting: two-bolt

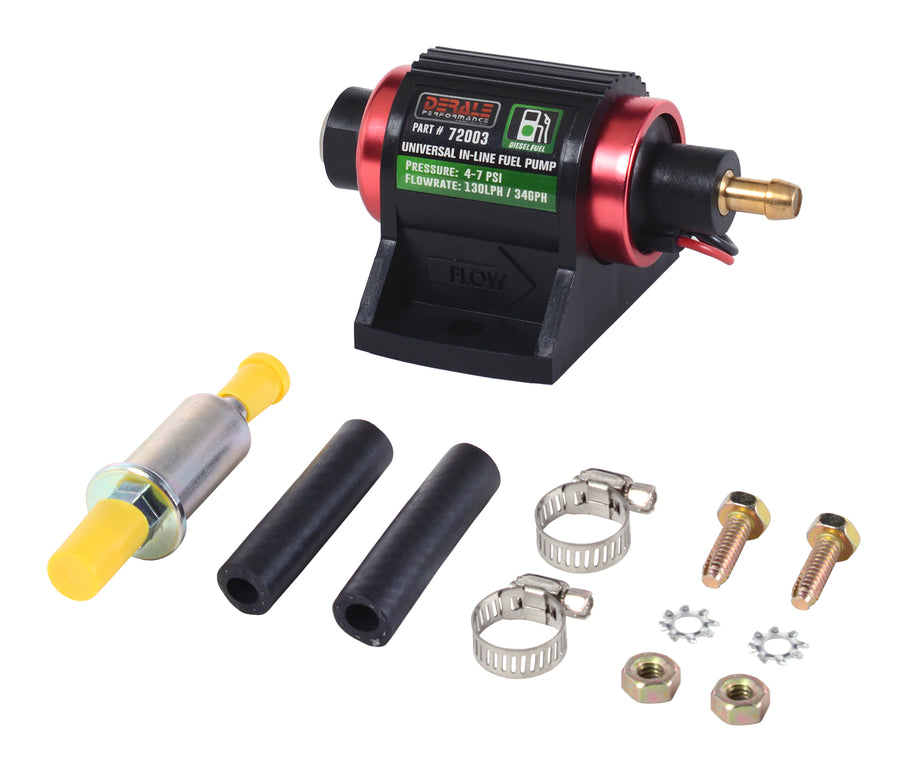

- Included: installation hardware
- Part number: 72003
FAQ
What is the Derale 72003 fuel pump for?
It is a universal inline electric fuel pump for diesel applications, rated at 34 GPH (130 LPH) and 4 to 7 PSI.
How is it wired and mounted?
It uses a two-bolt mount and a two-wire hookup on 12 volt negative ground systems and draws about 2 amps.
Is it self-priming?
Yes, the rotary vane pump is self-priming.
What size is the inlet?
The inlet is 1/8 inch NPT, and the kit includes the necessary installation hardware.
