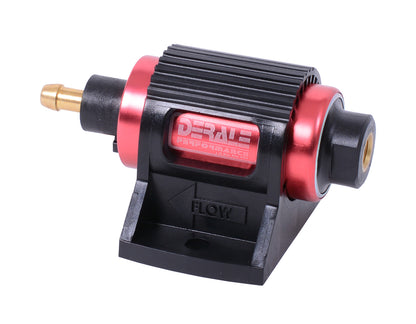

The Derale Universal Inline Fuel Pump is a compact rotary vane pump built to feed low-pressure carbureted gasoline fuel systems with steady flow and consistent pressure. This version is rated for gasoline at 100 liters per hour (26 GPH) and a maximum pump pressure of 2 to 3.5 PSI. It runs on 12 volt negative ground power, is self-priming, and uses a simple two-bolt, two-wire installation, making it a straightforward universal upgrade or replacement pump. The kit comes with the necessary mounting hardware.
Specifications:
- Type: Universal inline rotary vane fuel pump
- Fuel compatibility: Gasoline
- Flow rate: 100 L/hour (26 GPH)
- Maximum pump pressure: 2 to 3.5 PSI
- Voltage: 12V, negative ground systems only
- Amp draw: 2 amps
- Inlet: 1/8" NPT
- Features: Self-priming, compact, two-bolt and two-wire install

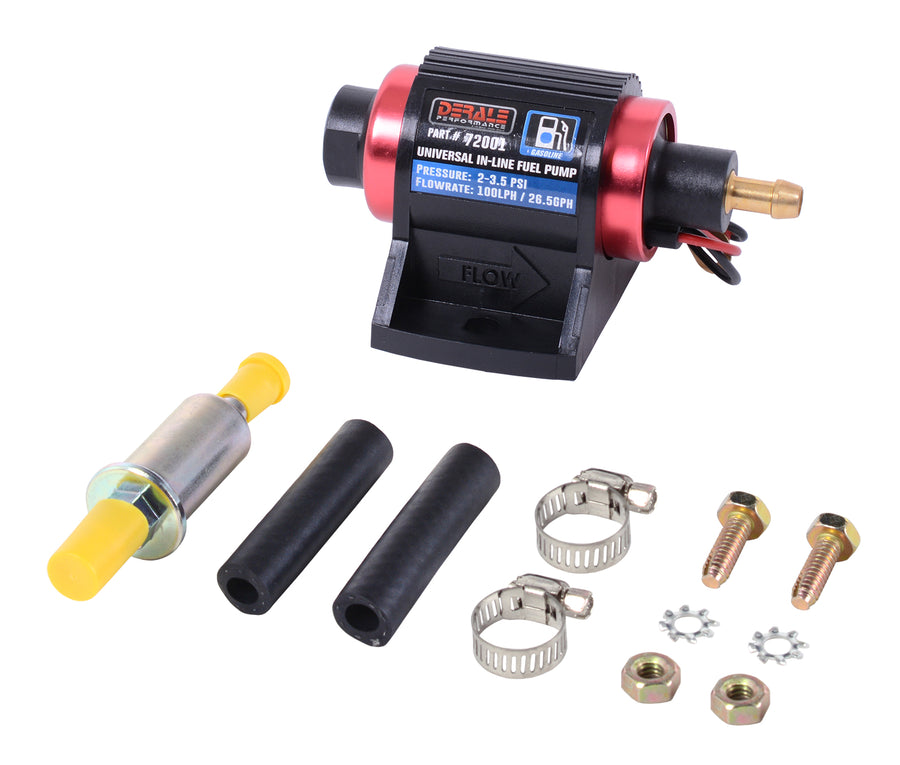

- Includes: Mounting hardware
- Part number: 72001
FAQ
What fuel is the Derale 72001 pump compatible with?
It is rated for gasoline. Derale offers separate inline pump versions for diesel and for E85 and racing fuels.
How much fuel does it flow?
It flows 100 liters per hour, about 26 gallons per hour, at a maximum pump pressure of 2 to 3.5 PSI, which suits low-pressure carbureted systems.
What power does it need?
It runs on a 12 volt negative ground electrical system and draws about 2 amps.
How is it installed?
It mounts with a simple two-bolt bracket and two-wire hookup, is self-priming, and uses a 1/8" NPT inlet.
