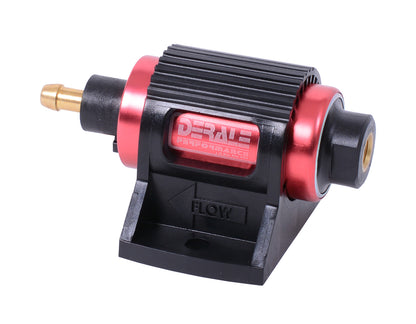

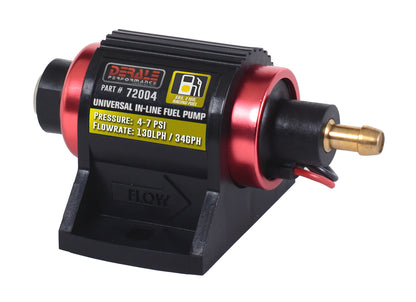

The Derale Universal Inline Fuel Pump is a compact rotary vane pump built to feed low-pressure carbureted fuel systems with steady flow and consistent pressure. This version is rated for E85, E100, M100 and racing fuels at 130 liters per hour (34 GPH) and a maximum pump pressure of 4 to 7 PSI. It runs on 12 volt negative ground power, is self-priming, and uses a simple two-bolt, two-wire installation, making it a straightforward universal pump for alcohol and race fuel setups. The kit comes with the necessary mounting hardware.
Specifications:
- Type: Universal inline rotary vane fuel pump
- Fuel compatibility: E85, E100, M100, racing fuel
- Flow rate: 130 L/hour (34 GPH)
- Maximum pump pressure: 4 to 7 PSI
- Voltage: 12V, negative ground systems only
- Amp draw: 2 amps
- Inlet: 1/8" NPT
- Features: Self-priming, compact, two-bolt and two-wire install

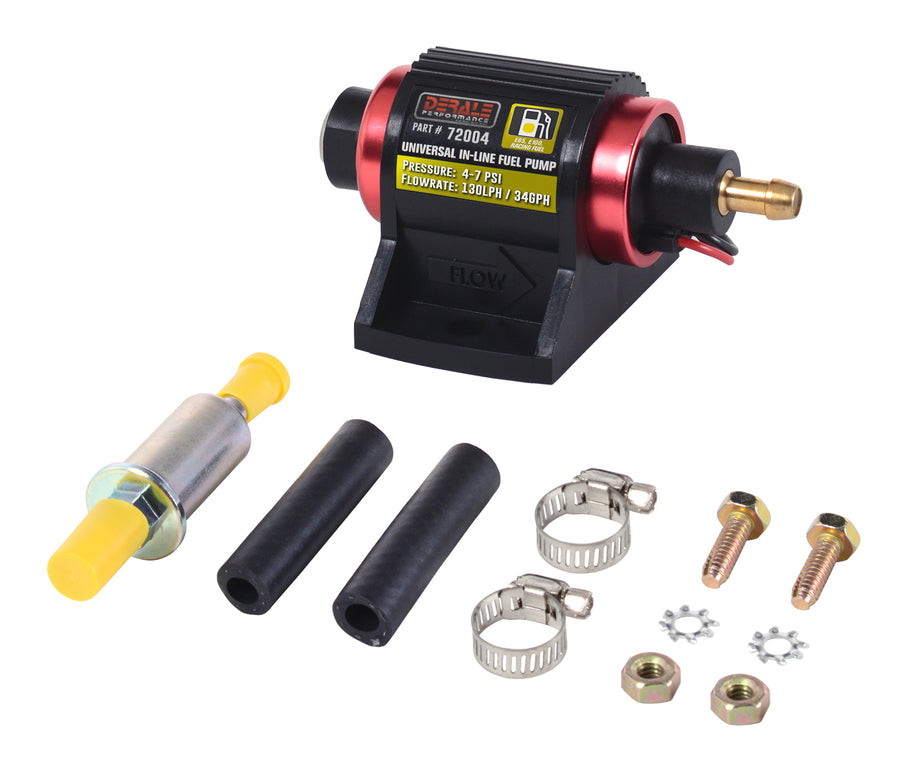

- Includes: Mounting hardware
- Part number: 72004
FAQ
What fuel is the Derale 72004 pump compatible with?
It is rated for E85, E100, M100 and racing fuels. Derale offers separate inline pump versions for gasoline and for diesel.
How much fuel does it flow?
It flows 130 liters per hour, about 34 gallons per hour, at a maximum pump pressure of 4 to 7 PSI, which suits low-pressure carbureted systems.
What power does it need?
It runs on a 12 volt negative ground electrical system and draws about 2 amps.
How is it installed?
It mounts with a simple two-bolt bracket and two-wire hookup, is self-priming, and uses a 1/8" NPT inlet.
