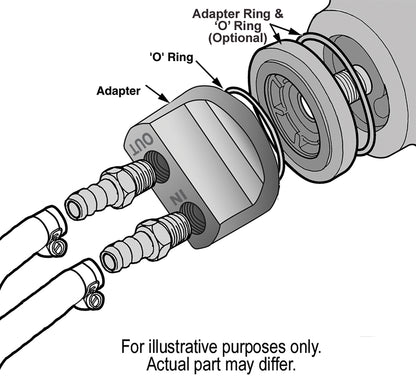

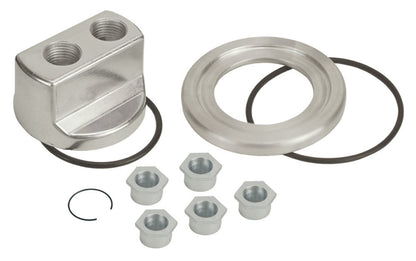

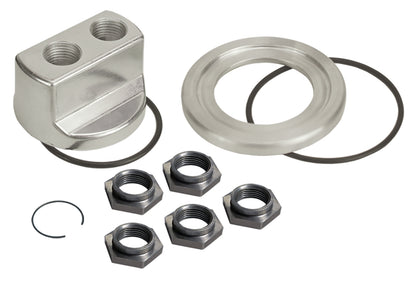

The Derale Standard Universal Engine Spin-On Adapter installs at the stock oil filter location to provide external oil lines for an engine oil cooler and/or a remote filter mount. It is die-cast from aluminum with a billet-style polished bright finish and carries 1/2 inch NPT ports. The adapter fits most passenger vehicles with a 2-1/2 inch to 3-1/2 inch oil filter landing and comes with a range of thread adapters to match common engine threads.
Specifications:
- Type: Universal engine spin-on oil adapter (Type J)
- Ports: 1/2" NPT
- Engine thread sizes: 3/4"-16, 13/16"-16, 18x1.5mm, 20x1.5mm, 22x1.5mm
- O-ring sizes: 2-1/2", 2-3/4", or 3-1/2"
- Thickness: 1-3/4" or 2"
- Fits: Most passenger vehicles with 2-1/2" to 3-1/2" filter landing
- Construction: Die-cast aluminum, polished bright finish
- Part number: 15747
FAQ
What does the Derale 15747 adapter do?
It installs at the stock oil filter location and provides 1/2 inch NPT ports for routing oil to a cooler and/or remote filter mount.
What vehicles does it fit?
It fits most passenger vehicles with a 2-1/2 inch to 3-1/2 inch oil filter landing and includes several engine thread sizes.
What port size does it have?
It uses 1/2 inch NPT inlet and outlet ports.
What is it made of?
It is die-cast aluminum with a billet-style polished bright finish.
