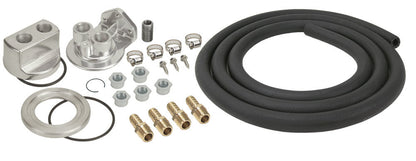

The Derale Single Mount Oil Filter Relocation Kit moves the oil filter to an easier-to-reach location, which speeds up filter changes, adds oil capacity, and provides external 1/2 inch NPT ports for an oil cooler. It pairs a die-cast aluminum ports-up filter mount with a spin-on adapter that fits a wide range of engine threads. The kit includes the filter mount, the 1/2 inch NPT spin-on adapter, and 10 feet of 1/2 inch OEM-spec hose.
Specifications:
- Type: single-mount oil filter relocation kit (ports up)
- Ports: 1/2 in NPT
- Spin-on adapter engine threads: 3/4-16, 13/16-16, 18x1.5 mm, 20x1.5 mm, 22x1.5 mm
- Remote filter thread: 3/4 in-16 (Fram PH8A or equivalent)
- Filter landing: 2-1/2 in, 2-3/4 in, or 3-1/2 in
- Material: die-cast aluminum

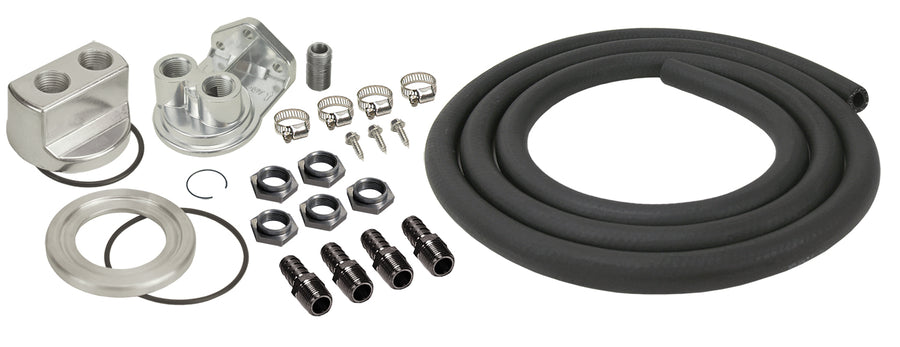

- Included: ports-up filter mount, 1/2 in NPT spin-on adapter, 10 ft of 1/2 in OEM-spec hose
- Part number: 15748
FAQ
What does the Derale 15748 kit do?
It relocates the oil filter to an easier-to-reach spot, adds oil capacity, and provides 1/2 inch NPT ports for an oil cooler.
What engine threads does the adapter fit?
3/4-16, 13/16-16, 18x1.5 mm, 20x1.5 mm, and 22x1.5 mm. Check Derale's application guide for your engine.
What filter does the remote mount take?
A 3/4 inch-16 thread filter such as a Fram PH8A or equivalent.
What is included?
A ports-up filter mount, a 1/2 inch NPT spin-on adapter, and 10 feet of 1/2 inch OEM-spec hose.
