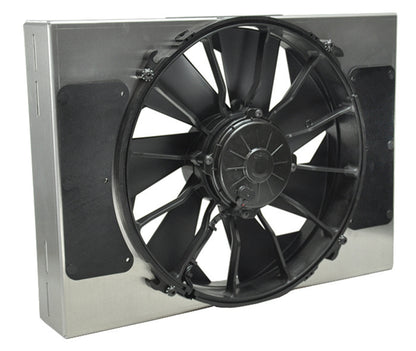

The Derale Powerpack pairs a single high output 12 inch RAD electric fan with a raw aluminum shroud for primary engine cooling. It moves 2000 CFM through a 300 watt motor and is set up as a puller for engine-side mounting. The shroud uses adjustable brackets so it can be fitted to many common radiator core sizes, and it can be left raw or polished, anodized, or painted.
Specifications:
- Type: single electric fan and aluminum shroud powerpack (RAD fan)
- Fan: single 12 in
- Airflow: 2000 CFM
- Motor: 300 W
- Amp draw: 24.8 A
- Shroud: raw aluminum

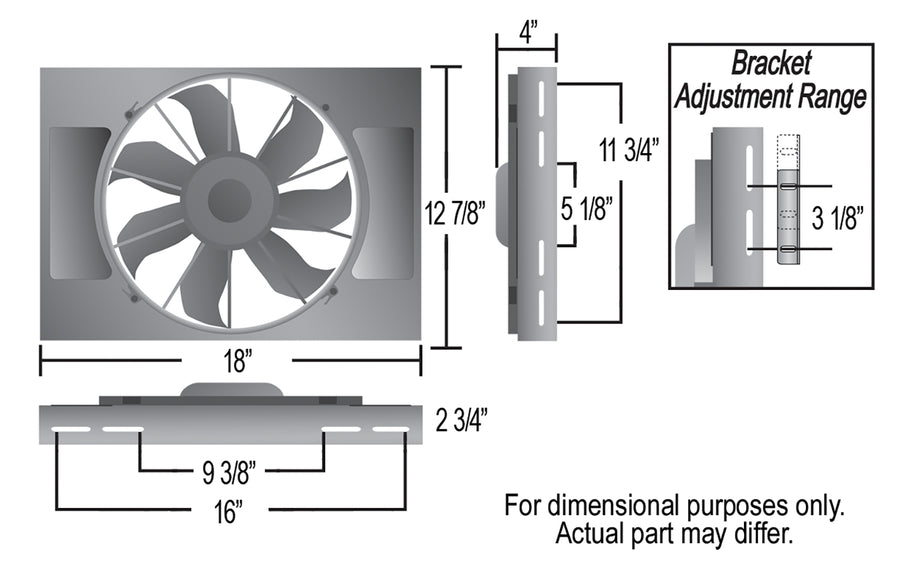

- Overall dimensions: 18 in W x 13 in H x 4 in D
- Orientation: puller (engine side) only

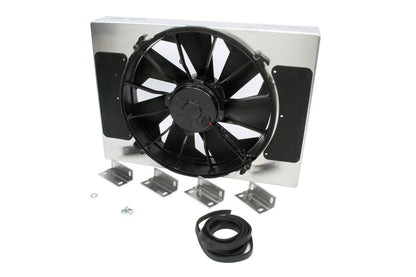

- Included: adjustable mounting brackets and complete mounting hardware
- Part number: 16814
FAQ
What is the Derale 16814 Powerpack?
It is a complete single 12 inch RAD electric fan and raw aluminum shroud assembly for primary engine cooling.
How much air does it move?
2000 CFM, driven by a 300 watt motor that draws 24.8 amps.
Is it a puller or pusher?
It is a puller, mounted on the engine side of the radiator.
What radiators does it fit?
The aluminum shroud measures 18 inches wide by 13 inches tall by 4 inches deep and uses adjustable brackets to fit many common radiator cores. Confirm your core will accept the shroud footprint.
