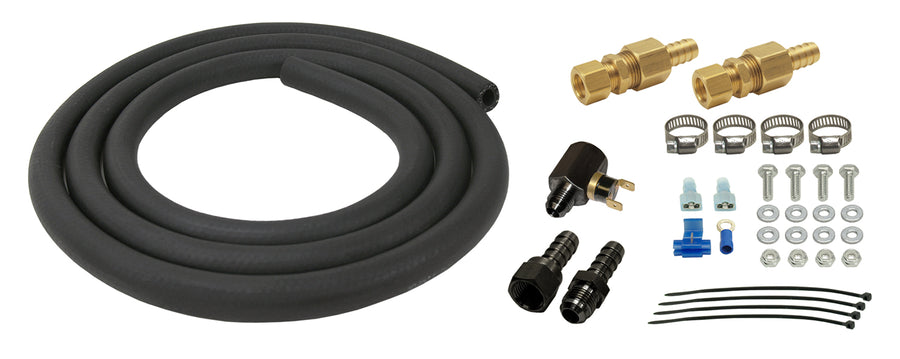

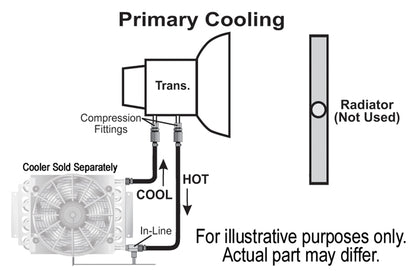

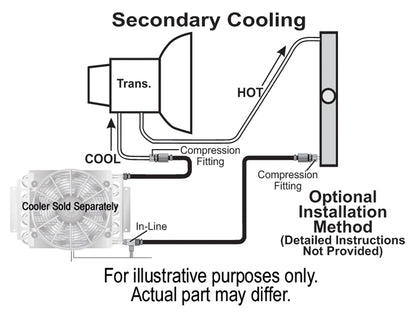

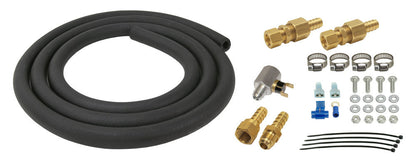

The Derale Remote Transmission Cooler Mount Kit includes the plumbing and hardware needed to install a remote-mounted transmission cooler on vehicles with 1/2 inch cooler lines. It comes with a 180 degree F inline thermostat so the cooler is bypassed until the fluid warms up, 10 feet of 1/2 inch OEM-spec hose, two 1/2 inch hose barb fittings, two compression fittings, and mounting hardware. It is built for Derale remote coolers and works with other brands as well.
Specifications:
- Type: remote transmission cooler installation kit
- Line size: 1/2 in cooler lines
- Included: 180 degree F inline thermostat, 10 ft of 1/2 in OEM-spec hose, two 1/2 in hose barb fittings, two compression fittings, mounting hardware
- Part number: 13023
FAQ
What is the Derale 13023 kit for?
It provides the plumbing and hardware to install a remote-mounted transmission cooler on vehicles with 1/2 inch cooler lines.
What is included?
A 180 degree F inline thermostat, 10 feet of 1/2 inch OEM-spec hose, two 1/2 inch hose barb fittings, two compression fittings, and mounting hardware.
Why does it include a thermostat?
The 180 degree F inline thermostat bypasses the cooler until the fluid warms up, preventing overcooling.
Does it work with other brands of cooler?
It is designed for Derale remote coolers but works with other brands using 1/2 inch lines.
