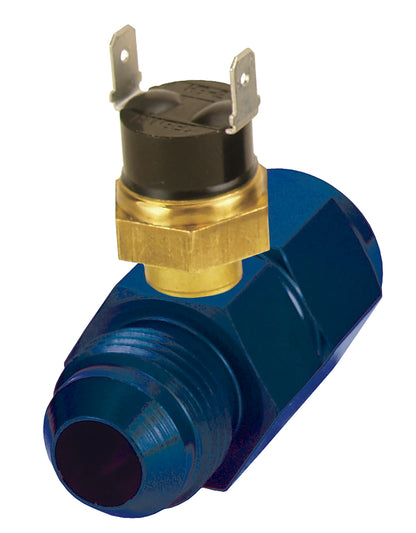

The Derale Premium In-Line Fan Control Thermostat installs directly into a fluid line to turn an electric cooling fan on and off based on fluid temperature. It activates at 180 degrees F and connects with -8AN male and -8AN female fittings, which suits remote oil cooler and transmission cooler setups plumbed with AN lines. Switching the fan by actual fluid temperature helps hold a stable operating range and keeps the fan from running longer than needed.
Specifications:
- Type: In-line fan control thermostat
- Activation temperature: 180 degrees F
- Fittings: -8AN male x -8AN female
- Function: Switches an electric cooling fan on and off by fluid temperature
- Part number: 35021
FAQ
What does the Derale 35021 thermostat do?
It senses fluid temperature inside an AN line and switches an electric cooling fan on at about 180 degrees F, then back off as the fluid cools.
What fittings does it use?
It uses -8AN male and -8AN female fittings for an in-line connection.
At what temperature does the fan turn on?
It is set to activate at 180 degrees F.

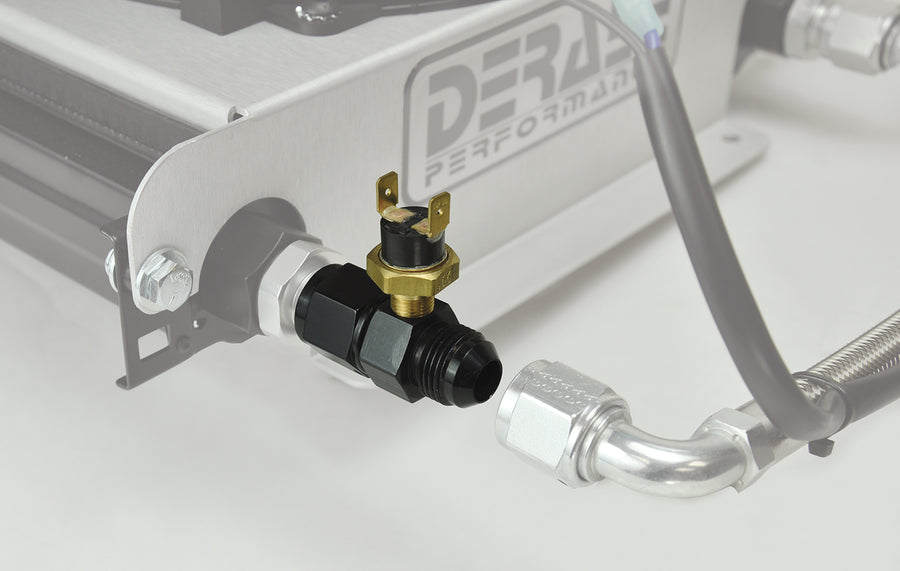

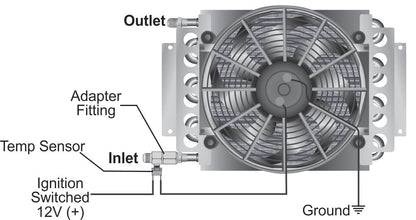

Where is it installed?
It is plumbed directly into a fluid line, such as the line feeding a remote oil or transmission cooler.
