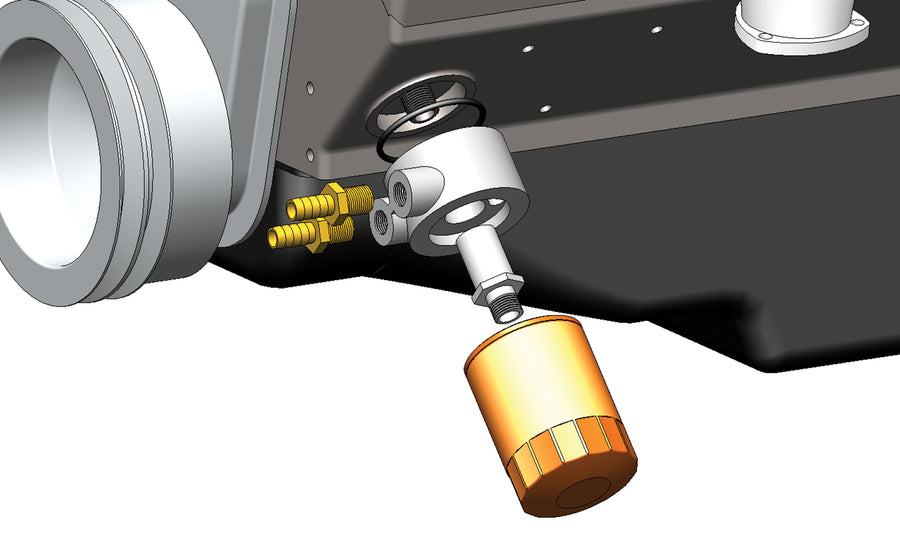

The Derale Low Profile Pressure Relief Sandwich Adapter installs between the engine block and the oil filter to provide external oil lines for an engine oil cooler. The cast aluminum body is only 1 inch thick, so it lowers the factory oil filter just 1 inch from stock, and a built-in pressure relief valve protects the system. It has 3/8 inch NPT ports and is designed for engines with a 20 x 1.5mm filter thread.
Specifications:
- Type: Low profile pressure relief sandwich adapter (Type M)
- Ports: 3/8" NPT
- Filter thread: 20 x 1.5mm
- O-ring size: 2-1/2" and 2-3/4"
- Thickness: 1"
- Pressure relief: Built-in pressure relief valve
- Construction: Cast aluminum

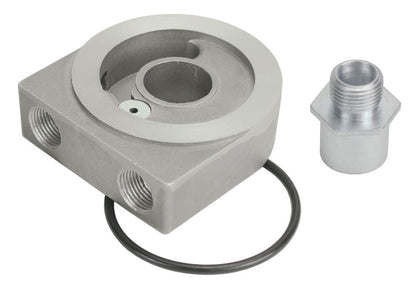

- Includes: Sandwich adapter, sleeve nut, O-ring
- Part number: 25772
FAQ
What does the Derale 25772 adapter do?
It sits between the engine and the oil filter to provide 3/8 inch NPT ports for running oil to a cooler, with a built-in pressure relief valve.
How much does it lower the filter?
It is only 1 inch thick, so it lowers the factory oil filter just 1 inch from its stock position.
What thread does it fit?
It is designed for engines with a 20 x 1.5mm filter thread. Checking an application guide is recommended to confirm fitment.
What is included?
It comes with the sandwich adapter, sleeve nut, and O-ring.
