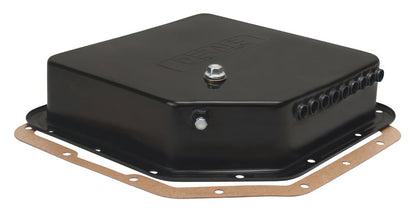

The Derale 14200 is a direct-replacement transmission cooling pan for the GM TH350 automatic transmission. Air passing beneath the vehicle is redirected through brazed, turbulator-equipped airway tubes in the lower section of the pan, lowering transmission fluid temperature by up to 50 degrees F. It is built from heavy gauge stamped steel with a durable two-stage heat-dissipating black finish, adds about 2 quarts of fluid capacity, and uses the OEM filter with no filter extension required. Each pan is individually pressure tested for a leak-free seal and includes a neoprene gasket, a stronger magnetic drain plug with a reusable rubber and steel washer, and a 1/8 inch NPT temperature sender bung and plug in the side of the pan.
Specifications:
- Type: Transmission cooling pan
- Fitment: GM TH350 automatic transmission
- Construction: Heavy gauge stamped steel with brazed turbulator-equipped airway tubes
- Pan dimensions: 13-1/2 in length x 13 in width x 3-3/8 in height (drain plug adds 1/4 in)
- Tube depth: 2-3/8 in
- Added fluid capacity: About 2 quarts
- Cooling: Lowers fluid temperature up to 50 F
- Finish: Two-stage heat-dissipating black
- Temperature sender port: 1/8 in NPT bung with plug included
- Drain plug: 1/2 in-20 magnetic with reusable rubber and steel washer (replacement Derale 14000)
- Filter: Uses OEM filter, no extension required
- Part number: 14200
FAQ
What transmission does the Derale 14200 pan fit?
It is a direct-replacement cooling pan for the GM TH350 automatic transmission.
How much does it lower transmission temperature?
Its brazed turbulator airway tubes use air passing under the vehicle to lower fluid temperature by up to 50 degrees F, and it adds about 2 quarts of fluid capacity.
Does it need a special filter?
No. It uses the OEM transmission filter with no filter extension required.
Does it have a temperature sender port?
Yes. It has a 1/8 inch NPT temperature sender bung and plug in the side of the pan, plus a 1/2 in-20 magnetic drain plug with a reusable rubber and steel washer.
