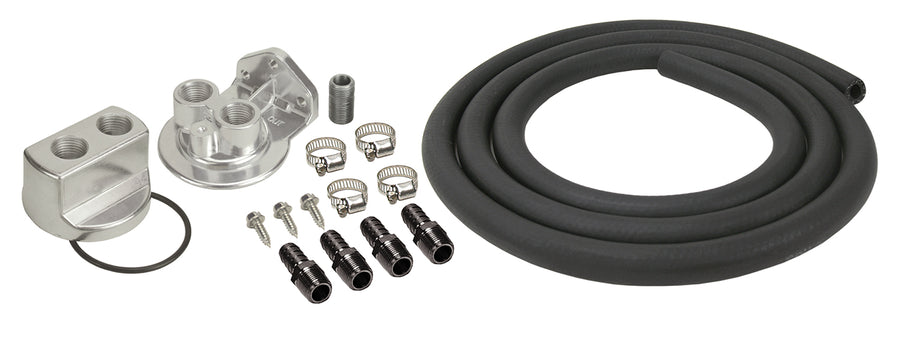

The Derale Engine Oil Filter Relocation Kit moves the oil filter to a more convenient, easy-to-reach location for faster, cleaner filter changes. It pairs a Type M spin-on adapter with a 20 x 1.5mm engine thread and a die-cast aluminum single ports-up remote filter mount with 1/2 inch NPT ports. The remote mount uses 3/4 inch-16 filter threads and accepts a Fram PH8A or equivalent filter. The kit includes OEM-spec hose and aluminum fittings for a complete installation.
Specifications:
- Type: Engine oil filter relocation kit
- Ports: 1/2" NPT
- Engine thread: 20 x 1.5mm (Type M spin-on adapter)
- Filter thread: 3/4"-16
- Remote filter landing: 2-1/2" and 2-3/4"
- Adapter thickness: 1-3/4"
- Compatible filter: Fram PH8A or equivalent
- Construction: Die-cast aluminum mount and aluminum fittings
- Includes: Spin-on adapter, remote filter mount, 10 ft of 1/2" OEM-spec hose, aluminum fittings
- Part number: 15718
FAQ
What does the Derale 15718 kit do?
It relocates the engine oil filter to an accessible location using a spin-on adapter at the engine and a remote filter mount connected by hose.
What engine thread does it use?
The spin-on adapter uses a 20 x 1.5mm thread. Checking an application guide is recommended to confirm fitment.
What filter fits the remote mount?
The remote mount uses 3/4 inch-16 filter threads and accepts a Fram PH8A or equivalent filter.
What is included?
It includes the spin-on adapter, the die-cast aluminum remote filter mount, 10 feet of 1/2 inch OEM-spec hose, and aluminum fittings.
