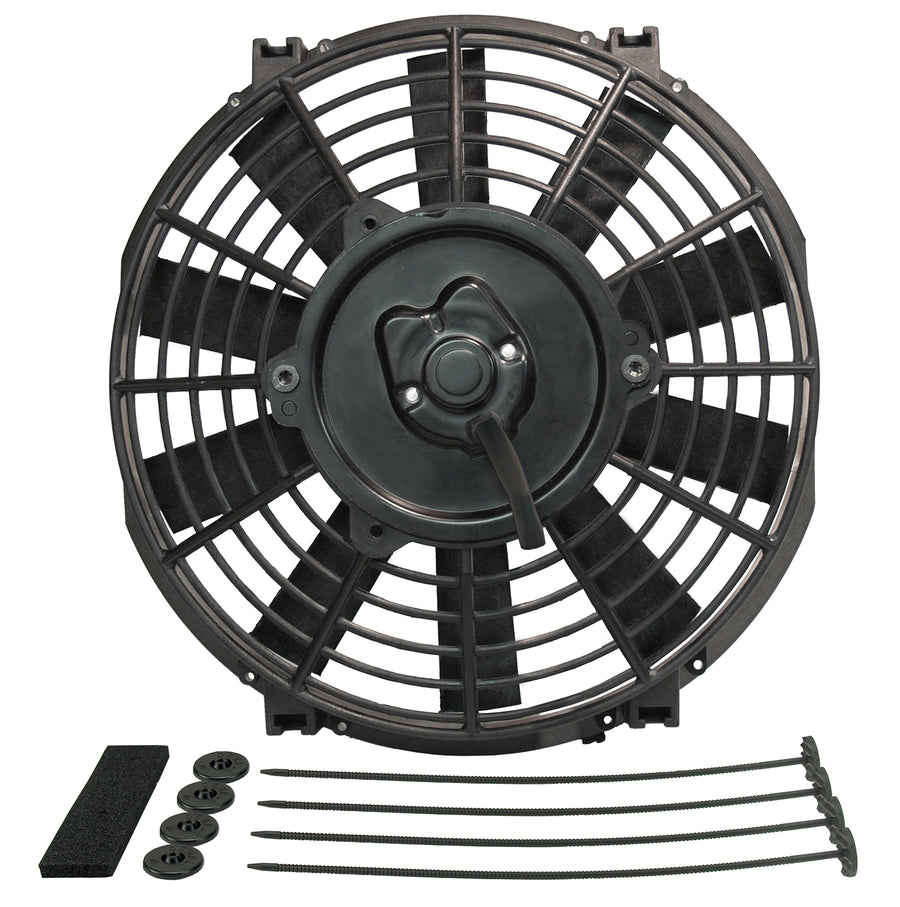

The Derale 9 inch Tornado Electric Puller Fan is a reversible universal cooling fan with a patented eight straight blade design that runs ultra-quiet while moving 570 CFM at zero static pressure. It draws 5.4 amps and can be mounted as a puller behind the radiator or reversed to work as a pusher. This version includes the standard nylon mounting kit and illustrated installation instructions.
Specifications:
- Type: Tornado electric cooling fan
- Diameter: 9"
- Airflow: 570 CFM at 0 static pressure
- Amp draw: 5.4 amps
- Configuration: Puller, reversible (can be used as a pusher)
- Blades: Eight straight blades, patented ultra-quiet design
- Overall dimensions (W x H x D): 9-1/2" x 9-5/8" x 2-1/2" (blade depth 1-1/4")
- Mounting: 8-7/8" x 5"
- Includes: Standard nylon mounting kit and instructions
- Part number: 16619
FAQ
How much air does the Derale 16619 fan move?
It moves 570 CFM at zero static pressure and draws 5.4 amps.
Can it be used as a pusher or puller?
It is reversible, so it can mount as a puller behind the radiator or a pusher in front of it.
What is included?
It comes with the standard nylon mounting kit and illustrated installation instructions.
How deep is the fan?
It has an overall depth of 2-1/2 inches, with a 1-1/4 inch blade depth, which suits tight spaces.
