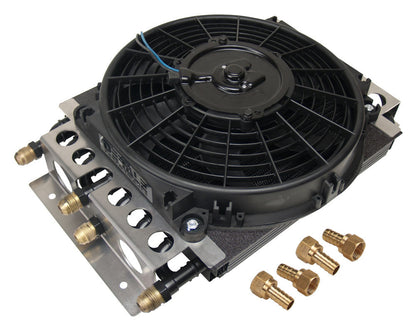

The Derale 8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler cools two separate systems in one compact, space-saving unit. It pairs an efficient 8 and 8 pass copper and aluminum tube and fin core, made in the USA, with a 10 inch reversible Tornado electric fan so it can be mounted away from the radiator wherever space allows. The two independent circuits use -8AN inlets, making it a good fit for cooling, for example, both engine oil and transmission fluid at once.
Specifications:
- Style: Dual circuit tube and fin remote cooler, Electra-Cool
- Passes: 8 and 8 (two separate circuits)
- Inlets: -8AN (1/2" barb adapters included)
- Fan: 10" reversible Tornado, 650 CFM, 5.3 amp draw
- Heat rejection: 16,000 BTU/hr
- Working pressure: 250 PSI (300 PSI burst)
- Added fluid capacity: 9 oz
- Overall dimensions (W x H x D): 15-3/4" x 11-1/2" x 5"
- Mounting: 14-3/4" x 5-1/4"
- Includes: Clear anodized aluminum brackets, two -8AN x 3/8" hose barb fittings, two -8AN x 1/2" hose barb fittings
- Part number: 15200
FAQ
What makes the Derale 15200 a dual circuit cooler?
It has two independent 8-pass circuits in one core, so it can cool two separate systems, such as engine oil and transmission fluid, at the same time.
Does it include a fan?
Yes. It comes with a 10 inch reversible Tornado fan rated at 650 CFM with a 5.3 amp draw.
What inlets does it use?
Each circuit uses -8AN inlets, and both -8AN x 3/8 inch and -8AN x 1/2 inch hose barb fittings are included.
How much heat can it reject?
It is rated at 16,000 BTU per hour.
