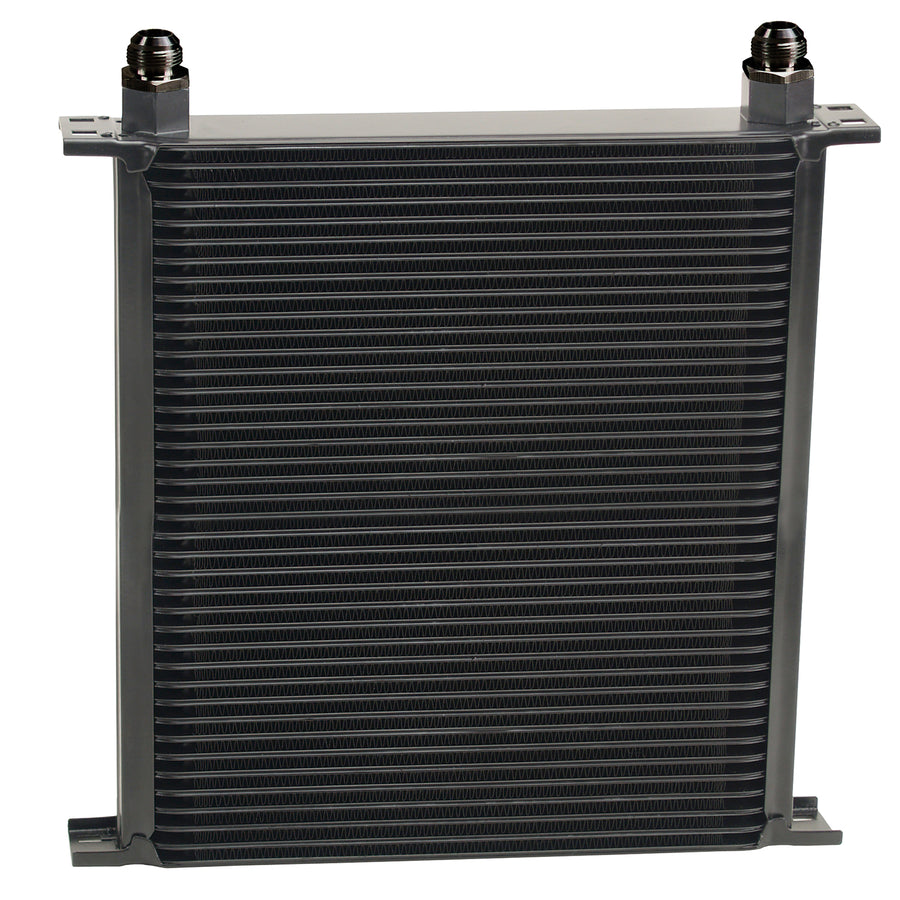

The Derale 40 Row Series 10000 Stack Plate Fluid Cooler is an all-aluminum, furnace-brazed heat exchanger from Derale's most efficient cooler line. The 40 row core is rated at 67,000 BTU per hour and can be plumbed to cool engine oil, transmission fluid, or fuel. It carries four integrated mounting brackets and a black powder-coat finish, and ships with male -10AN aluminum O-ring inlet fittings.
Specifications:
- Type: Series 10000 stack plate fluid cooler (cooler only)
- Rows: 40
- Cooling capacity: 67,000 BTU/hr
- Construction: all-aluminum, furnace-brazed
- Ports: -10AN O-ring female, male -10AN O-ring fittings included

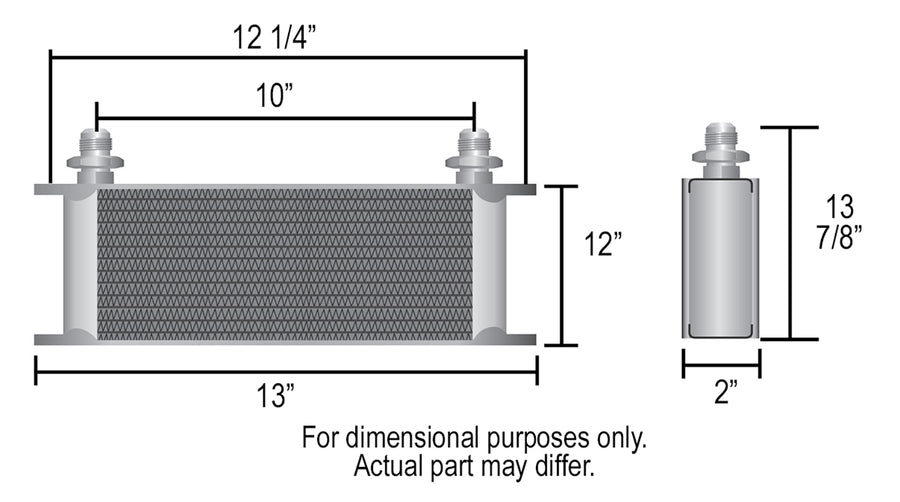

- Overall dimensions: 13 in W x 13-7/8 in H x 2 in D
- Mounting pattern: 12-1/4 in x 12 in, four integrated brackets
- Added fluid capacity: 26 oz
- Finish: black powder coat
- Cools: engine oil, transmission fluid, or fuel
- Part number: 54010
FAQ
What can the Derale 54010 cooler be used for?
It can be plumbed to cool engine oil, transmission fluid, or fuel, and ships with male -10AN O-ring inlet fittings.
How much cooling does it provide?
The 40 row Series 10000 stack plate core is rated at 67,000 BTU per hour.
What are the port sizes?
The inlet and outlet are -10AN O-ring female, and male -10AN aluminum O-ring fittings are included.
How is it mounted?
It has four integrated mounting brackets on a 12-1/4 in x 12 in pattern. Overall size is 13 in wide by 13-7/8 in tall by 2 in deep.
