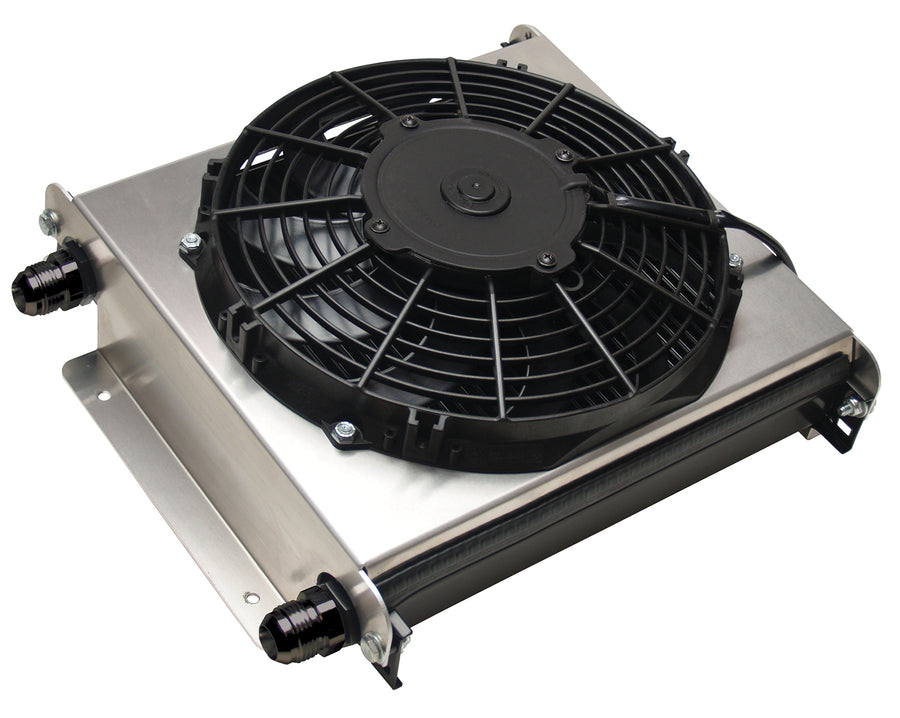

The Derale 40 Row Hyper-Cool Extreme Remote Fluid Cooler is a stacked plate cooler paired with a built-in 10 inch electric fan, so it can be mounted anywhere airflow is limited. The 40 row core is rated at 67,000 BTU per hour, and the waterproof, dustproof 150 watt fan moves 800 CFM while drawing 8.7 amps. It is built behind a clear-anodized aluminum shroud, is rated to 250 PSI working pressure and 300 PSI burst, and adds 26 ounces of fluid capacity. This version has -10AN ports.
Specifications:
- Type: Hyper-Cool Extreme remote stacked plate cooler with fan
- Rows: 40
- Cooling capacity: 67,000 BTU/hr
- Electric fan: 10 in, 800 CFM, 150 W, 8.7 A, waterproof and dustproof (Derale replacement fan 16110)
- Ports: -10AN (7/8-14 UNF O-ring female x -10AN male)
- Shroud: clear-anodized aluminum
- Overall dimensions: 13 in W x 14-3/4 in H x 5-5/8 in D
- Mounting footprint: 7-1/2 in x 13-9/16 in
- Pressure rating: 250 PSI working, 300 PSI burst
- Added fluid capacity: 26 oz
- Part number: 15875
FAQ
Does the Derale 15875 include a fan?
Yes, it has a built-in 10 inch waterproof fan that moves 800 CFM and draws 8.7 amps, so it works where there is little natural airflow.
How much cooling does it provide?
The 40 row Hyper-Cool Extreme core is rated at 67,000 BTU per hour.
What are the port sizes?
This version has -10AN ports (7/8-14 UNF O-ring female to -10AN male).
What is it rated to?
250 PSI working pressure and 300 PSI burst, and it adds about 26 ounces of fluid capacity.
