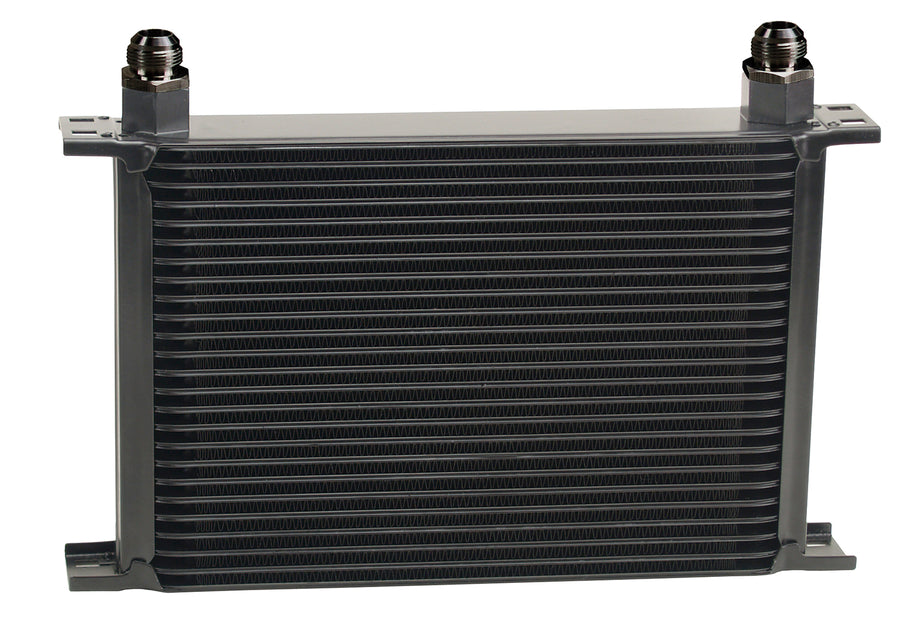

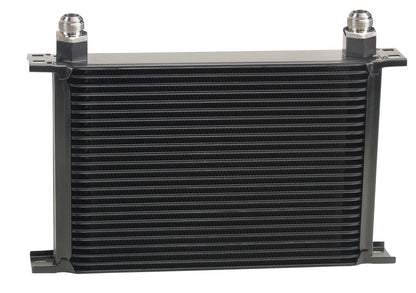

The Derale 25 Row Series 10000 Stack Plate Fluid Cooler is an all-aluminum, furnace-brazed heat exchanger from Derale's most efficient cooler line. The 25 row core is rated at 46,000 BTU per hour and can be plumbed to cool engine oil, transmission fluid, or fuel. It has -10AN O-ring female ports and ships with male -10AN aluminum O-ring adapter fittings, plus four integrated mounting brackets and a black powder-coat finish.
Specifications:
- Type: Series 10000 stack plate fluid cooler (cooler only)
- Rows: 25
- Cooling capacity: 46,000 BTU/hr
- Construction: all-aluminum, furnace-brazed
- Ports: -10AN O-ring female, male -10AN O-ring fittings included

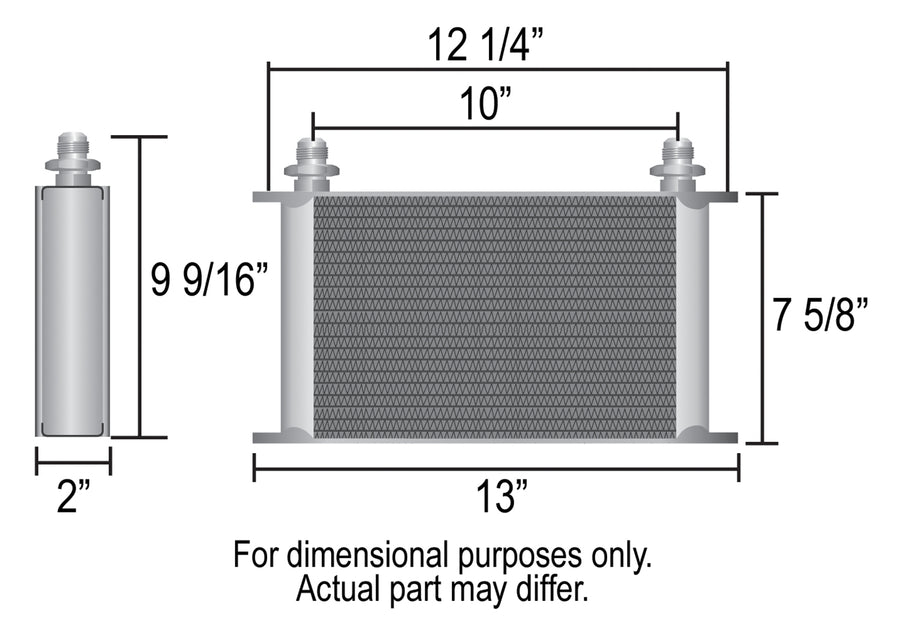

- Overall dimensions: 13 in W x 9-9/16 in H x 2 in D
- Mounting pattern: 12-1/4 in x 7-5/8 in, four integrated brackets
- Fluid capacity: 16 oz
- Finish: black powder coat
- Cools: engine oil, transmission fluid, or fuel
- Part number: 52510
FAQ
What can the Derale 52510 cooler be used for?
It can be plumbed to cool engine oil, transmission fluid, or fuel, and ships with male -10AN O-ring fittings.
How much cooling does it provide?
The 25 row Series 10000 stack plate core is rated at 46,000 BTU per hour.
What are the port sizes?
The cooler has -10AN O-ring female ports, and male -10AN aluminum O-ring adapter fittings are included.
How big is it?
It measures 13 inches wide by 9-9/16 inches tall by 2 inches deep, with four integrated mounting brackets on a 12-1/4 inch by 7-5/8 inch pattern.
