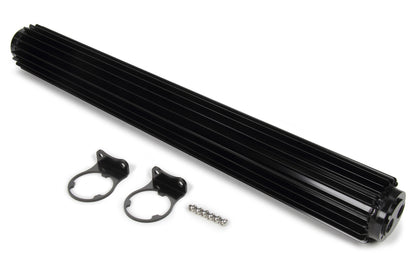

The Derale 25 inch Dual Pass Heat Sink Fluid Cooler is a long, slim aluminum cooler that uses external and internal fins to pull heat from the fluid as it makes two passes through the body. The black anodized finish and compact 3 inch diameter let it mount in tight areas, and removable brackets can be clocked for easier installation. Its universal design suits engine oil, transmission, power steering, or fuel cooling. It has 3/8 inch NPT inlet and outlet ports.
Specifications:
- Type: Dual pass heat sink fluid cooler
- Finish: Black anodized aluminum

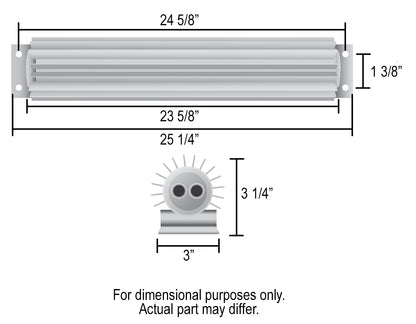

- Overall length: 25-1/4"
- Core length: 23-5/8"
- Diameter: 3"; height 3-1/4"
- Ports: 3/8" NPT inlet and outlet
- Fluid capacity: 28 oz
- Mounting: 24-5/8" x 1-3/8", removable clockable brackets
- Part number: 13287
FAQ
What can the Derale 13287 cooler be used for?
It is a universal dual pass heat sink cooler for engine oil, transmission fluid, power steering fluid, or fuel.
What ports does it have?
It has 3/8 inch NPT inlet and outlet ports.
How is it mounted?
It uses removable brackets that can be clocked to different positions for easier installation in tight spaces.
How much fluid does it hold?
It adds about 28 ounces of fluid capacity across its 25-1/4 inch length.
