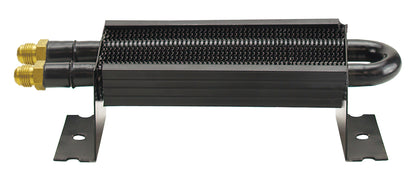

The Derale 2 Pass 8 inch Series 7000 Cooler is a compact copper and aluminum tube and fin cooler built with 1/2 inch copper tubing expanded into aluminum fins. The small two-pass core carries -6AN inlets and a black powder-coat finish, with extruded plastic fin guards protecting the edges. Mounting brackets are included at each end. It works well for fuel or power steering cooling and auxiliary transmission cooling where space is limited.
Specifications:
- Style: Tube and fin, Series 7000
- Passes: 2
- Construction: Copper tube with aluminum fins, extruded plastic fin guards
- Inlets: -6AN
- Finish: Black powder coat
- BTU rating: 1500
- GVW rating: 12,000
- Fluid capacity: 1.5 oz
- Overall dimensions (L x W x D): 8-7/8" x 2-5/8" x 1-3/4"
- Core length: 5-1/4"; mounting 7"
- Includes: Mounting brackets at each end
- Part number: 13310
FAQ
What is the Derale 13310 cooler used for?
It is a compact cooler for fuel or power steering cooling and auxiliary transmission cooling.
What inlets does it have?
It has -6AN inlets.
Does it come with brackets?
Yes. Mounting brackets are included at each end of the cooler.
How is it built?
It uses 1/2 inch copper tubing expanded into aluminum cooling fins, with a black powder-coat finish and plastic fin guards.
