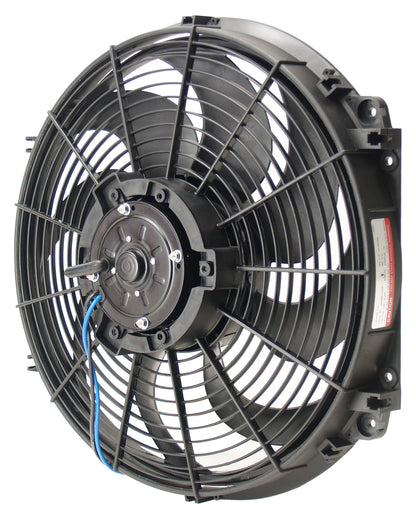

The Derale 16 inch Tornado Electric Puller Fan is the top of the Tornado line, moving about 2175 CFM at zero static pressure with a quiet, high-torque 225 watt motor that draws 18.4 amps. Its eight patented skewed blades run ultra-quiet, and the fan is reversible so it can be used as a puller behind the radiator or a pusher in front of it. This version includes the standard nylon mounting kit and illustrated installation instructions.
Specifications:
- Type: Tornado electric cooling fan
- Diameter: 16"
- Airflow: 2175 CFM at 0 static pressure
- Amp draw: 18.4 amps
- Motor: 225 watt high-torque
- Configuration: Puller, reversible (can be used as a pusher)
- Blades: Eight patented skewed blades, ultra-quiet

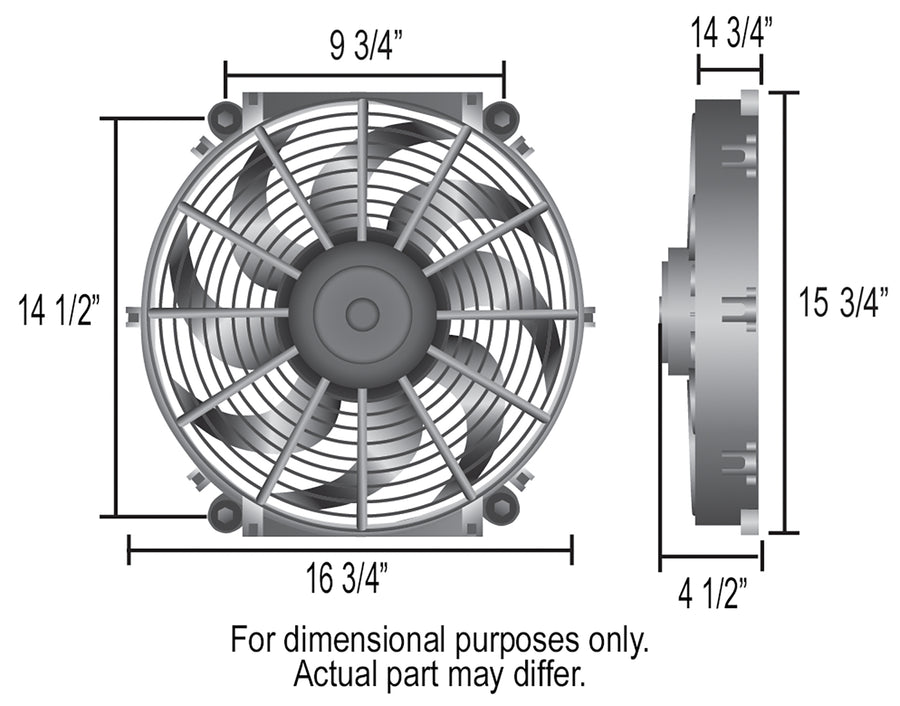

- Overall dimensions (W x H x D): 16-3/4" x 15-3/4" x 4-1/2" (blade depth 1-3/4")
- Mounting: 14-1/2" x 9-3/4"

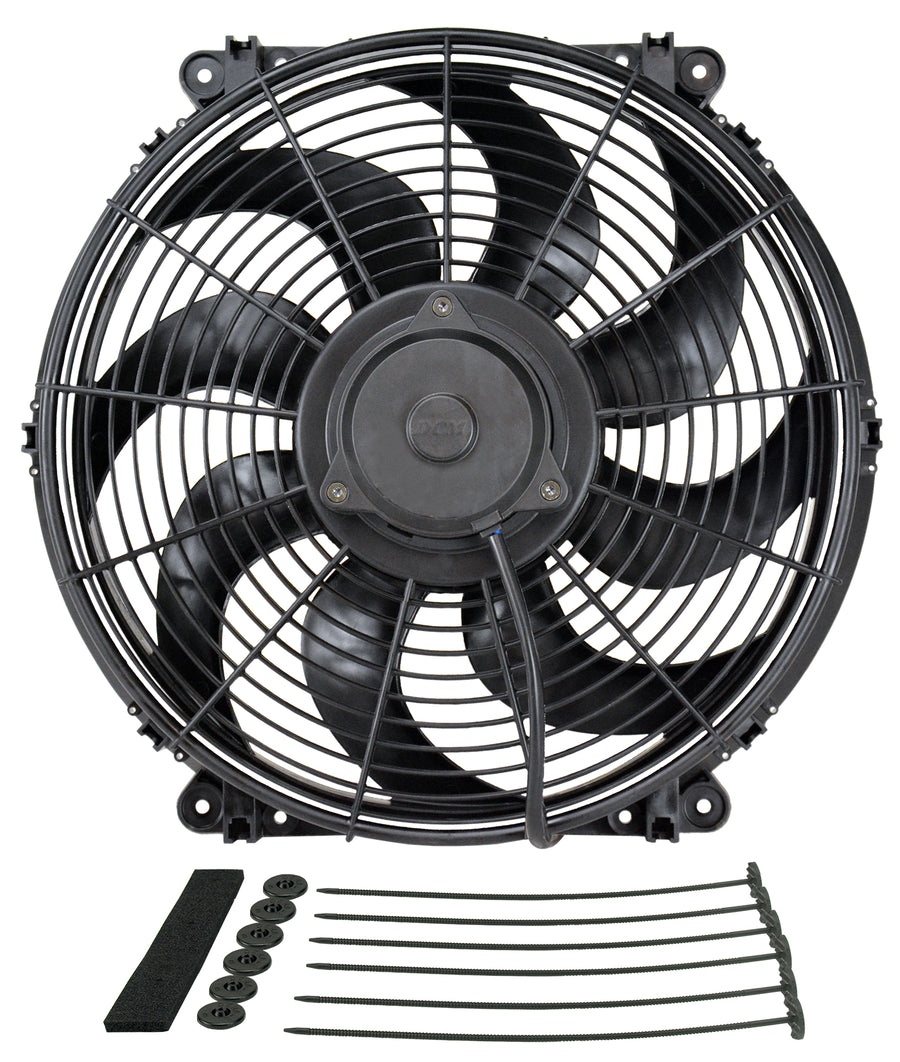

- Includes: Standard nylon mounting kit and instructions
- Part number: 16626
FAQ
How much air does the Derale 16626 fan move?
It moves about 2175 CFM at zero static pressure and draws 18.4 amps.
Can it be used as a pusher or puller?
It is reversible, so it can mount as a puller behind the radiator or a pusher in front of it.
What motor does it use?
It uses a quiet, high-torque 225 watt motor.
What is included?
It comes with the standard nylon mounting kit and illustrated installation instructions.
