The Derale 16 inch Dyno-Cool Curved Blade Electric Fan is a powerful low-profile cooling fan that moves 1980 CFM at zero static pressure while drawing 17.3 amps. The efficient curved blade design is reversible, so the fan can be set up as a pusher in front of the radiator or a puller behind it. Each fan comes with a complete mounting kit and wiring components for a straightforward universal install.
Specifications:
- Type: Curved blade electric cooling fan
- Diameter: 16"
- Airflow: 1980 CFM at 0 static pressure
- Amp draw: 17.3 amps
- Configuration: Reversible (pusher or puller)

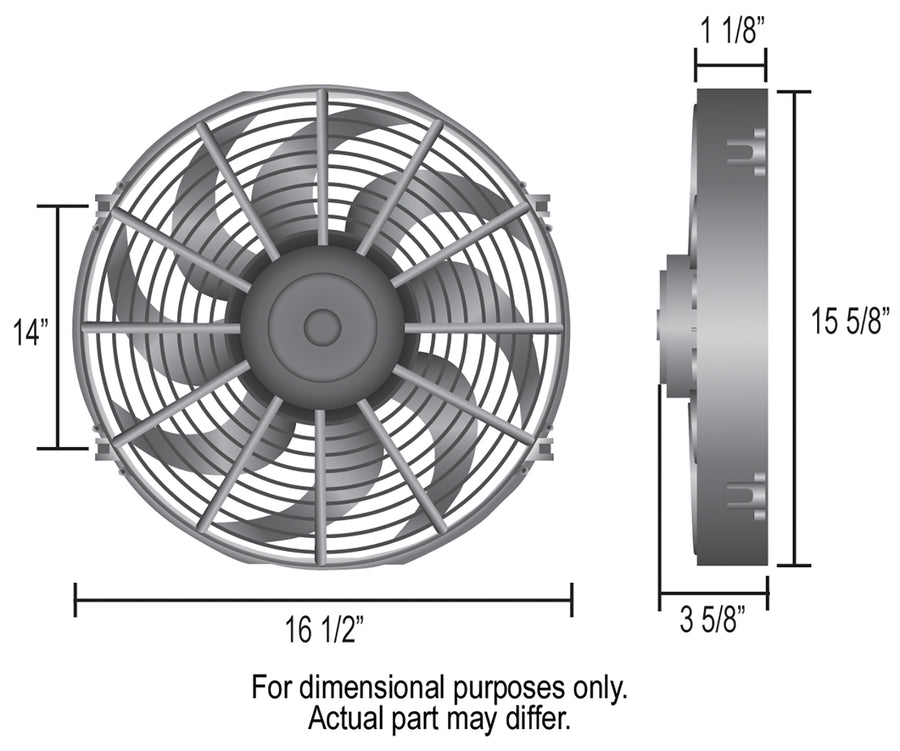

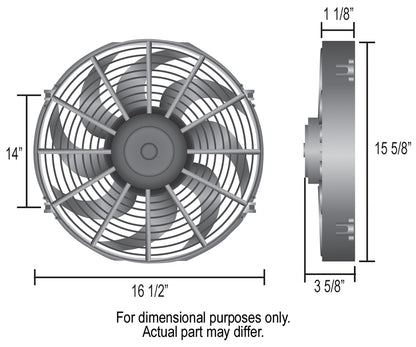

- Blade depth: 1-1/8"; overall depth 3-5/8"
- Overall size: 16-1/2" wide x 15-5/8" high
- Mounting pattern: 14-1/8" x 8-1/8"

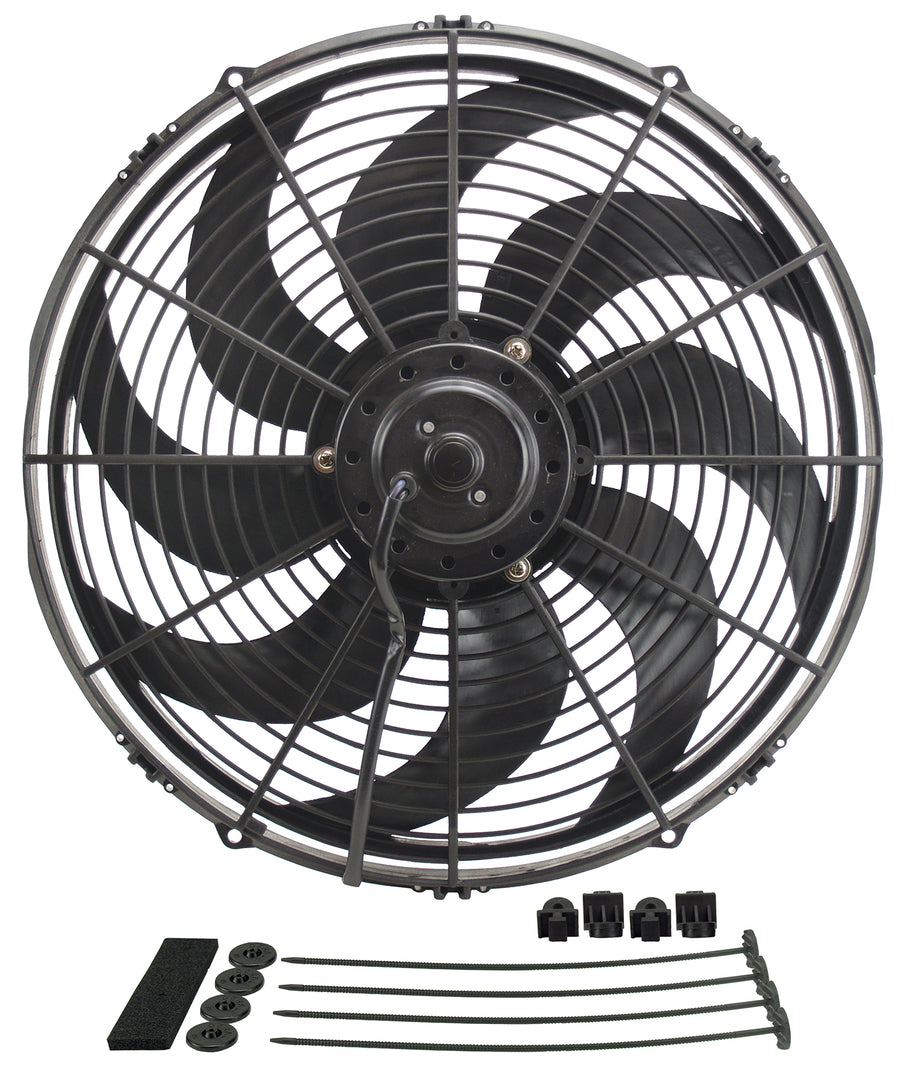

- Includes: Mounting kit (4 through-core plastic rods and clips, 4 foam pads, 4 mounting feet), lighted toggle switch, fuse, wiring
- Part number: 18916
FAQ
How much air does the Derale 18916 fan move?
It moves 1980 CFM at zero static pressure and draws 17.3 amps.
Can it be used as a pusher or a puller?
Yes. The fan is reversible, so it can mount in front of the radiator as a pusher or behind it as a puller.
What is included?
It comes with a mounting kit of four through-core plastic rods and clips, four foam pads and four mounting feet, plus a lighted toggle switch, fuse and wiring.
Is it a low-profile fan?
Yes. The blade depth is 1-1/8 inch with an overall depth of 3-5/8 inches, which suits tight spaces.
