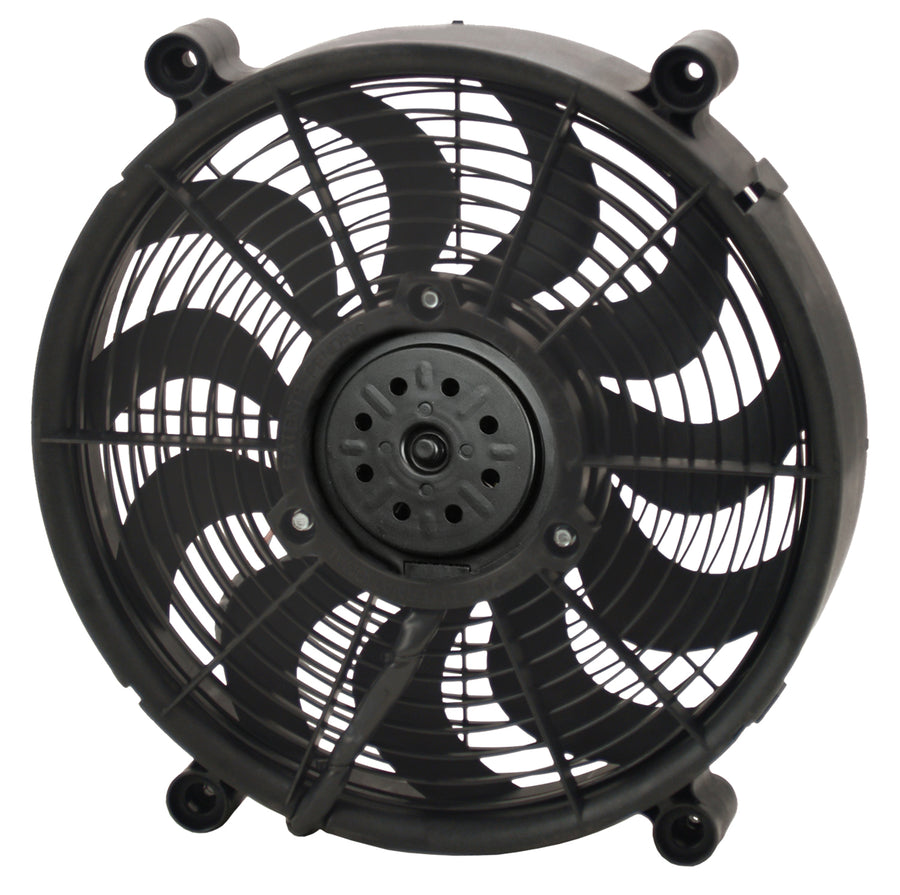

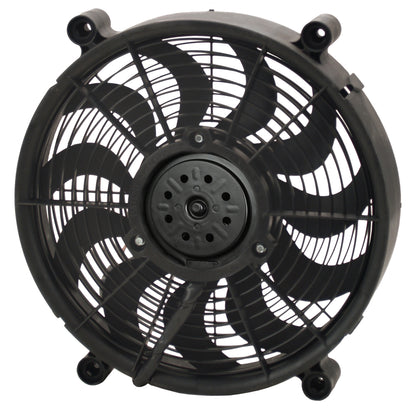

The Derale 16913 is a 14 inch high output single RAD electric fan supplied with a standard mounting kit. It is a two-speed fan, moving up to 2100 CFM on high and 1500 CFM on low, with draws of 22 and 16.2 amps. The slim design is 2-5/8 inches deep overall and mounts on the grill side as a pusher using the included standard rod-style mounting hardware. It can also be run as a puller when paired with a custom shroud, which is not included.
Specifications:
- Type: High output single RAD electric fan with standard mount kit
- Fan size: 14 inches
- Airflow: 2100 CFM high / 1500 CFM low (2-speed)
- Amp draw: 22 amps high / 16.2 amps low
- Orientation: Pusher (grill side); usable as a puller only with a custom shroud (not included)
- Overall dimensions: 14-1/2 in W x 14-1/2 in H x 2-5/8 in D (1-5/8 in core depth)
- Mounting: Four molded mounting points, 8-3/4 in x 13-1/4 in pattern
- Included: Fan and standard rod-style mounting kit
- Part number: 16913
FAQ
Does the Derale 16913 include a mounting kit?
Yes. It comes with Derale's standard rod-style mounting kit. Running it as a puller additionally requires a custom shroud, which is not included.
How much air does it move?
It is a two-speed fan that moves up to 2100 CFM on high and 1500 CFM on low.
Is the 16913 a pusher or puller fan?
It mounts as a pusher on the grill side with the included hardware and can be used as a puller only with a custom shroud (not included).
How thick is the fan?
It is 1-5/8 inches deep at the core with an overall depth of 2-5/8 inches.
