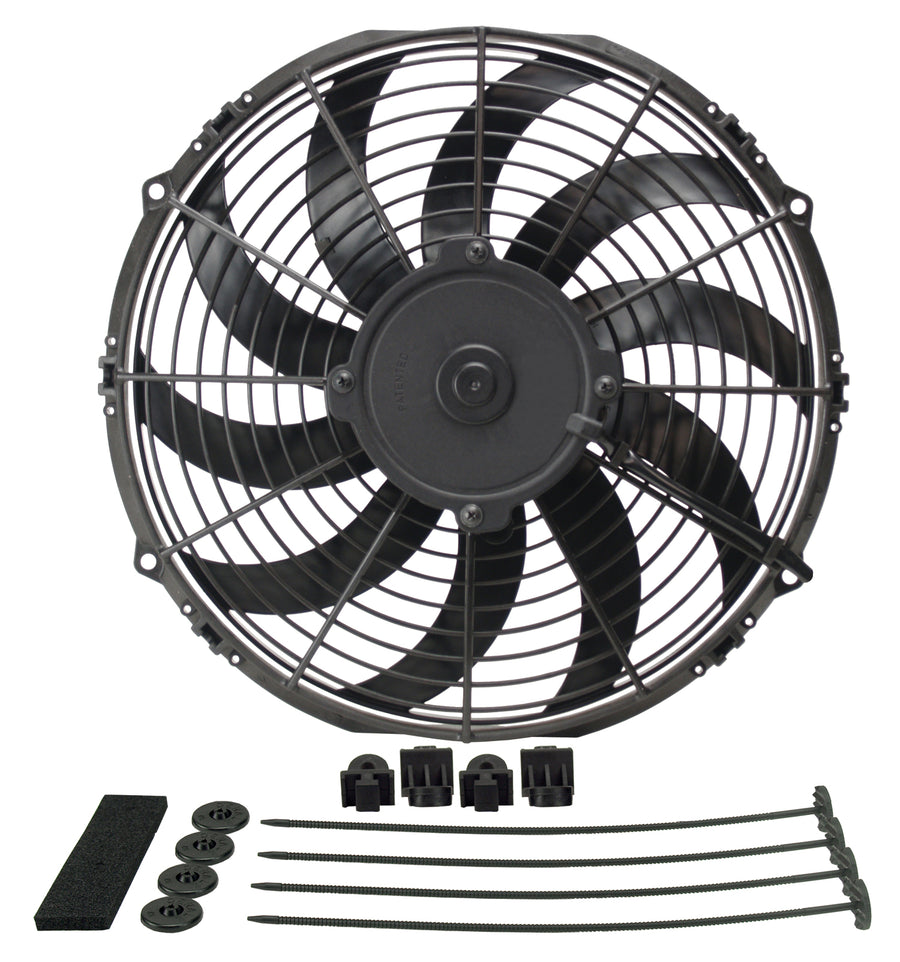

The Derale 12 inch High Output Curved Blade Electric Fan is an IP68-rated puller fan from the H.O. Extreme line. Its 10 thin curved blades move 1328 CFM, and the sealed IP68 motor is waterproof and dustproof. A low 2-7/16 inch profile at its widest point helps it fit tight spaces, and it comes with a mounting kit and installation instructions.
Specifications:
- Type: H.O. Extreme universal electric fan
- Diameter: 12 in
- Blade: 10 thin curved blades
- Airflow: 1328 CFM
- Orientation: puller only (engine side)
- Rating: IP68 waterproof and dustproof

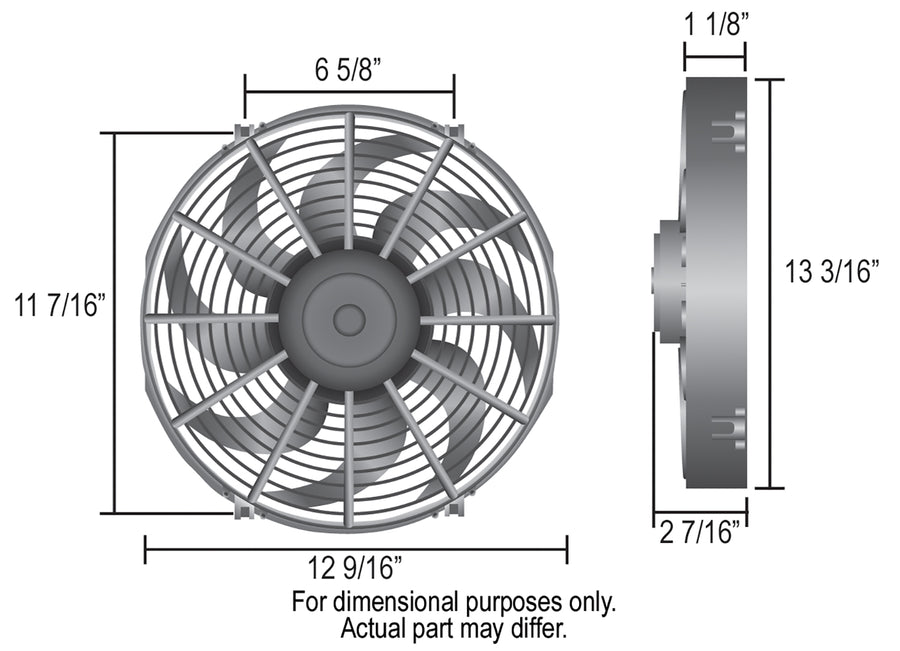

- Profile: 2-7/16 in at widest point
- Included: mounting kit and installation instructions
- Part number: 16112
FAQ
How much air does the Derale 16112 move?
1328 CFM, using 10 thin curved blades.
Is it a puller or pusher?
It is a puller only, mounted on the engine side of the radiator.
Is it weatherproof?
Yes, it has a sealed IP68 motor that is waterproof and dustproof.
Will it fit a tight space?
It has a low 2-7/16 inch profile at its widest point and includes a mounting kit and instructions.
