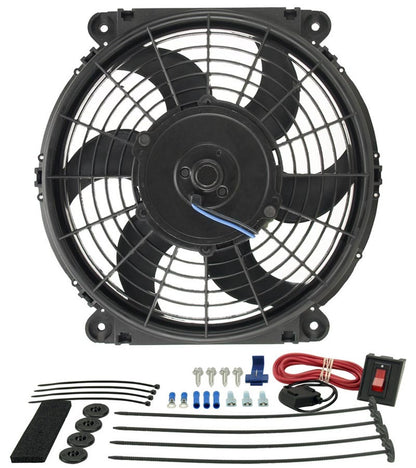

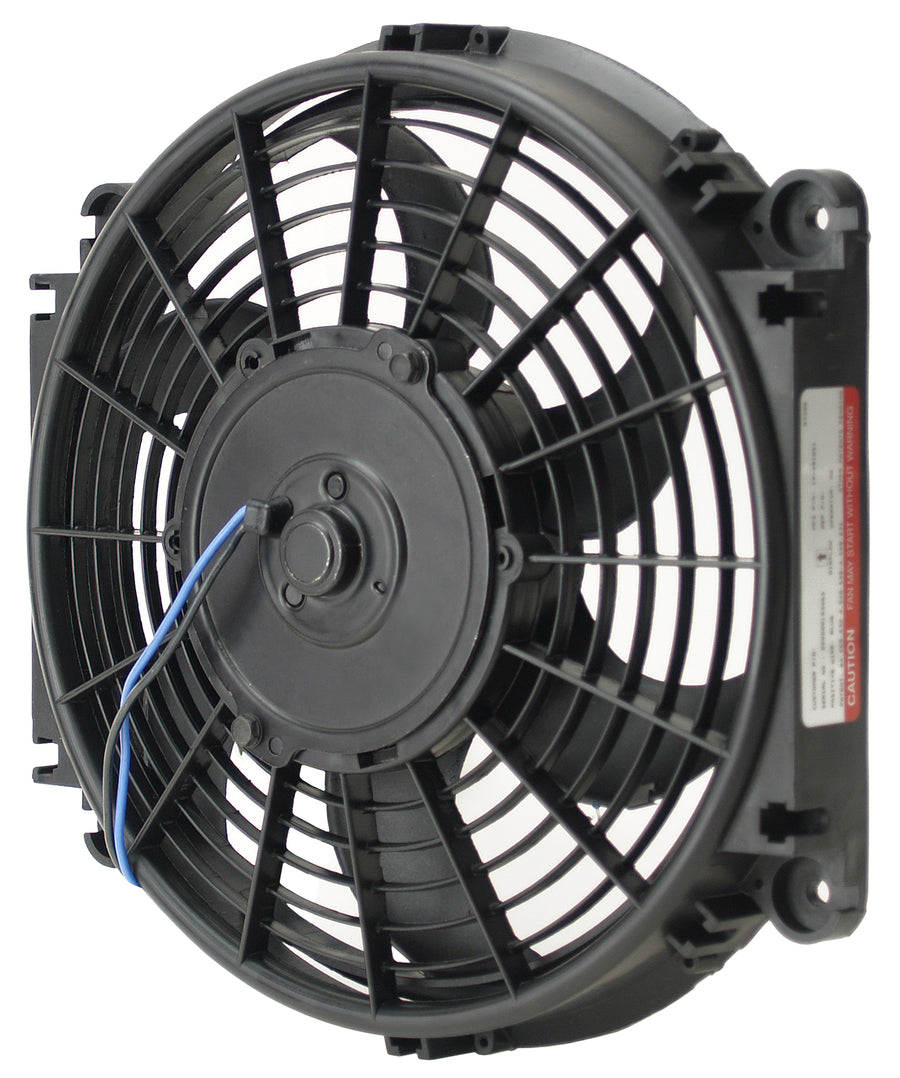

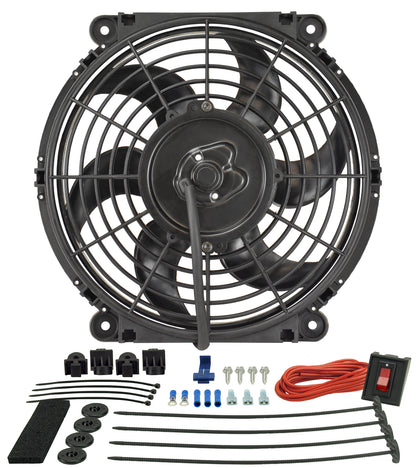

The Derale 10 inch Tornado Electric Fan is a compact puller fan that moves 650 CFM while drawing only 5.3 amps, and it is reversible so it can also be used as a pusher. This Premium Mounting Kit adds everything needed for a manual switch installation, including a lighted toggle switch, wiring connections, and all mounting hardware.
Specifications:
- Type: Tornado universal electric fan (premium kit)
- Diameter: 10 in
- Airflow: 650 CFM at 0 static pressure
- Orientation: puller, reversible to pusher
- Amp draw: 5.3 A
- Overall dimensions: 11-7/16 in W x 10-7/8 in H x 2-1/2 in overall depth (1-5/16 in fan depth)
- Mounting pattern: 9-7/8 in x 6-7/8 in
- Included: lighted toggle switch, wiring connections, all mounting hardware
- Part number: 16510
FAQ
What is the Derale 16510 fan?
It is a 10 inch Tornado electric puller fan that moves 650 CFM, and it is reversible for pusher use.
How much current does it draw?
5.3 amps.
What does the premium kit include?
A lighted toggle switch, wiring connections, and all mounting hardware for a manual switch installation.
How much space does it need?
It measures 11-7/16 inches wide by 10-7/8 inches tall with a 2-1/2 inch overall depth and a 9-7/8 inch by 6-7/8 inch mounting pattern.
