Dart engineered the Big M to be the strongest, most reliable, and easiest to build big block on the market. The Dart Big M2 is designed from the ground up as a true racing engine block which can be used with standard off the shelf big block components. The Big M2 is cast from premium high strength Iron and beefed up in all the critical areas. A competition oiling system ensures adequate lubrication to the main bearings at high RPM.

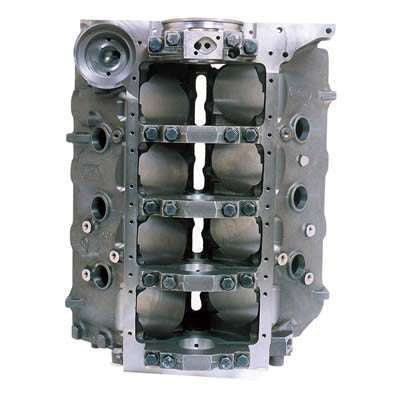

Dart Dart Big M2 Iron Big Block Chevy Blocks 31213454
Specifications:
| Description_ASC | Dart Big M2 Iron Big Block Chevy Blocks |
| Description_DEF | Engine Block |
| Description_DES | Big M2 Iron Big Block Chevy Blocks |
| Description_EXT | Dart Big M2 Iron Big Block Chevy Blocks |
| Description_FAB | Standard 9.800 and tall 10.200 deck heights |
| Description_FAB | Standard 4.250, 4.500, 4.560 or 4.600 bore sizes with siamesed extra thick cylinder walLS2 to resist cracking and improve ring seal (minimum .300 thick with 4.625 bore) |
| Description_FAB | Uses +.300 tall Gen VI style lifters. Modification for Gen IV style available |
| Description_FAB | 4-bolt main bearing caps in steel or Ductile Iron have splayed outer bolts for extra strength |
| Description_FAB | Lifter valley head stud bosses prevent blown head gaskets |
| Description_FAB | Dual oil pan bolt patterns fit standard and notched oil pans |
| Description_FAB | Parts kit included |
| Description_FAB | True priority main oil system lubricates the main bearings before the lifters. |
| Description_FAB | Our stepped main oil gallery (9/16 to 1/2 to 7/16) increases the flow of oil to the crank at high RPM, and our front oil crossover eliminates internal oil leaks around the distributor shaft |
| Description_INV | BBC Ir/Blk 10.200-STD-4.500 |
| Description_LAB | Big M Chevy Big Block Iron Block - 4.500 in. Bore, 10.200 in. Deck |
| Description_MKT | Dart engineered the Big M to be the strongest, most reliable, and easiest to build big block on the market. The Dart Big M2 is designed from the ground up as a true racing engine block which can be used with standard off the shelf big block components. The Big M2 is cast from premium high strength Iron and beefed up in all the critical areas. A competition oiling system ensures adequate lubrication to the main bearings at high RPM. |
| Description_SHO | Engine Block |
| Industry | Automotive |
| Title | Big M Chevy Big Block Iron Block - 4.500 in. Bore, 10.200 in. Deck |
| Camshaft Location | Standard |
| Cylinder Bore Diameter | 4.500 |
| Deck Height | 10.200 |
| Engine Block Weight | 250-280 |
| Freeze Plug Type | Press Fit |
| Camshaft Lifter Bore | 0.842 |
| Main Bearing Type | Standard |
| Main Cap Type | Steel |
| Material | 220 BHN Cast Iron |
| Rear Main Seal Type | 2-Piece |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Engine Type | ICE |
| Product Type | Engine Block |
| Engine Block Material | 220 BHN Cast Iron |
| Make | Chevrolet |
| Engine | Big Block |
| Make - Web | Chevrolet |
| Engine - Web | Big Block |
| Engine Block Series | Big M |
| Title - Web | Big M Chevy Big Block Iron Block - 4.500 in. Bore, 10.200 in. Deck |
| Category Hierarchy | Blocks>Big Block Chevy>BIG M2 Blocks |
| Rear Main Seal | 2-Piece |
| EBAY Category ID | 33613 |
