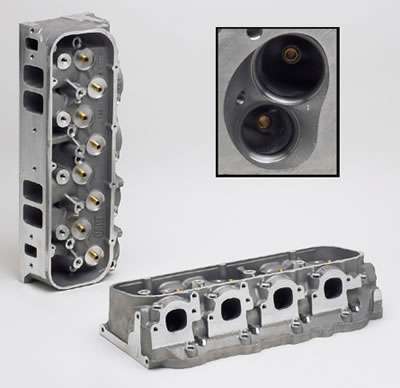

Dart Dart Pro1 Aluminum Big Block Chevy Cylinder Heads 19300030
Regular Price
$1,558.34
Maximum street or marine performance, bracket racing, heads up and super classes. Over 7,000 RPM, 540+ cubic inches. The PRO1 24 Deg 345cc cylinder head is for uncompromising performance and racing applications which favor high RPM power over low end flexibility. Best for big cubic inch, high RPM use. Rolled valve angles, improved spark plug location, extra long intake valves, raised exhaust ports, and fast burn chambers. Works with off the shelf pistons, valve train components, and intake manifolds. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.
Dart Dart Pro1 Aluminum Big Block Chevy Cylinder Heads 19300030
Specifications:
| Description_ASC | Dart Pro1 Aluminum Big Block Chevy Cylinder Heads |
| Description_DEF | Engine Cylinder Head |
| Description_DES | Pro1 Aluminum Big Block Chevy Cylinder Heads |
| Description_EXT | Dart Pro1 Aluminum Big Block Chevy Cylinder Heads |
| Description_FAB | Heads are sold individually |
| Description_INV | BBC PRO1-345cc-2.300X1.880 Bare |
| Description_LAB | Pro1 Chevrolet Big Block Head - 345.00 CC Port, 121.00 CC Chamber |
| Description_MKT | Maximum street or marine performance, bracket racing, heads up and super classes. Over 7,000 RPM, 540+ cubic inches. The PRO1 24 Deg 345cc cylinder head is for uncompromising performance and racing applications which favor high RPM power over low end flexibility. Best for big cubic inch, high RPM use. Rolled valve angles, improved spark plug location, extra long intake valves, raised exhaust ports, and fast burn chambers. Works with off the shelf pistons, valve train components, and intake manifolds. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals. |
| Description_SHO | Cylinder Head |
| Industry | Automotive |
| Title | Pro1 Chevrolet Big Block Head - 345.00 CC Port, 121.00 CC Chamber |
| CNC Ported | Yes |
| Combustion Chamber Volume | 121.00 |
| Exhaust Valve Diameter | 1.880 |
| Intake Valve Diameter | 2.300 |
| Material | RMR Cast Aluminum Alloy |
| Port Volume | 345.00 |
| Valve Angle | 24 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Engine Type | ICE |
| Valve Spring Type | Bare |
| Product Type | Engine Cylinder Head |
| Make | Chevrolet |
| Engine | Big Block |
| Make - Web | Chevrolet |
| Engine - Web | Big Block |
| Cylinder Head Series | Pro1 |
| Title - Web | Pro1 Chevrolet Big Block Head - 345.00 CC Port, 121.00 CC Chamber |
| Category Hierarchy | Heads>Big Block Chevy>Pro1 |
| Cylinder Head Material | RMR Cast Aluminum Alloy |
| Intake Runner Volume | 345.00 |
| EBAY Category ID | 33617 |
